2 - 1 2

C h a p t e r 2 : B I O S s e t u p

[Manual] and [CHS] Settings

Manually enter the number of cylinders, heads and sectors per track for the
drive. Refer to the drive documentation or the drive label for this information.

After entering the IDE hard disk drive information into BIOS, use a disk
utility, such as FDISK, to partition and format new IDE hard disk drives. This
is necessary so that you can write or read data from the hard disk. Make
sure to set the partition of the Primary IDE hard disk drives to active.

After making your selections on this sub-menu, press the key to
return to the Main menu. The Main menu displays the hard disk drive field
with your configuration.

Access Mode [Auto]

Select the hard disk drive type from this field. When Logical Block
Addressing (LBA) is enabled, the 28-bit addressing of the hard drive is
used without regard for cylinders, heads, or sectors. Note that LBA Mode is
necessary for drives with more than 504 MB storage capacity. Select [CHS]
to make manual entries for configuring the fields below.
Configuration options: [CHS] [LBA] [Large] [Auto]

Capacity

Displays the hard disk drive capacity in MB or GB. This item is non-configurable.

Cylinder

Configures the number of cylinders. Refer to the drive documentation to
determine the correct value.

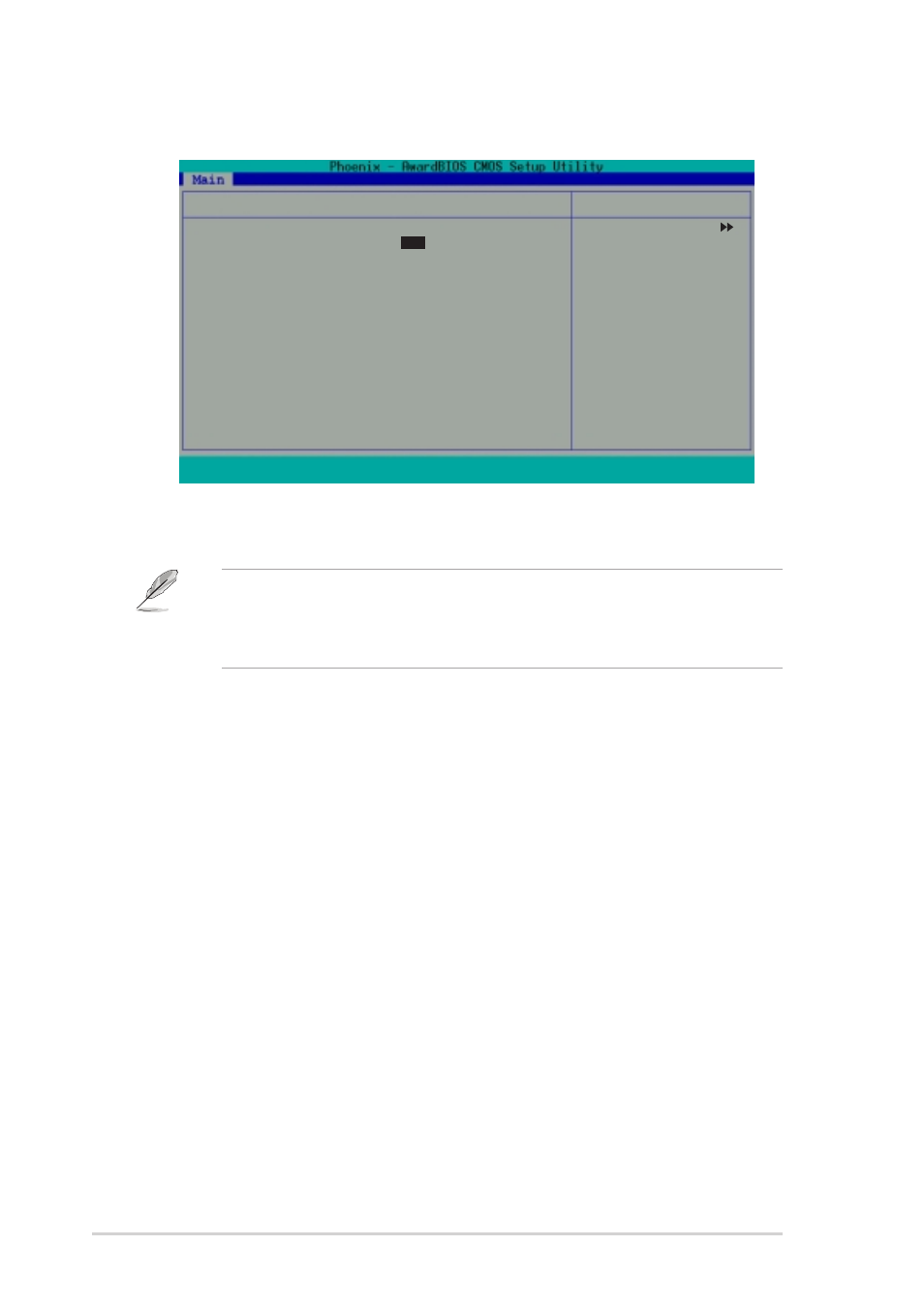

Primary IDE Master

[Manual]

Access Mode

[CHS]

Capacity

40020 MB

Cylinder

[19158]

Head

[ 16]

Sector

[ 255]

PIO Mode

[ Auto]

UDMA Mode

[ Auto]

Transfer Mode

UDMA 4

: Help

↑↑↑↑↑↓↓↓↓↓

: Select Item

-/+

: Change Value

: Setup Defaults

ESC : Exit

→←

: Select Menu

Enter : Select Sub-menu

F10 : Save and Exit

Select Menu

Item Specific Help

Press [Enter] to
select sector
addressing method.
