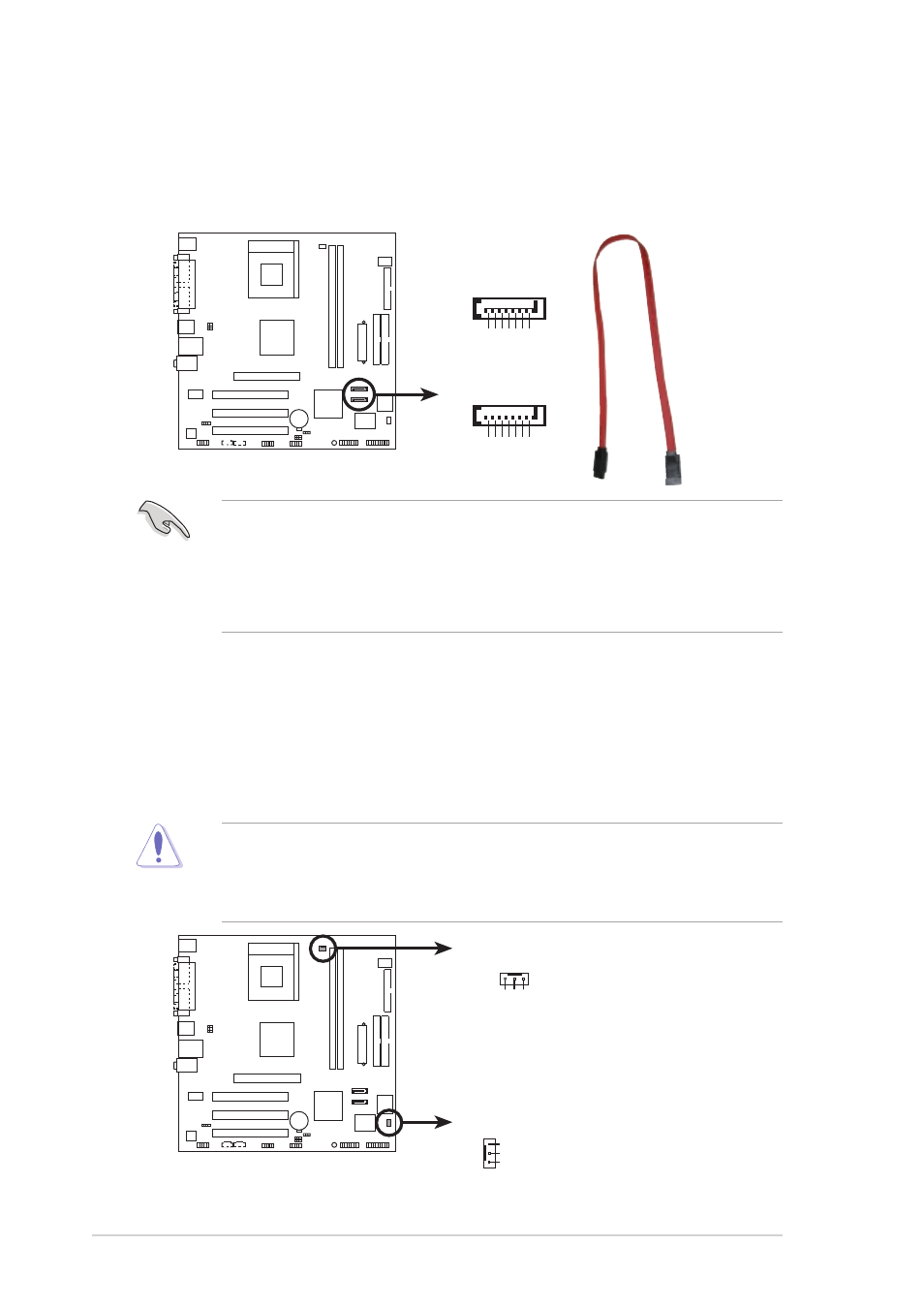

3 . 3 . 3 . 3 . 3 . S e r i a l A T A c o n n e c t o r s ( 7 - p i n S A T A 1 , S A T A 2 ) S e r i a l A T A c o n n e c t o r s ( 7 - p i n S A T A 1 , S A T A 2 ) S e r i a l A T A c o n n e c t o r s ( 7 - p i n S A T A 1 , S A T A 2 ) S e r i a l A T A c o n n e c t o r s ( 7 - p i n S A T A 1 , S A T A 2 ) S e r i a l A T A c o n n e c t o r s ( 7 - p i n S A T A 1 , S A T A 2 )
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives.
4 . 4 . 4 . 4 . 4 . C P U a n d c h a s s i s f a n c o n n e c t o r s C P U a n d c h a s s i s f a n c o n n e c t o r s C P U a n d c h a s s i s f a n c o n n e c t o r s C P U a n d c h a s s i s f a n c o n n e c t o r s C P U a n d c h a s s i s f a n c o n n e c t o r s
( 3 - p i n C P U _ F A N , C H A _ F A N )
( 3 - p i n C P U _ F A N , C H A _ F A N ) ( 3 - p i n C P U _ F A N , C H A _ F A N ) ( 3 - p i n C P U _ F A N , C H A _ F A N ) ( 3 - p i n C P U _ F A N , C H A _ F A N )
The fan connectors support cooling fans of 350 mA~740 mA (8.88 W
max.) or a total of 1 A~2.22 A (26.64 W max.) at +12V. Connect the
fan cables to the fan connectors on the motherboard, making sure that
the black wire of each cable matches the ground pin of the connector.
I m p o r t a n t n o t e s o n S e r i a l A T A I m p o r t a n t n o t e s o n S e r i a l A T A I m p o r t a n t n o t e s o n S e r i a l A T A I m p o r t a n t n o t e s o n S e r i a l A T A I m p o r t a n t n o t e s o n S e r i a l A T A
• You must install Windows ® 2000 SP4, Windows ® XP SP1, Windows ®
2003, or newer OS versions before using Serial ATA hard disk drives.
• The Serial ATA interface is not supported when using Windows ®
98SE/Me operating system.
Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! Do not place jumper caps on the
fan connectors!
