2-3
Model 5861E
Section 2 Installation Installation and Operation Manual
X-TMF-5861E-MFM-eng
Part Number: 541B107AAG
November, 2008
PIN NO. FUNCTION COLOR CODE
1 Cmd. Common (Command Pot "CCW") • Black
2 0-5 Volt Signal Output White
3 Supply Common Red
4 Valve Off • Green
5 +15 Vdc Supply Orange
6 -15 Vdc Supply Blue
7 Valve Test Point/Purge • Wht/Blk
8 Cmd. Input or Cmd. Pot "S" • Red/Blk
9 Supply Voltage Common Grn/Blk
10 0-5 Volt Signal Common Org/Blk
11 +5 Volt Reference Output (Command Pot "CW") • Blu/Blk
12 Valve Override • Blk/Wht
13 Not Used Red/Wht
14 Chassis Ground Grn/Wht
15 Remote Transducer Input* • Blu/Wht
* Factory Activated Option.
• These connections are used for the 5850E and 5851E Mass Flow Controllers.
Make no connections to these pins.
NOTE:
1. Cable shield tied to chassis ground
in meter connector. Make no
connection on customer end.
2. All power leads must be connected
to power supply.

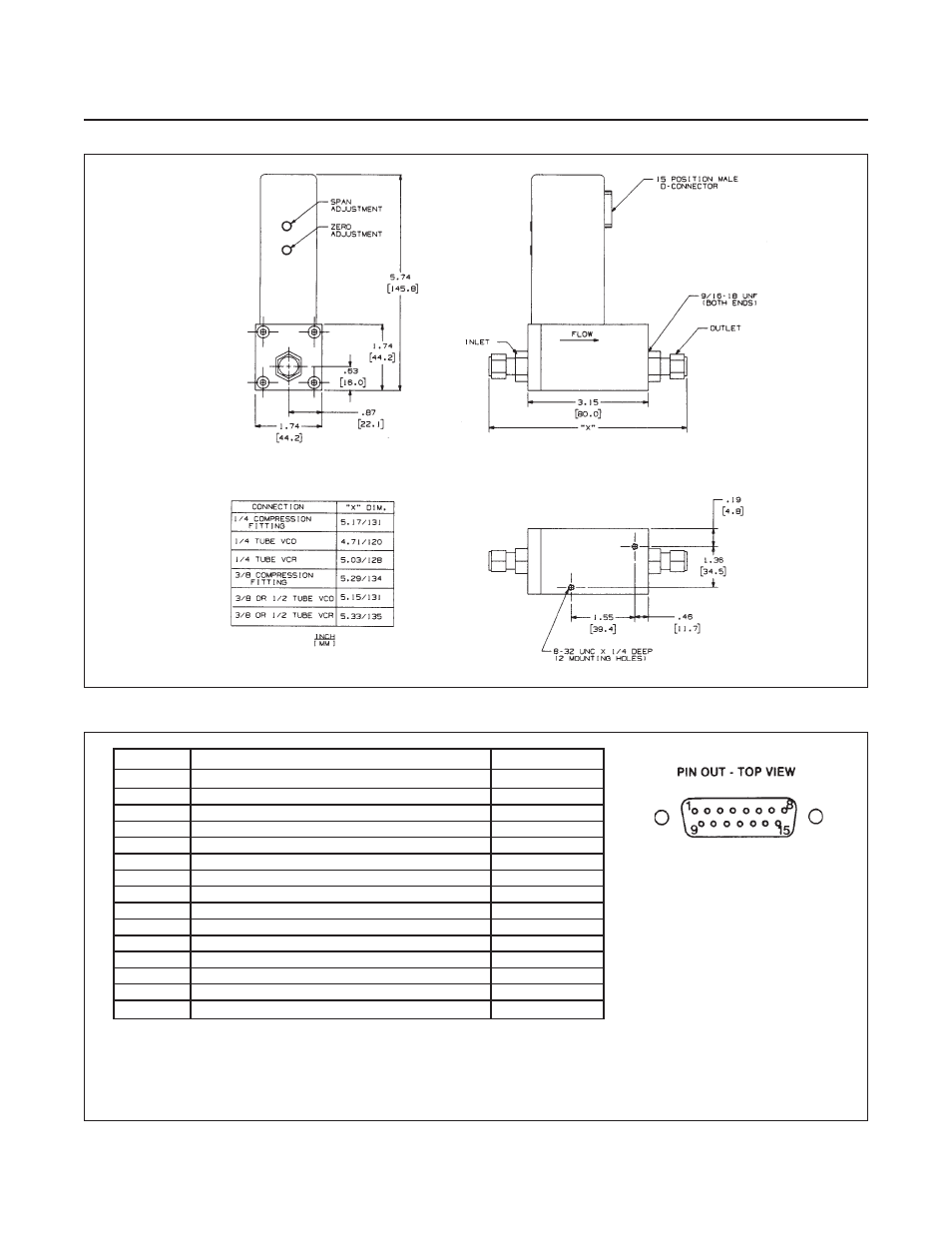

Figure 2-1 Model 5861E Dimensions
Figure 2-2 "D" Type Connector Pin Arrangement
