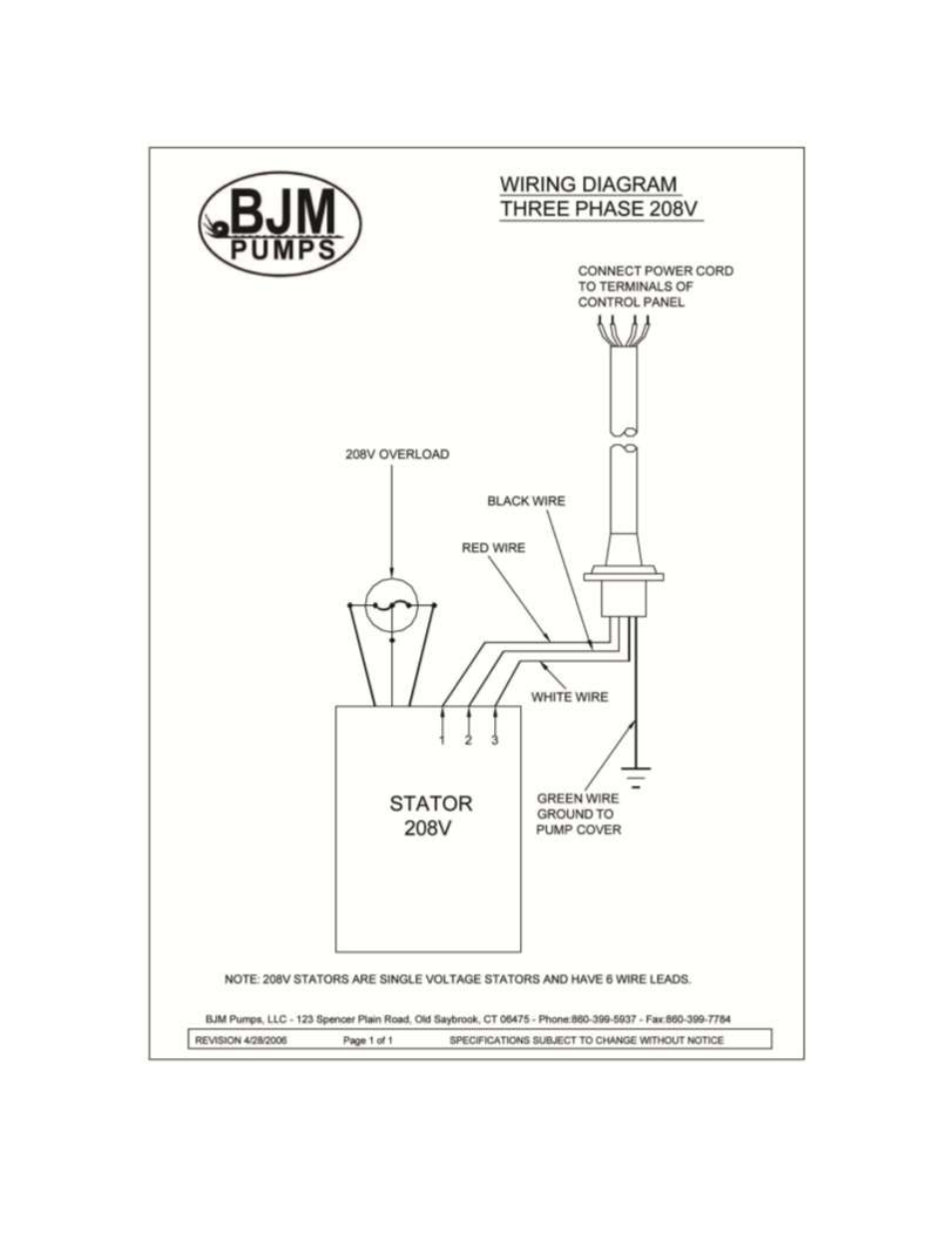

THREE PHASE WIRING DIAGRAMS

208V

MODELS SK08C, SKX08CSS, SK15C, SKX15CSS, SK22C, SKX22CSS, SK37C,

SKX37CSS, SK55C, SKX55CSS,

This manual is related to the following products:

SK750C SK1500C SK08C SK15C SK22C SK37C SK55C SK75C SK110C SK150C SKX750CSS SKX1500CSS SKX08CSS SKX15CSS SKX22CSS SKX37CSS SKX55CSS SKX75CSS SKX110CSS SKX150CSS
