29

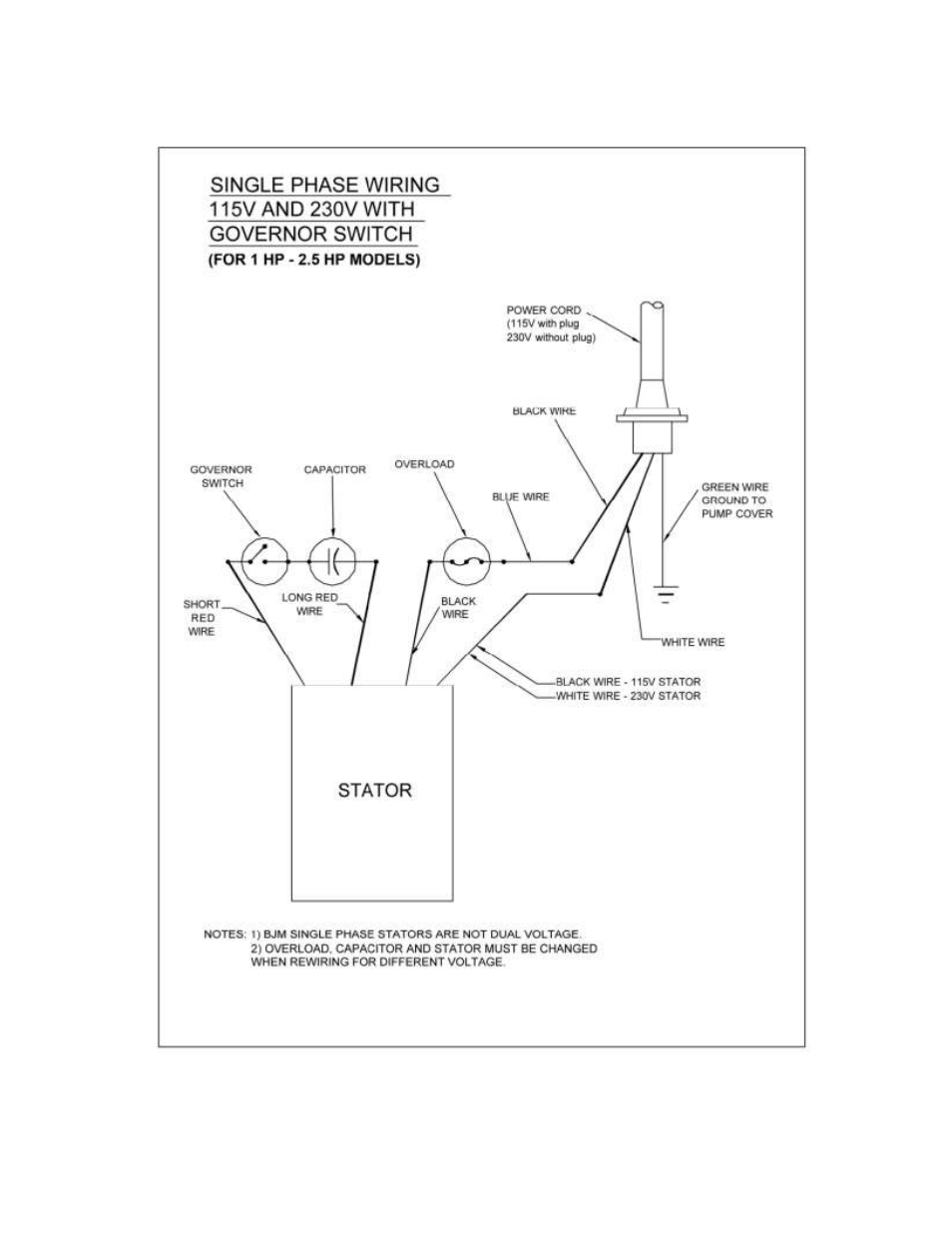

SINGLE PHASE WIRING DIAGRAM 115V & 230V W/GOVERNOR SWITCH

MODELS SK750C, SKX750CSS, SK1500C, SKX1500C

This manual is related to the following products:

SK750C SK1500C SK08C SK15C SK22C SK37C SK55C SK75C SK110C SK150C SKX750CSS SKX1500CSS SKX08CSS SKX15CSS SKX22CSS SKX37CSS SKX55CSS SKX75CSS SKX110CSS SKX150CSS
