Models s750c, sx750css, s1500c, sx1500css – BJM Pumps SX75CSS-575T User Manual

Page 25

background image

25

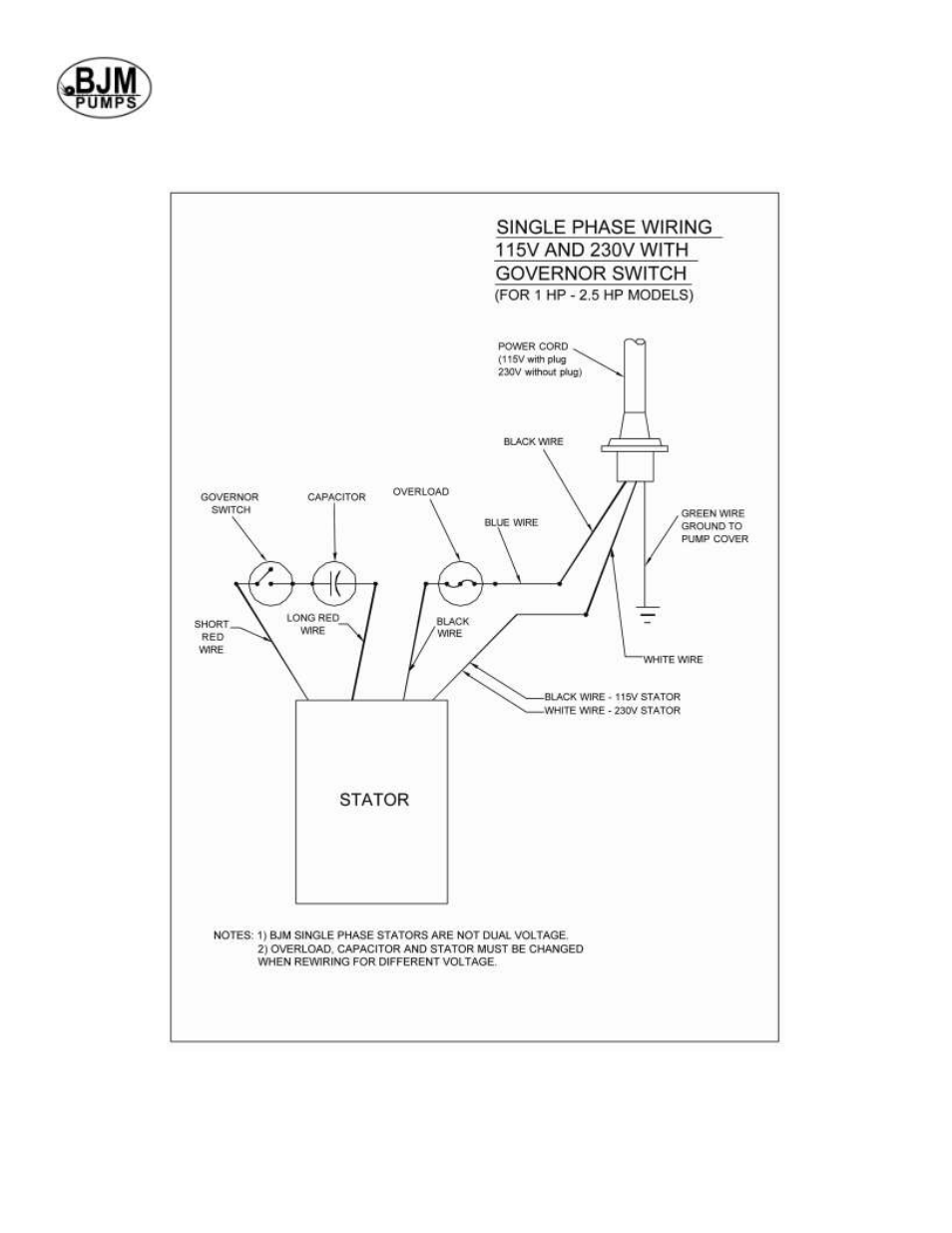

SINGLE PHASE WIRING DIAGRAM 115V & 230V W/GOVERNOR SWITCH

MODELS S750C, SX750CSS, S1500C, SX1500CSS
