To automatically operate a non-automatic three phase pump, a control panel is
required. Follow the instructions provided with the panel to wire the system. For
automatic three phase pumps see automatic three phase wiring diagram.

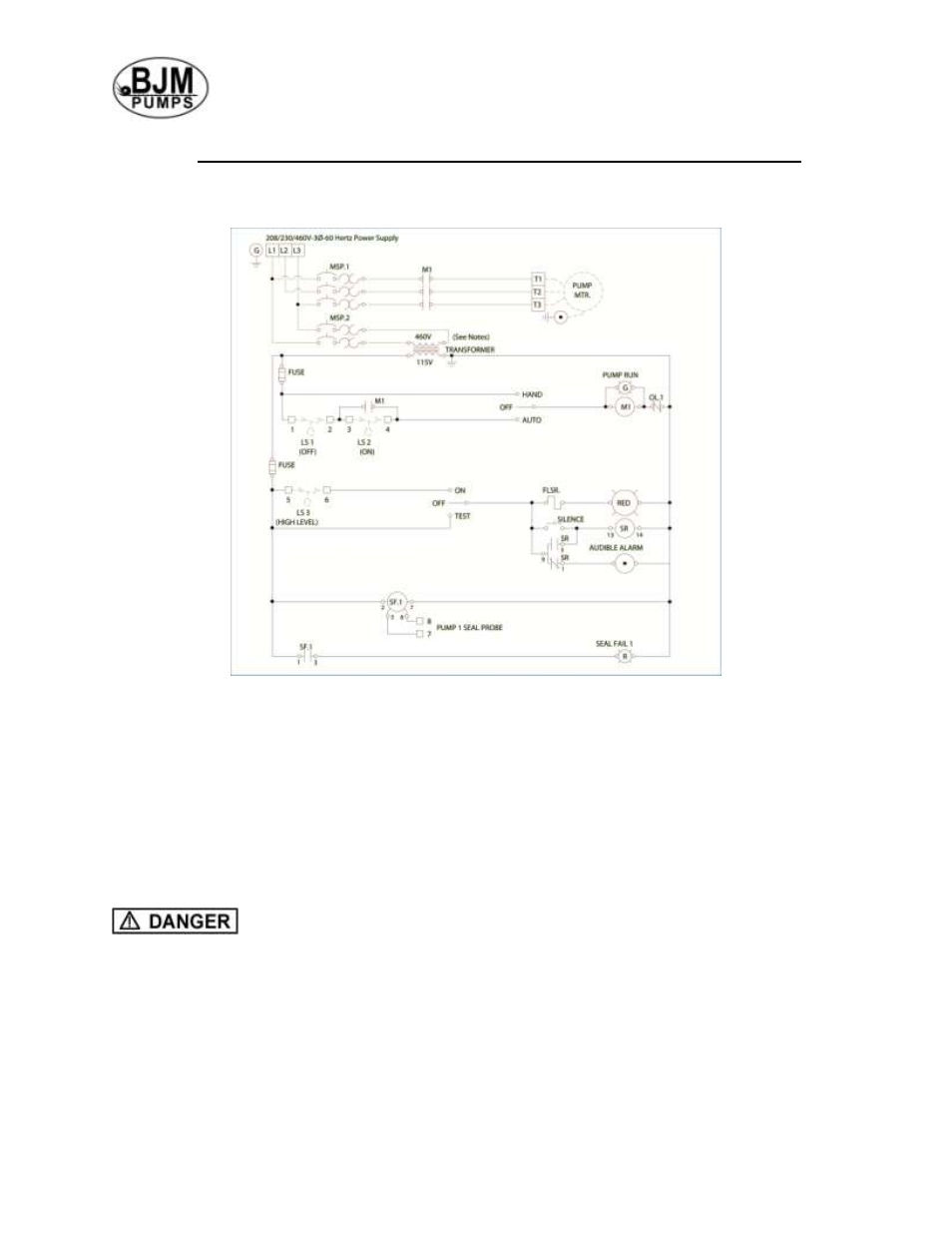

Typical 3 phase Auto Control 1
Before installing a pump, check the pump rotation to insure that wiring has been
connected properly to power source, and that the green lead of power cable (See wiring
diagram), is connected to a valid ground, momentarily energize the pump, observing the
directions of kick back due to starting torque. Rotation is correct if kick back is in the
opposite direction of rotation arrow on the pump casing. If rotation is not correct,
switching of any two power leads other than ground will provide the proper rotation.
DO NOT PLACE HANDS IN PUMP SUCTION WHILE CHECKING
MOTOR ROTATION. TO DO SO WILL CAUSE SEVERE PERSONAL INJURY.
Three phase pumps have integral motor overload protection. It is recommended that all
three phase pumps using a motor starting device also incorporate motor overload
protection. Pumps must be installed in accordance with the National Electrical Code
and all applicable local codes and ordinances. Pumps are not to be installed in locations
classified as hazardous in accordance with National Electrical Code, ANSI/NFPA 70.
- SX75CSS-460T SX75CSS-230T SX55CSS-575T SX55CSS-460T SX55CSS-230T SX55CSS-208T SX37CSS-575T SX37CSS-460T SX37CSS-230T SX37CSS-208T SX22CSS-575T SX22CSS-460T SX22CSS-230T SX22CSS-208T SX15CSS-575T SX15CSS-460T SX15CSS-230T SX15CSS-208T SX1500CSS-230 SX750CSS-230 SX750CSS-115 SX08CSS-575T SX08CSS-460T SX08CSS-230T SX08CSS-208T S75C-575T S75C-460T S75C-230T S55C-575T S55C-460T S55C-230T S55C-208T
