Stopping, Typical automatic dewatering installation – BJM Pumps SX75CSS-575T User Manual
Page 11

11
STOPPING
To stop the pump (manual and automatic mode), unplug it from the power source, turn
off the breaker, or turn the power source off (generator).

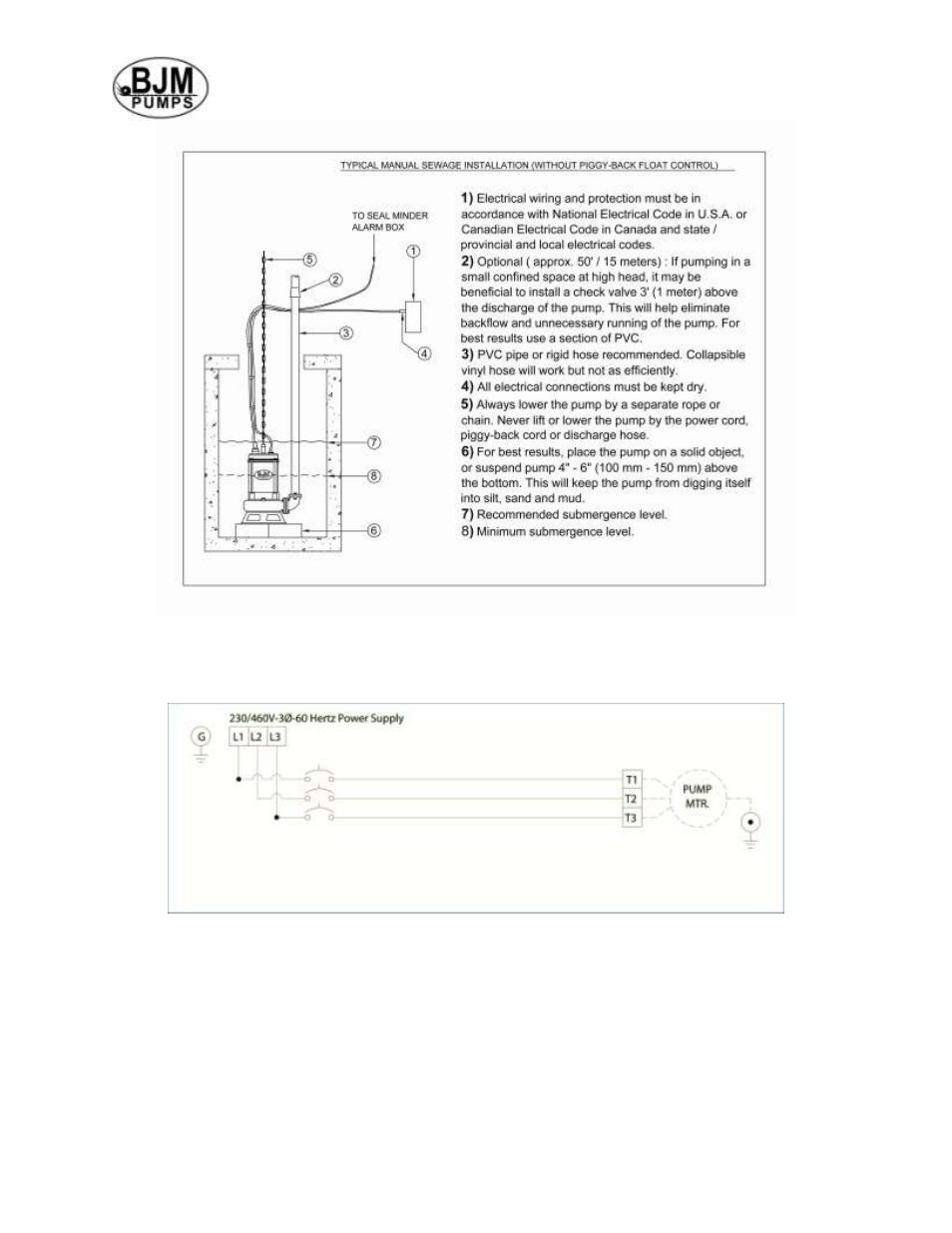

Typical 3 phase manual control 1
TYPICAL AUTOMATIC DEWATERING INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
Float switches (wired into the pump motor or piggy-back style) are available from the
factory as an option.
Note: 208V, 230V, 460V & 575V pumps do not have a plug installed.
This manual is related to the following products:
- SX75CSS-460T SX75CSS-230T SX55CSS-575T SX55CSS-460T SX55CSS-230T SX55CSS-208T SX37CSS-575T SX37CSS-460T SX37CSS-230T SX37CSS-208T SX22CSS-575T SX22CSS-460T SX22CSS-230T SX22CSS-208T SX15CSS-575T SX15CSS-460T SX15CSS-230T SX15CSS-208T SX1500CSS-230 SX750CSS-230 SX750CSS-115 SX08CSS-575T SX08CSS-460T SX08CSS-230T SX08CSS-208T S75C-575T S75C-460T S75C-230T S55C-575T S55C-460T S55C-230T S55C-208T
