13 14
NOTE: Make sure you don’t have any missing parts before you make the installation.
Incorrect installation could void the warranty if instructions are not followed correctly.
Please call technical for assistance if you are unsure about any procedures.
Identification

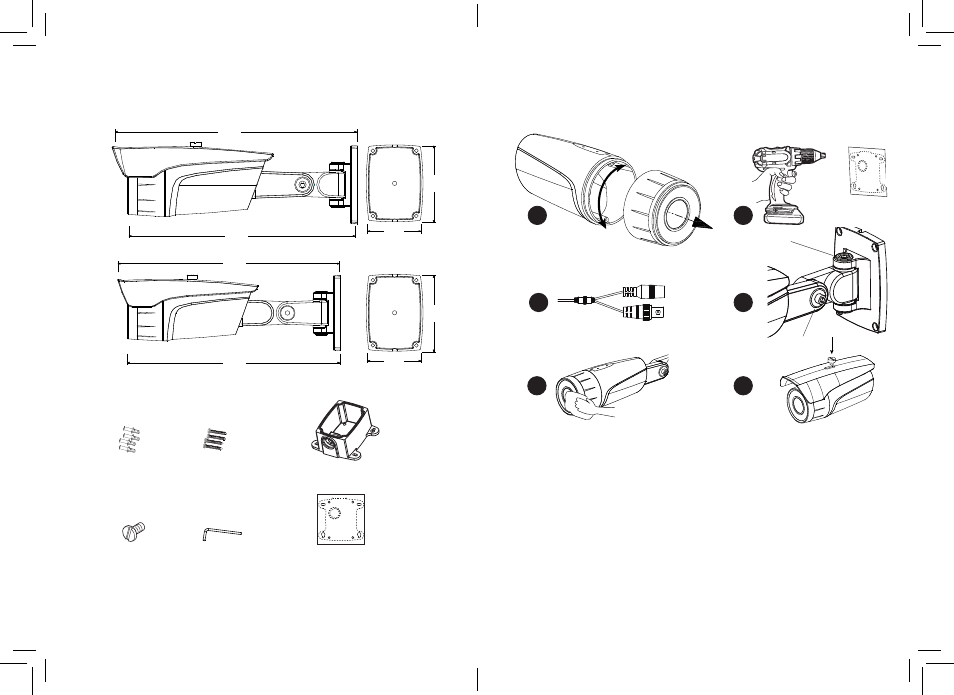

Mechanical Drawing
Installation
Installation information
(General overview)
1 Remove front of camera this is just to make it easier to adjust zoom & focus later.
2 Use drill template (F) as to guide to drill and attach camera to surface as required.
If you have optional junction box (E), be sure to mark the correct hole positions.
3 With camera attached you can now connect power, adjust focus/zoom.
Junction box option cable will connect inside.
4 Usng the (D) L-Hex tool you position left-right up/down and lock into place.
5 Adjust zoom-focus to suite, re-attach front section as removed in step 1.
And clean surface with a soft lint free cloth.
6 Now put the sunvisor on using the (C) nut provided in the accessories.
Check IR LEDs are working by covering the photocell of camera with
your thumb, the IR LEDs will give a faint red glow.
(Don’t look at IR LEDs for long periods of time, as you could damage your eyes)
Accessories
(D) L-Hex tool
47x17mm
(B) Fitting Screws
PA4 x 35mm 4pcs (E) Optional Junction Box
(F ) Drill Hole template
(Junction box holes also)
(A) Wall Plugs
S8 x 30mm 4pcs
(C) Sunshield Screw
M3 x5mm
1
4 3
2
5 6
311 mm
12 in
292 mm
11 1/2"
69 mm
2 1/2"
99 mm
4"
69 mm
2 1/2"
99 mm
4"
294 mm
11 1/2"
282 mm
11"
Pan Left - Right adjustment
View Tilt Angle adjustment
