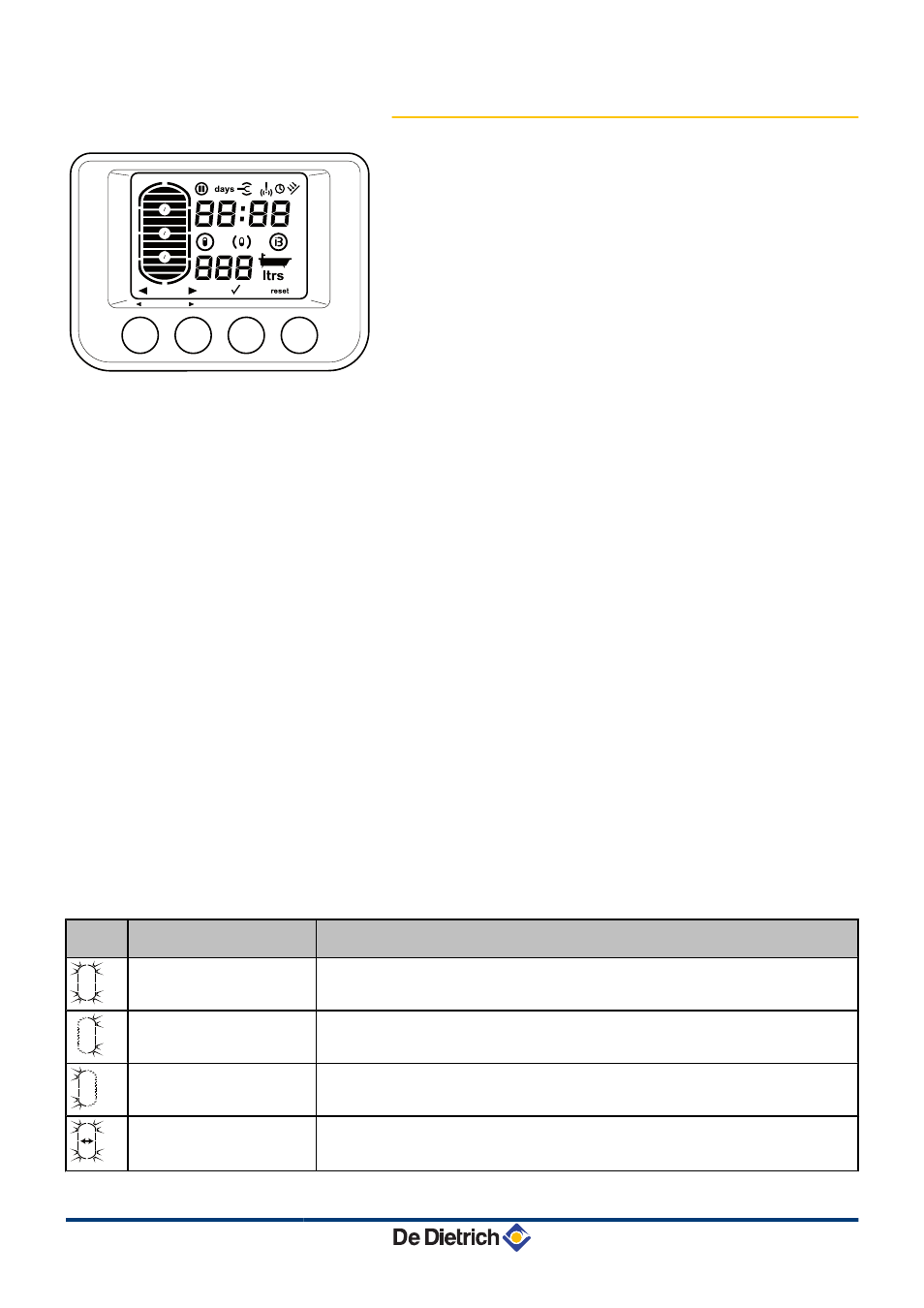

3.2.2. Description of the display
! Quantity of domestic hot water available (depending on
the set point input)
J Parameter settings
! Alarm
K Comfort period active or Clock programming
88[8
8 Display of the date (day:month) or the time (hour:minutes)
depending on the selected menu
1 2 3 4 5
6 7 Display of the day of the week (1=Monday, 2=Tuesday,
etc.)
888 Digital display
L Number of baths available (40 °C)
X Quantity of water (litres)
( Reduces set values
) Increases set values
B Confirm key
V Reset the control system after a breakdown
M Automatic mode or Comfort mode
% Eco mode
W Boost mode
> C Holiday mode
M + W Boost function active via the HP/HC inlet
% + W Boost function active via the HP/HC inlet
> C
+ W Boost function active via the HP/HC inlet
n DHW production mode indicator
The main display indicates the domestic hot water production mode.
Display Domestic hot water
production
Description
C003487-B
Heat pump The 2 segments of the tank flash simultaneously when domestic hot water production
is handled by the heat pump
C003484-B
Electrical back-up The right-hand segment of the tank flashes when domestic hot water production is
handled by electrical back-up
C003485-B
Hydraulic additional heating The left-hand segment of the tank flashes when domestic hot water production is
handled by hydraulic back-up (Version EH)
C003486-A
Heat pump + Electrical back-
up + Hydraulic additional
heating
The 2 segments of the tank flash alternately when domestic hot water production is
handled by the heat pump, by electrical back-up and by hydraulic backup (EH version)
C003186-H
1
2
3
4
5
6
7
1 4
3 4
1 2
MENU MODE
TWH 200E TWH 300E TWH 300EH 3. Description
