Quick Start Guide, 61200821E1-13A, July 2006

Technical Support 1-888-4ADTRAN (1-888-423-8726)

Copyright © 2006 ADTRAN, All Rights Reserved

For more detailed documentation, visit us online at

www.adtran.com

.

Quick Start Guide

®

NetVanta 3448 Router

P/N 1200821E1

E

NABLE

T

ELNET

A

CCESS

The following steps create a password of adtran for Telnet access. By default, Telnet access is
enabled with a password of password.

1.

Verify that the prompt of your unit displays (config)#.

2.

Enter line telnet 0 4 to change the configuration parameters for the Telnet sessions.

3.

Enter login to initiate Telnet access.

4.

Enter password adtran to change the login password for the Telnet sessions.

5.

Enter exit to return to the Global Configuration mode.

6.

Verify that the prompt of your unit displays (config)#.

7.

Enter do write memory to save the current configuration.

C

ONFIGURE

Y

OUR

A

PPLICATION

More detailed documentation for configuring your ADTRAN unit is provided on the ADTRAN OS
System Documentation
CD included in your shipment. For more detail on hardware setup, refer to
the appropriate NIM Quick Start Guides and the Hardware Installation Guide. For more detail on
configuring your system, refer to the ADTRAN Operating System (AOS) Command Reference
Guide
, configuration guides, and technical support notes.

Important: For additional details on product features, specifications,
installation, and safety, refer to the appropriate Hardware Installation
Guide on the ADTRAN OS System Documentation CD shipped with the
base unit and available online at www.adtran.com.

C

ONSOLE

P

INOUTS

Pin

Name

Description

1

DCD

Data Carrier Detect (output)

2

RD

Receive Data (output)

3

TD

Transmit Data (input)

4

DTR

Data Terminal Ready (input)

5

SG

Signal Ground

6

Tied to Pin 1 (output)

7

Unused

8

Tied to Pin 1 (output)

9

Unused

E

THERNET

P

INOUTS

(ETH 0/1, ETH 0/2, E

THERNET

S

WITCH

P

ORTS

1

TO

8)

Pin

Name

Description

With PoE Upgrade
(Switch Ports 1 to 8 only)

1

TX1

Transmit Positive

PoE Negative Rail

2

TX2

Transmit Negative

PoE Negative Rail

3

RX1

Receive Positive

PoE Positive Rail

4, 5

Unused

Unused

6

RX2

Receive Negative

PoE Positive Rail

7, 8

Unused

Unused

N

ET

V

ANTA

3448 R

EAR

P

ANEL

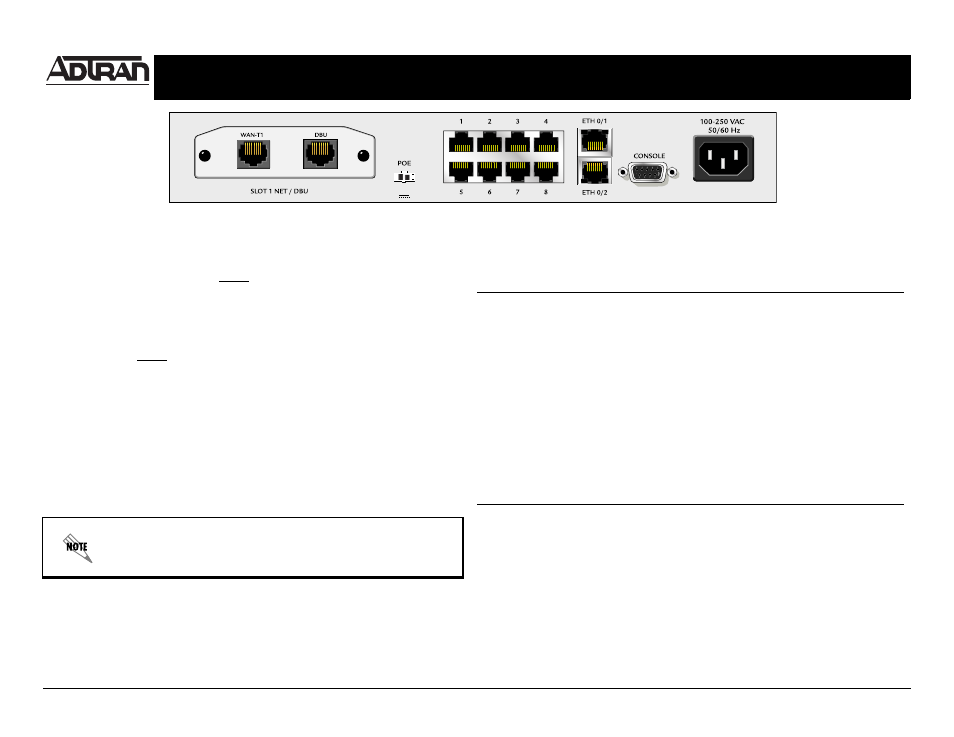

L

AYOUT

45 V
