ADT-APS-6R Instruction PN 50935:B 7/21/00
23
Appendix C - Unimode II & Unimode 2020
Connecting the ADT-APS-6R to an MPS-24A
Make the following connections as shown in the figure below.
• Connect primary power from TB1 to MPS-24A terminal block
TB1, Pin 5( NEUT ) and Pin 7( HOT )
• Connect secondary power from TB3 to MPS-24A terminal block
TB2, Pin 1(+) and Pin 2(–)
• Connect trouble input from J3 to MPS-24A terminal block P5

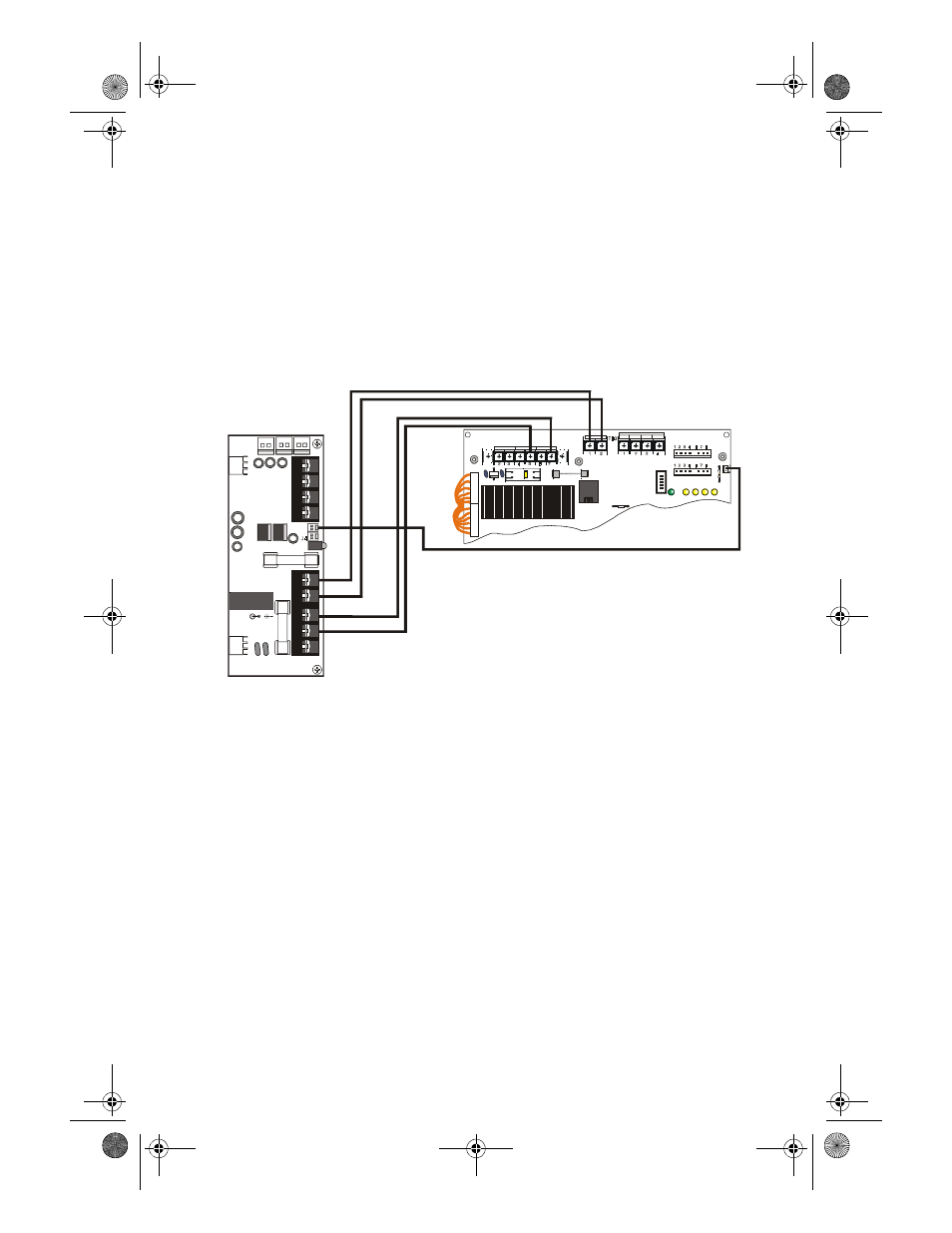

Figure 14 Wiring to MPS-24A
P4
P3
JP5
TB1
TB2
F1 CB1
P5
R27
P2 EA RT H G ND A C NE U T RA L A C HOT
+ 24 R CO MM ON +24 COMMON
POW ER L IM IT E D BAT + BAT -
J2
J9
J3
J1
TB2
JP3 JP2
A
P
S
-6R
to
MP
S
-24A
.cdr
