2. Installation Wiring Applications
14
ADT-APS-6R Instruction PN 50935:B 7/21/00
Wiring Applications
This section contains instructions for wiring the ADT-APS-6R assembly
as follows:
• Connecting the ADT-APS-6R to an ICM-4/ICE-4 module
• Supplying notification appliance power to a FCM module
Connecting the ADT-APS-6R to an ICM-4/ICE-4 Module
All four (4) NACs on the ICM-4 are powered from the ADT-APS-6R
output circuit 2 (J2) and the four (4) NACs on the ICE-4 are powered from
circuit 1 (J1). The NACs share the total 3A available from each circuit.
Typical connections for wiring:

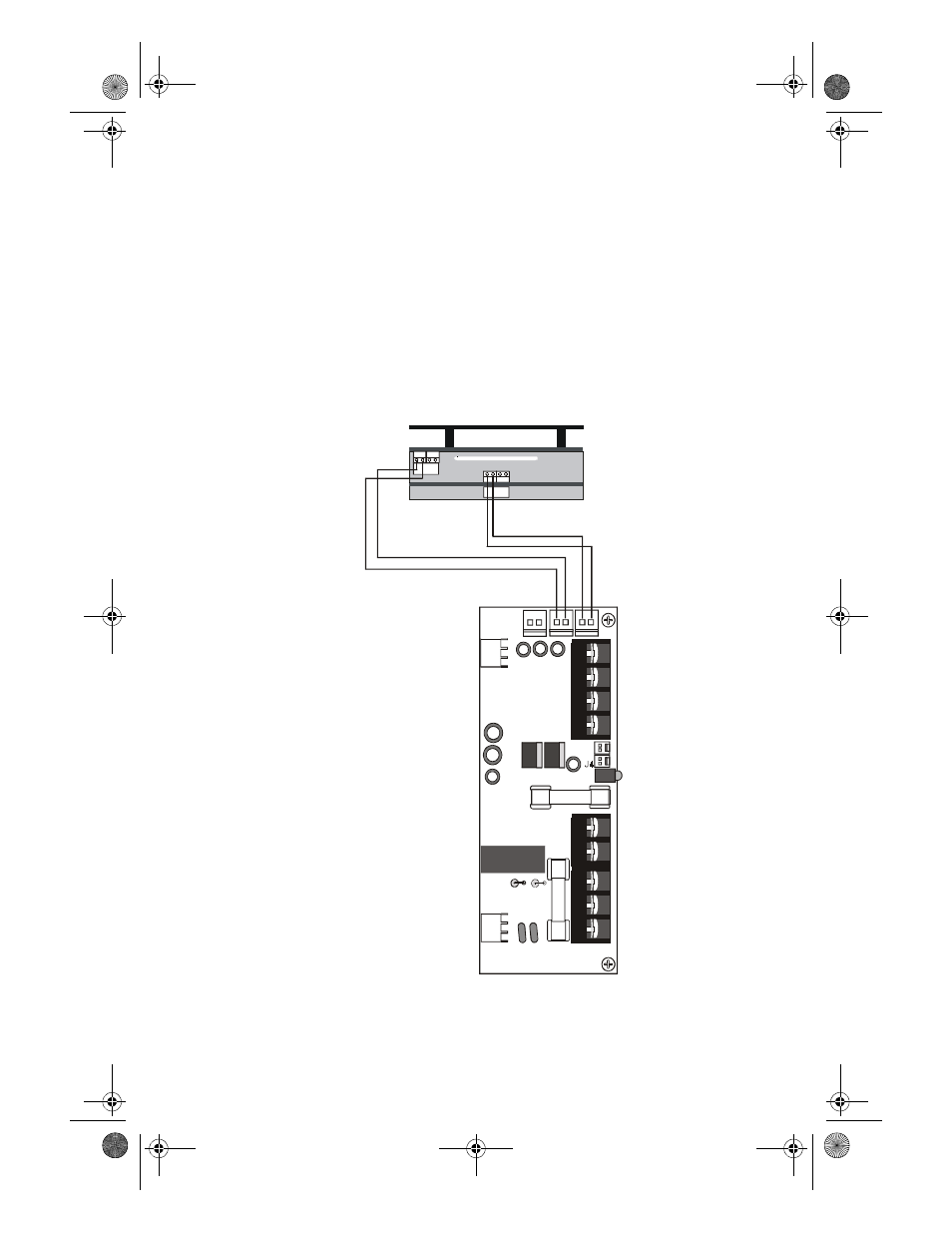

Figure 8 Typical ADT-APS-6R Wiring to an ICM-4/ICE-4 Module
J 6 5 J
J 6 5 J
J2
J9
J3
J1
TB2
JP3 JP2
ICM-4
ICE-4
Auxiliary Power
Harness
PN 71091
Black Blue
Blue
Black
ADT-APS-6R
AP
S-
6
R
ic
m
.c
d
r
