Appendix B - Unimode 300/400
Connecting the ADT-APS-6R to an MPS-400
Make the following connections as shown in the figure below.
• Connect primary power from TB1 to MPS-400 terminal block TB1
(
NEU
and
HOT
)
• Connect secondary power from TB3 to MPS-400 terminal block
TB1 (+ and –)
• Connect trouble input from J3 to MPS-400 terminal block J4

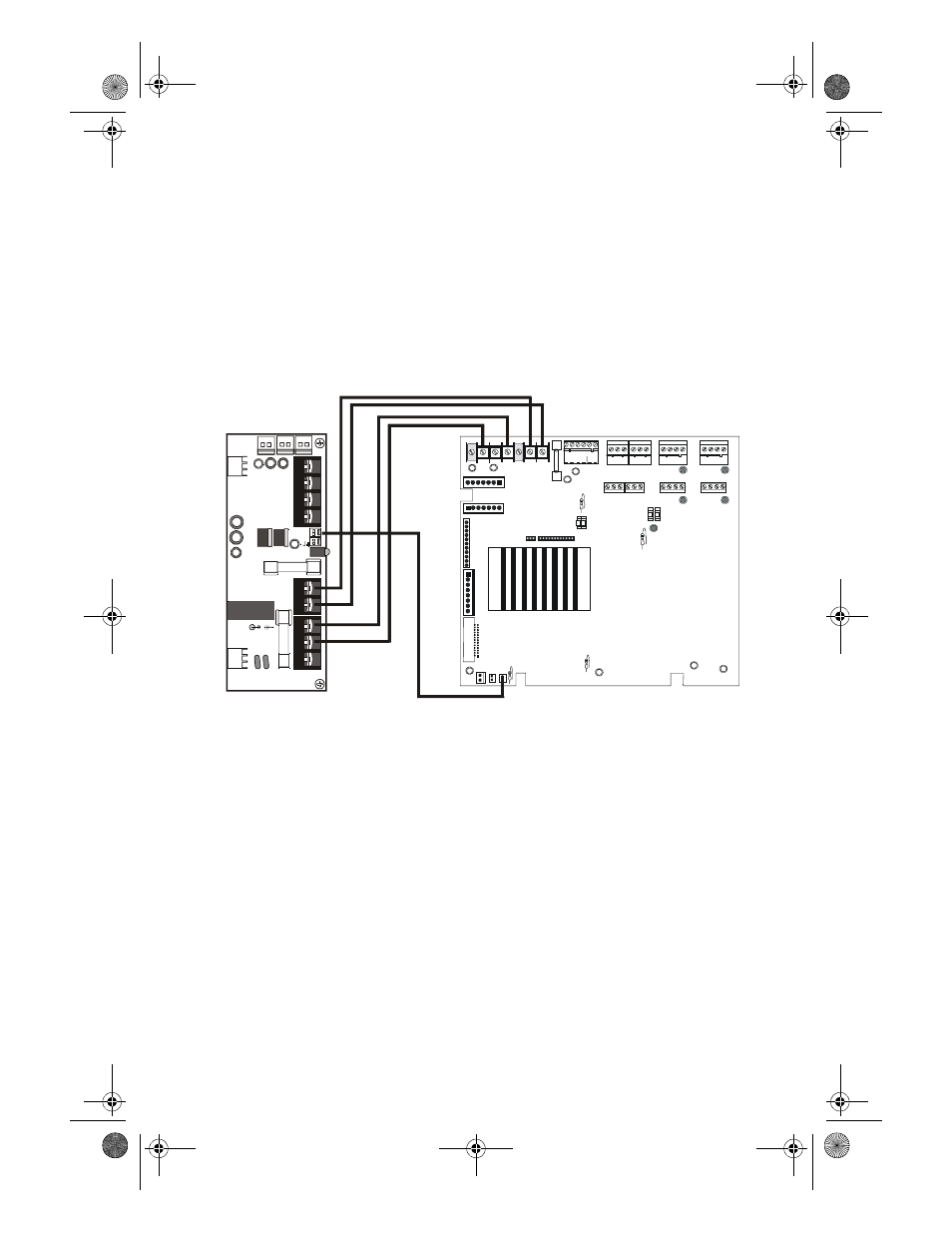

Figure 13 Wiring to MPS-400
