Wiring the ADT-APS-6R 2. Installation
ADT-APS-6R Instruction PN 50935:B 7/21/00
13
Connecting Multiple ADT-APS-6R Power Supplies
Typical trouble bus connections for multiple ADT-APS-6R power
supplies using trouble connectors J3 and J4.
Use Cable 71033 or 75098 (same cables; different lengths) for all wiring.
See appendix on your system for specific “Trouble Input” connection.
Note: J3 and J4 can be interchanged.

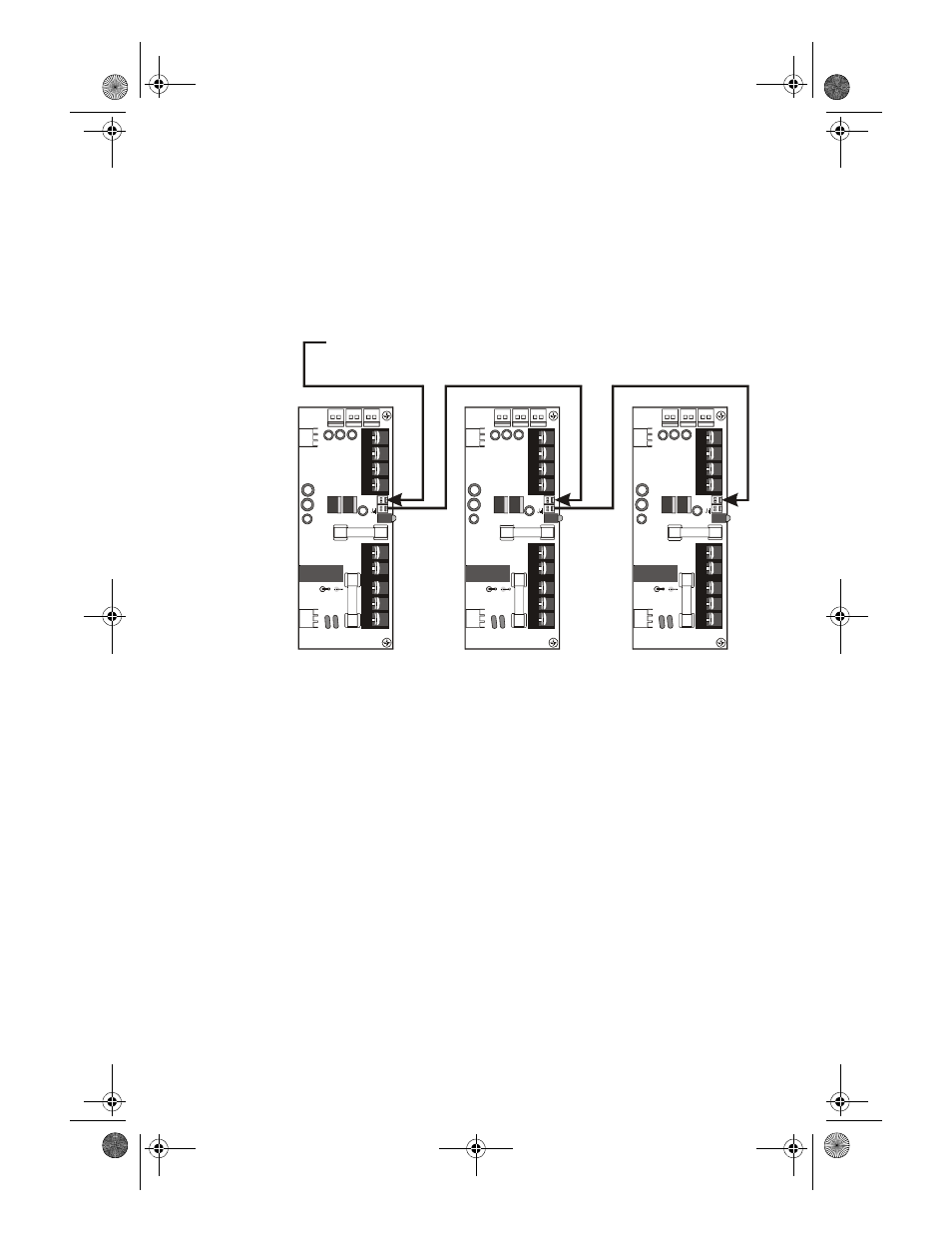

Figure 7 Trouble Bus Connections for Multiple ADT-APS-6R Configurations
J2
J9
J3
J1
TB2
JP3 JP2
J2
J9
J3
J1
TB2
JP3 JP2
J2
J9
J3
J1
TB2
JP3 JP2
To trouble input on main power
supply or control panel
First APS-6R Last APS-6R
A
P
S
-6
R
m
u
lt
ipl
e.
c
d
r
