Datamax-O'Neil Performance series Wireless User Manual
Page 7
1 | Wireless Installation Instructions
Wireless Installation Guide
4
3. Remove all four 7mm nuts securing the present sensor cable connection cover to
the media cover.

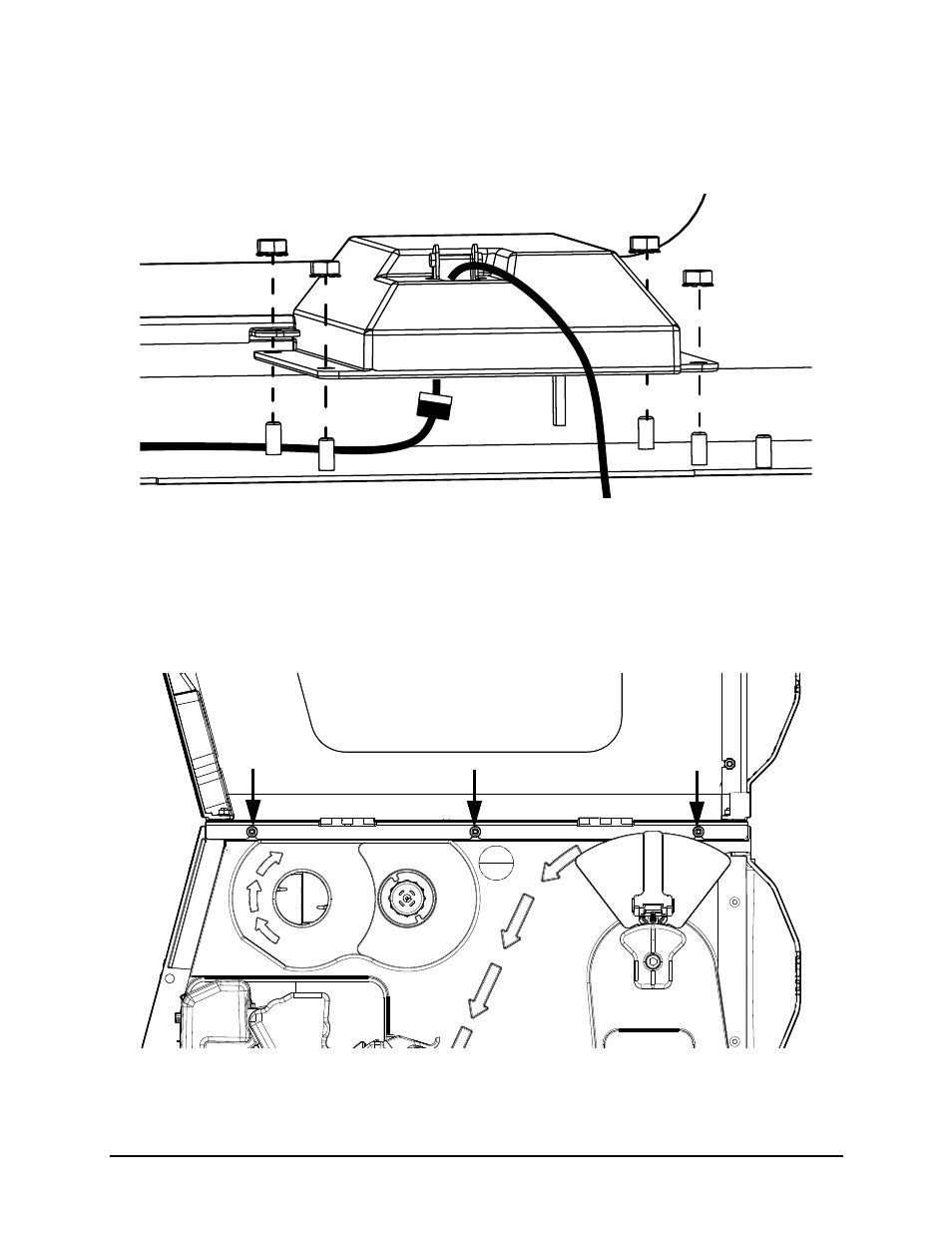

Figure: 1 - 3 PCB Cover
4. Disconnect the present sensor cable connector and route the connector (male) out
of the opening.
5. Loosen all three (3) 2.5mm hex head screws from the upper cover mount.
Note:
For an easier re-installation, loosen but do not remove the screws.
Figure: 1 - 4 Upper Screws
