09_2-changable parts_print head.doc, 2 replacing the print head, Changeable parts – Datamax-O'Neil MP Nova Operators Manual User Manual
Page 49
9. Changeable Parts
9.2 Replacing the Print Head
Note:
The pictures shown describe
an MP Nova4 DT. The process
works just the same for all MP
Nova printers
.

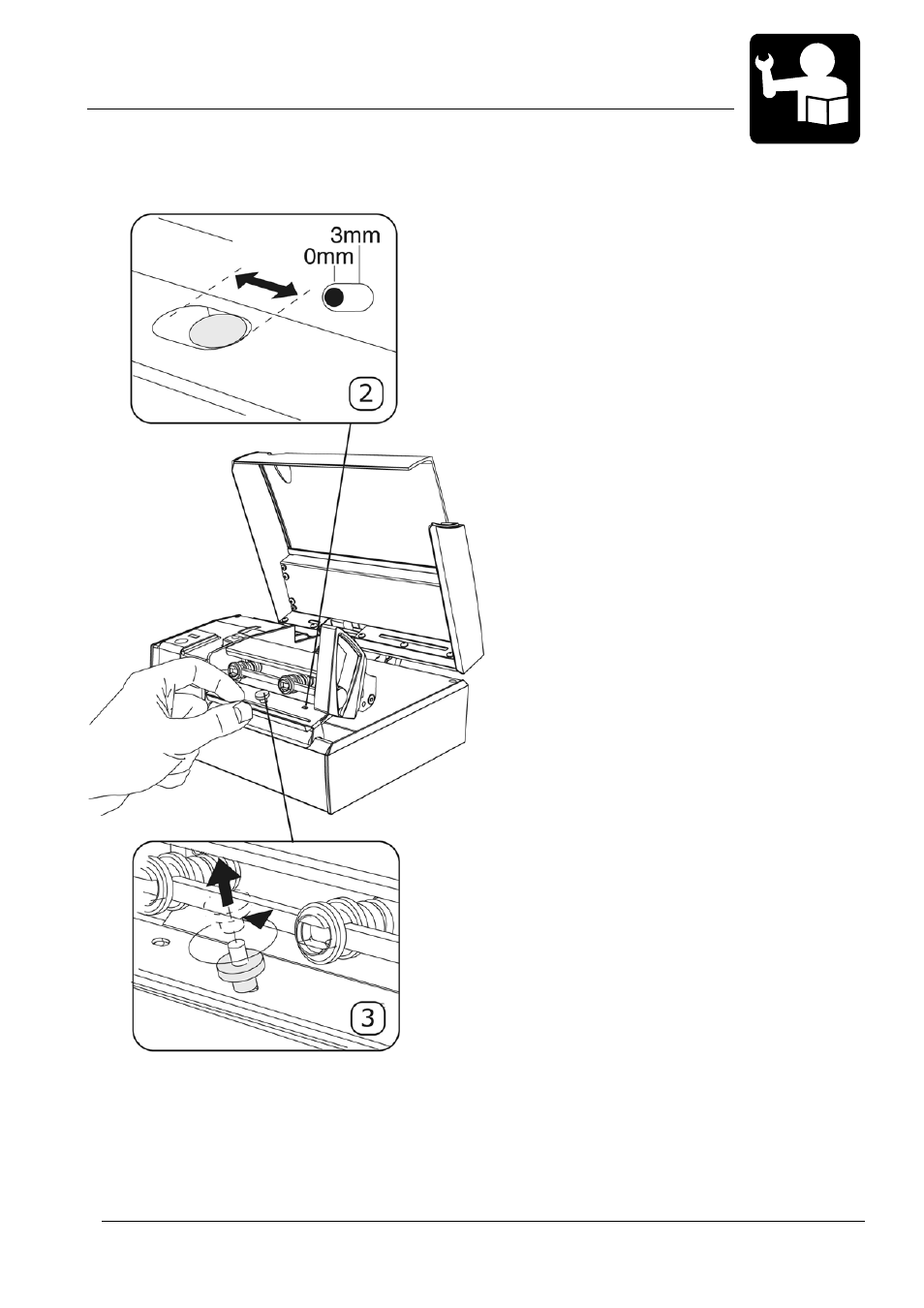

1.
Make sure the printer is
turned off and open the
cover.
2.
Check and remember the
current lateral position of
the print head. 3 mm is the
default position.
Note:
Only adjustable on
MP Nova 4 DT.
3.
Carefully push the print
head downwards until the
finger nut becomes visible.
Unscrew the finger nut.
Note:
Take care not to
loose the finger nut.
