04_2-product overview_printer partsdt.doc, 2 mp nova4, 6 & 8 dt – printer parts, Product overview – Datamax-O'Neil MP Nova Operators Manual User Manual
Page 12
4. Product Overview

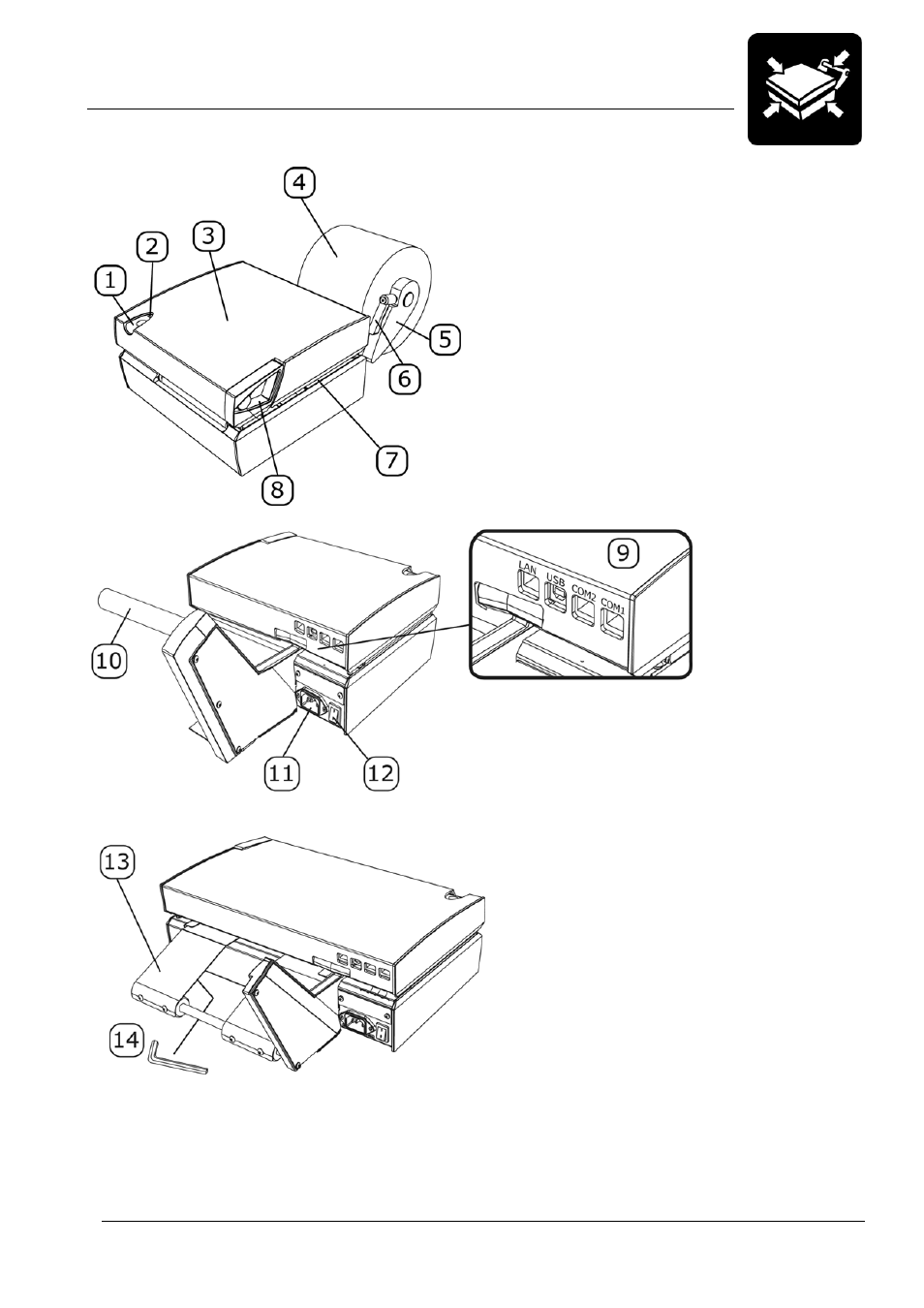

4.2 MP Nova4, 6 & 8 DT – Printer Parts
1.
Print button
2.
Status lamp (LED)
3.
Cover
4.
Media roll
5.
Roll steering
6.
Roll guide lock
7.
Media track
8.
Handle
9.
Communication ports
10.
Unroll shaft
11.
Power connection
12.
Power switch
13.
Fan-fold steering (MPNova8)
14.
Allen Key (2 mm), mounted
underneath the fan-fold
steering (MPNova8)
