Datamax-O'Neil M-Class Mark II Peel & Present Option User Manual
Page 5
3

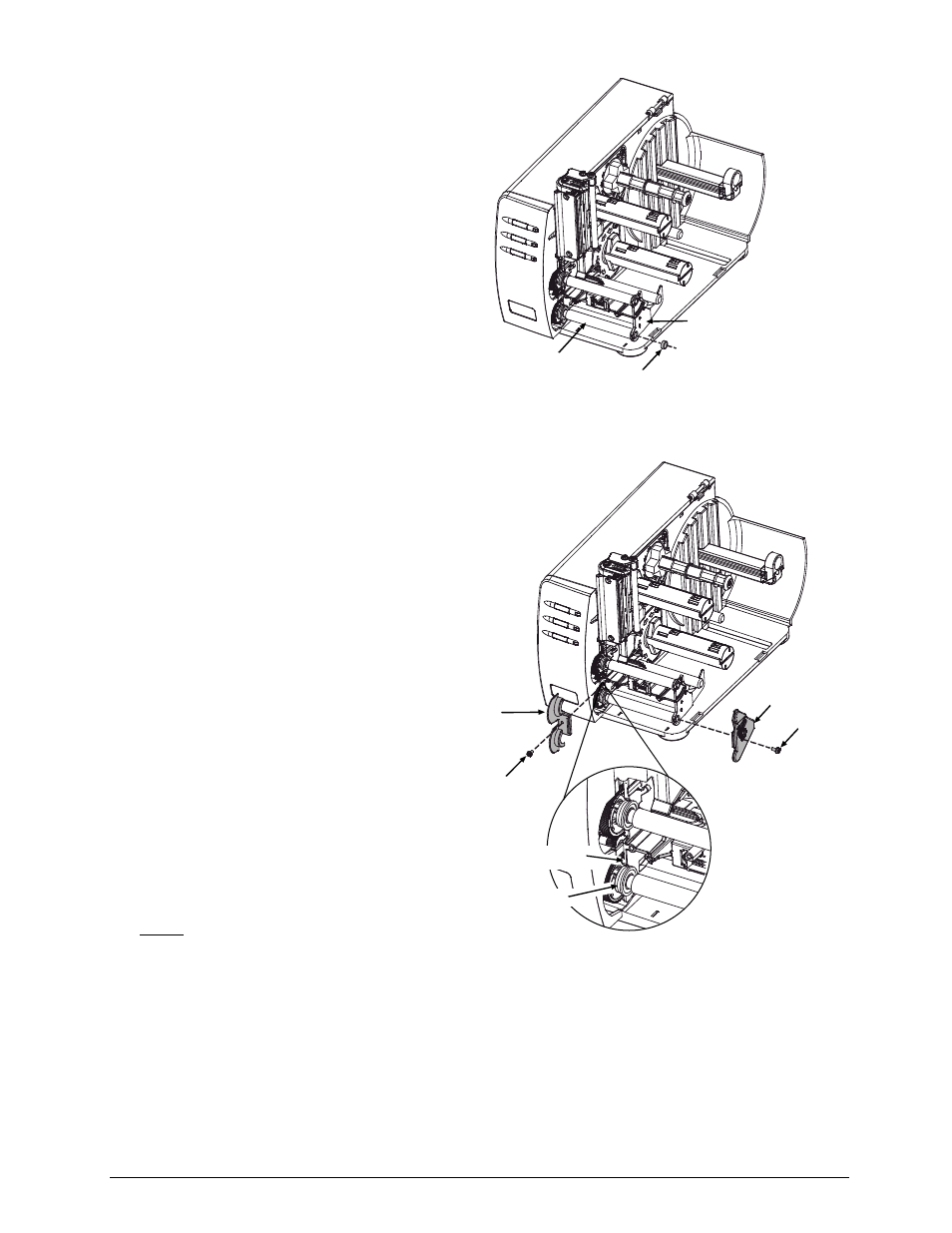

Insert the Bushing completely into
the Bearing Block.
Bearing Block
Bushing
Assist Roller
While holding the Assist Roller
Bearing against the Centerplate,
replace the Bearing Cap.
Hold the Bearing Cap in place and
secure it with the Screw.
Replace the Side Plate and start, but
do not tighten the Screw.
Side Plate
Screw
Bearing Cap
Screw
Centerplate
Assist Roller Bearing
