Remove Upper Roller Shaft and associated
Rollers.
Clean
all surfaces of the Rollers and the Upper
Roller Shaft. Isopropyl Alcohol can be used,
for heavy or stubborn deposits WD-40
or an
adhesive remover can be used. Be sure all the
ridges on the rollers are free of debris.
Re-assemble the Upper Roller Shaft, Rollers,
and C-Clip into the Peel Mechanism Assembly.

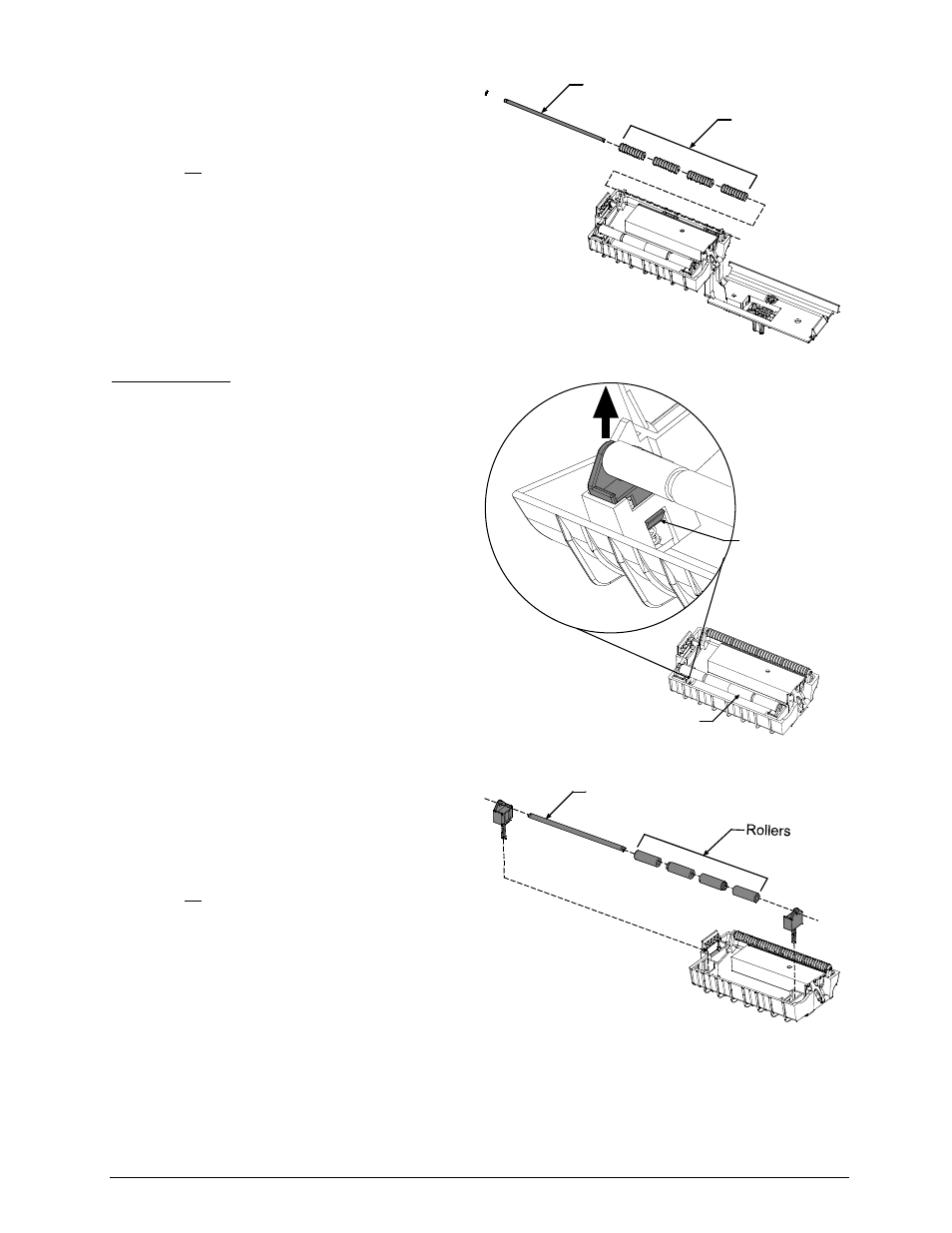

Rollers
Upper Roller
Shaft
Lower Rollers:
Remove the Peel Mechanism from the printer.
Press in on the Latch and allow the Front Cover
to swing open.
Push in on the Tab as shown, repeat for the
other side and then remove the entire Lower
Roller Assembly.
Lower Roller
Assembly
Push in on Tab
Remove Lower Roller Shaft and associated
Rollers. Note the order of the Rollers as they
are removed, they must be re-installed in the
same order.
Clean
all surfaces of the Rollers and the Lower
Roller Shaft. Isopropyl Alcohol can be used,
for heavy or stubborn deposits WD-40
or an
adhesive remover can be used. Be sure all the
ridges on the rollers are free of debris.
Re-assemble the Lower Roller Shaft and
Rollers. Reinstall the assembly into the Peel
Mechanism Assembly
Lower Roller
Shaft
