Datamax-O'Neil M-Class Mark II Peel & Present Option User Manual
Page 4
2

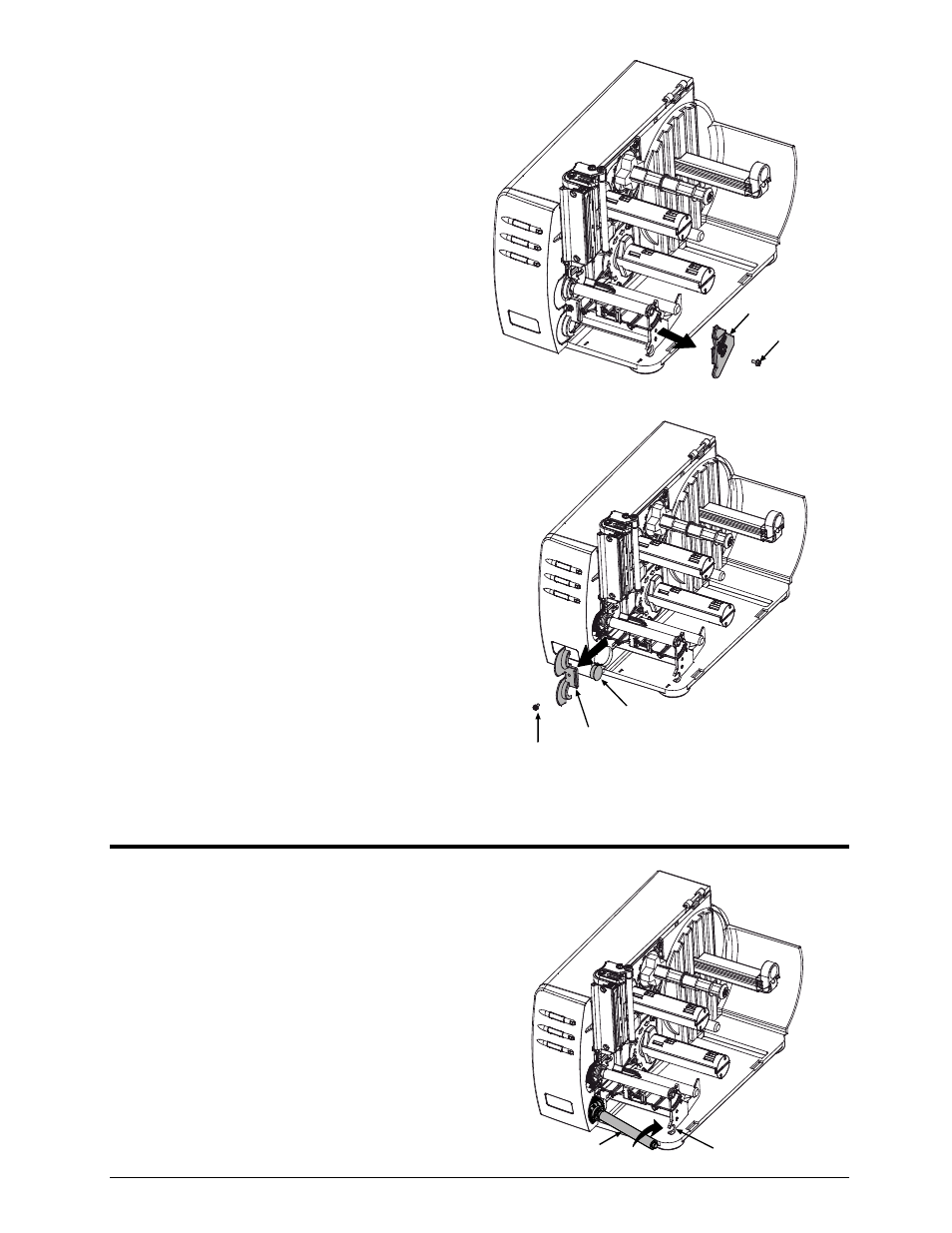

Using a #2 Philips head screwdriver, remove
the Screw that secures the Side Plate to the
printer.
Remove the Side Plate.
Side Plate
Screw
Using a #2 Philips head screwdriver, remove
the Screw that secures the Bearing Cap to the
printer.
Remove the Bearing Cap and the Hole Plug.
Bearing Cap
Screw
Hole Plug
Step 2: Installing the Assist Roller
Insert the Assist Roller, as shown, gears first
into the printer.
Pivot the other end of the roller into the
Bearing Block.
Assist Roller
Bearing Block
