Datamax-O'Neil I-Class Linear Scanner User Guide User Manual
Page 9
7

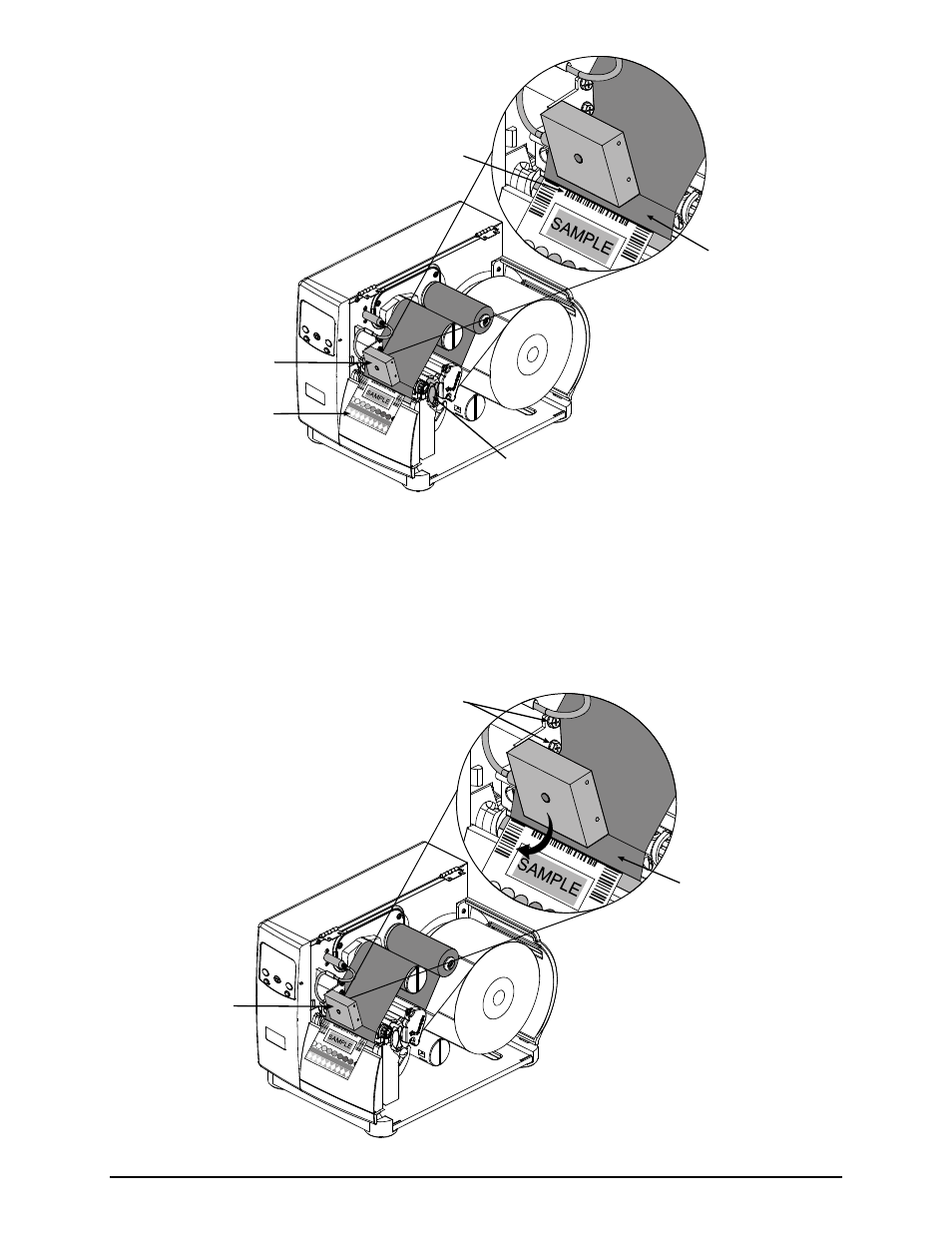

Scanner
Ribbon Shield
Picket Fence Barcode
Print Quality Label
Printhead Latch
4)
Using the printer’s front panel enter ‘MENU MODE’ and go to ‘DIAGNOSTICS’ ‘OPTIONS
TESTING’ ‘TEST SCANNER’ ‘ALIGNMENT TEST’ and then press the ENTER Key (see the
I-Class Operator’s Manual for menu system details).
5)
Slightly loosen the top Mounting Bracket Screw (see drawing below) and tilt the Scanner away from
the Ribbon Shield of the printer.
Mounting Bracket Screws
Scanner
Ribbon Shield
