8
6)

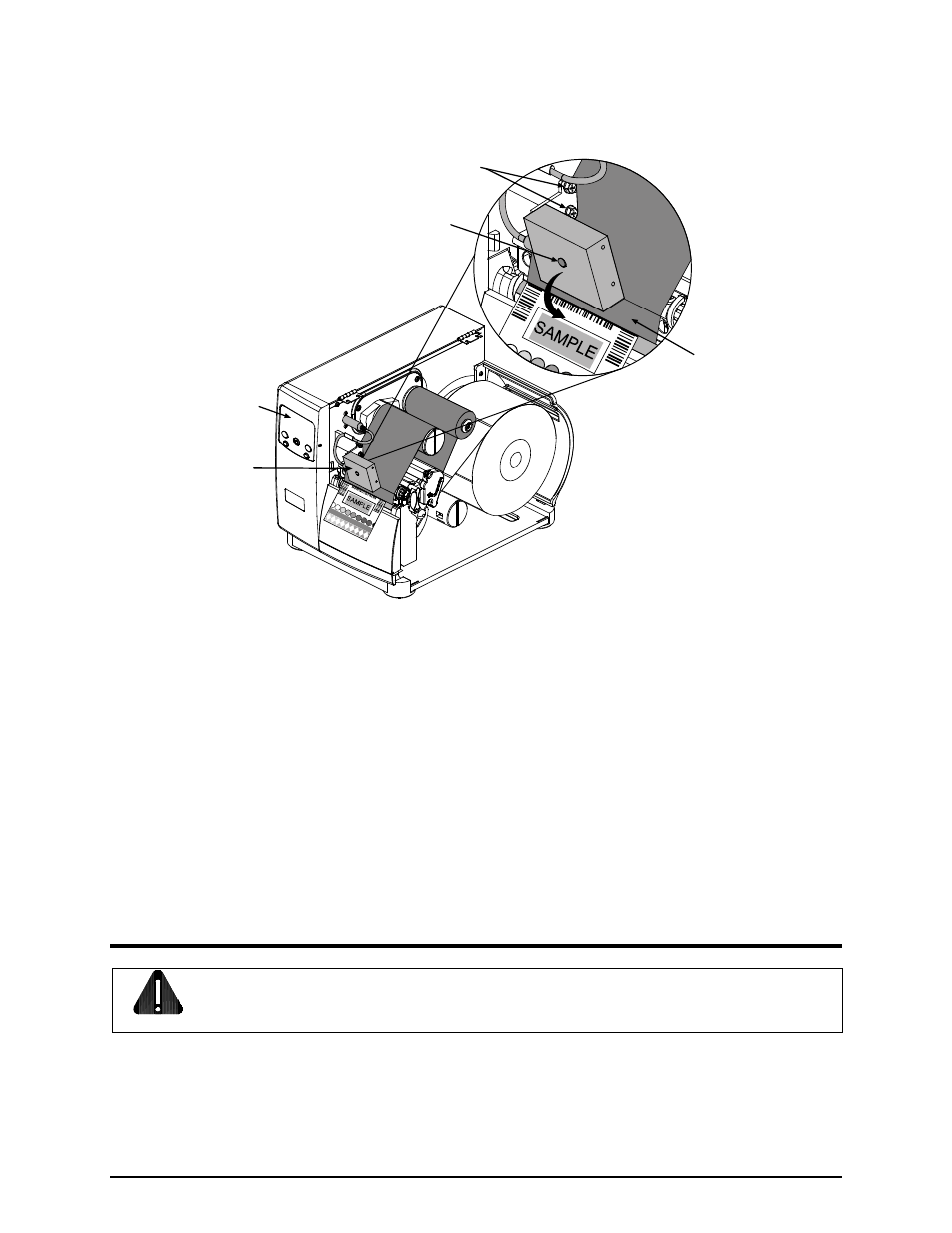

While watching the ‘Scan Count’ in the Display Panel, slowly tilt the Scanner forward (toward the
Ribbon Shield) until the numbers increment continuously and rapidly (also, the green Indicator Light
on the Scanner will illuminate). This is the optimum reading position.
Mounting Bracket Screws
Scanner
Indicator Light
Ribbon Shield
Display Panel
7)
Carefully tighten both of the Mounting Bracket Screws. (Ensure that the ‘Scan Count’ in the Display
Panel is still incrementing rapidly.) Unlock the printhead latch, remove the print quality label and
reinstall your operating media.
8)
Using the printer’s front panel, exit the ‘ALIGNMENT TEST’ by repeatedly pressing the ESC Key
(see the I-Class Operator’s Manual for menu system details). With the printer at ‘READY,’ run a
batch of live labels to test the alignment. If necessary, repeat the procedure or, if problems persist,
consult the Troubleshooting section.
This completes the Alignment procedure.
Troubleshooting
CAUTION
This unit, a Class 1 LED Product per IEC 825-1 (1997) w ith power up to 15 mW in a 0.1 ms pulse at
635-670 nm, contains no user serviceable parts. All product service must be performed by Datamax-
O’Neil. Opening the Scanner will void the warranty and could expose the operator to LED light.
The most common reasons and solutions for Scanner Faults are listed below:
