10
Specifications
Physical
Case Material
Steel (Black)
Dimensions (L x H x W)
47 x 20 x 55 mm (1.95 x 0.78 x 2.2 in)
Cable Length
7.0 inches with 8 pin Mini DIN connection

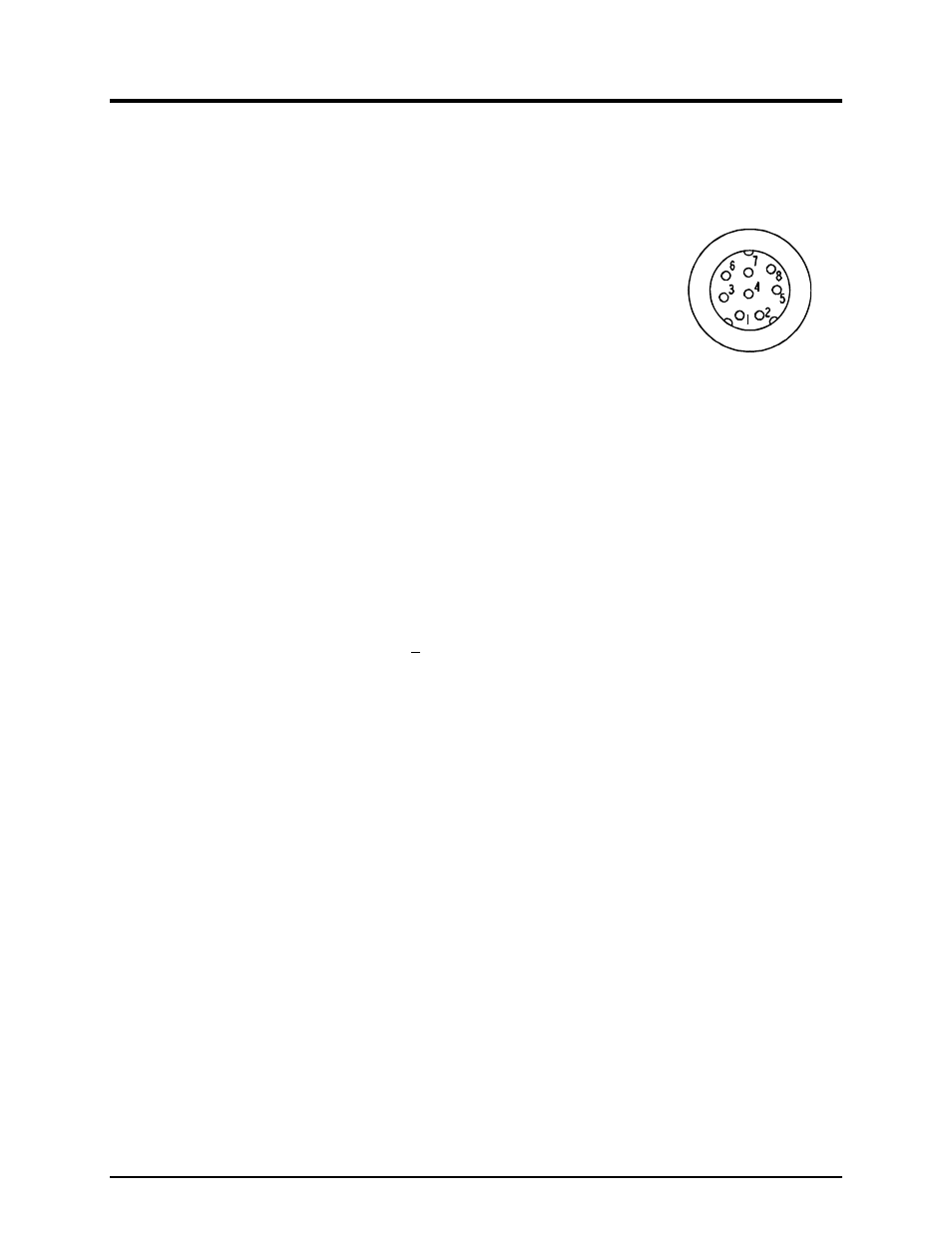

Mini DIN Connector
Pin Number:
Signal:
MD-80
8-pin Mini DIN Connector
1
+5 VDC
2
TXD
3
Trigger
4
RTS
5
Signal Ground
6
Chassis Ground
7
RXD
8
CTS
Optical
Scan Rate
700 scans per second ±10%
Wavelength of LED Illumination 660 nanometers
Read Sensor
CCD linear array
Narrow Bar Resolution
10.0 mil
Maximum Character Input
51 digits
Maximum Scanning Width
4.0 inches
Minimum Print Contrast Signal
0.45 (min. background reflectance of 70%)
Symbology Orientation
Picket fence
Electrical
Operating Voltage
+5 VDC + 5%
Current:
Operating
158 mA typical, 220 mA maximum
Static
150 mA maximum
Surge
3 A maximum
Environmental
Temperature:
Operating
0 to +40 C (+32 to +104 F)
Storage
-10 to +60 C (+14 to +140 F)
Humidity (non-condensing):
Operating
20 to 80%
Storage
20 to 90%
Ambient light restrictions:
Fluorescent or incandescent: below 5 kilolux
Supported Symbologies
Codabar (NW-7)
Code 39
Code 93
Code 128
Industrial 2 of 5
Interleaved 2 of 5
MSI / Plessey
WPC (UPC / EAN / JAN)
IATA
Supported Printers*
I-4208, I-4212, I-4308, I-4406, and I-4604
*With installed firmware versions of 7.03 and above.
