Swiftcomm transmitter module, Swiftcomm receiver module, Swiftcomm – BEI Sensors SwiftComm® Real-Time Wireless Encoder Interface User Manual

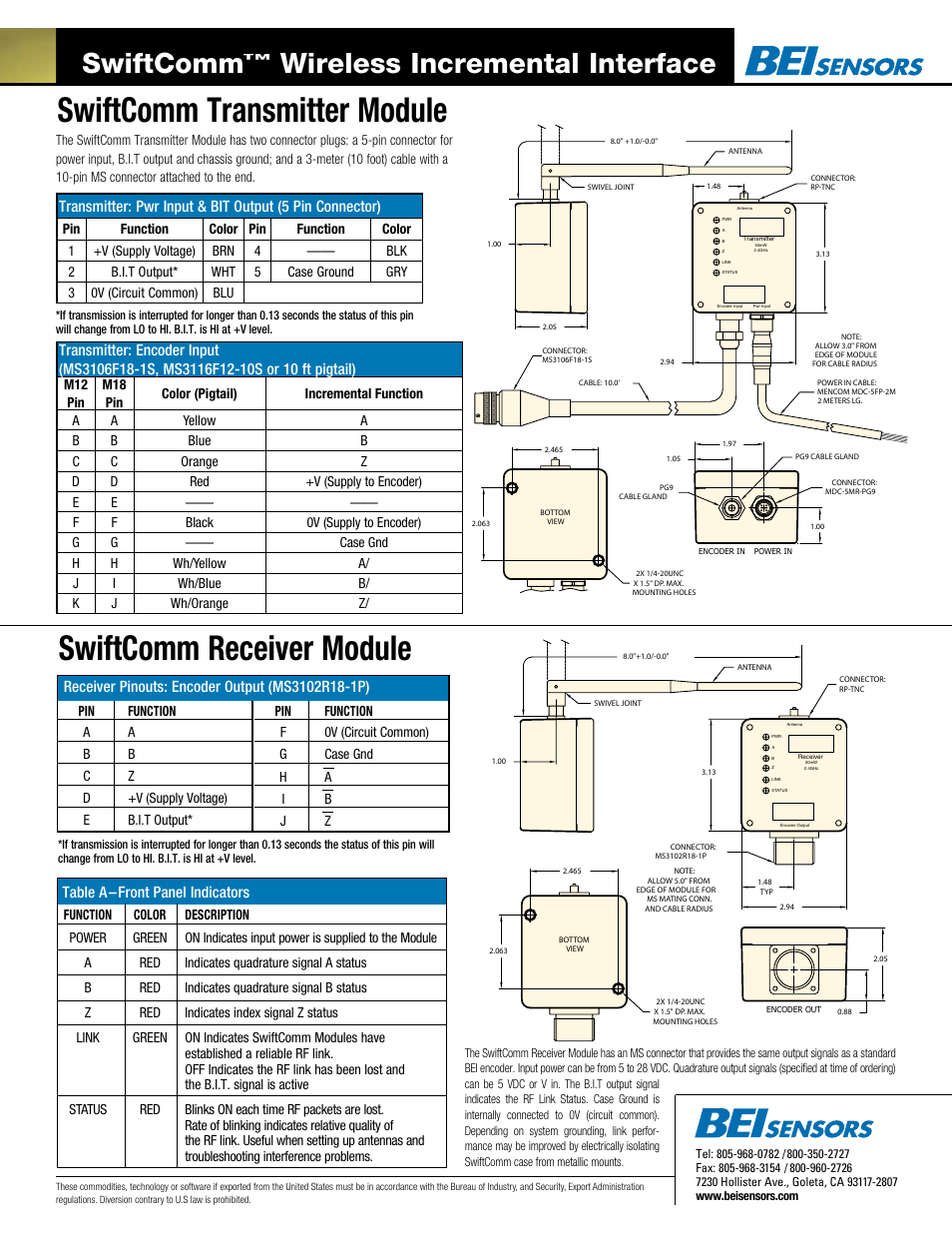

Page 2: Wireless incremental interface, Table a–front panel indicators, Hwh/yellow a/ j i wh/blue b/ k j wh/orange z, Transmitter, Receiver, Red +v (supply to encoder), Black 0v (supply to encoder)
Swiftcomm transmitter module, Swiftcomm receiver module, Swiftcomm | Wireless incremental interface, Table a–front panel indicators, Hwh/yellow a/ j i wh/blue b/ k j wh/orange z, Transmitter, Receiver, Red +v (supply to encoder), Black 0v (supply to encoder) | BEI Sensors SwiftComm® Real-Time Wireless Encoder Interface User Manual | Page 2 / 3 See also other documents in the category BEI Sensors Sensors:
