Hs25 incremental optical encoder, Output waveform hs25 disc resolutions, Incremental output terminations – BEI Sensors HS25 Express Encoder User Manual

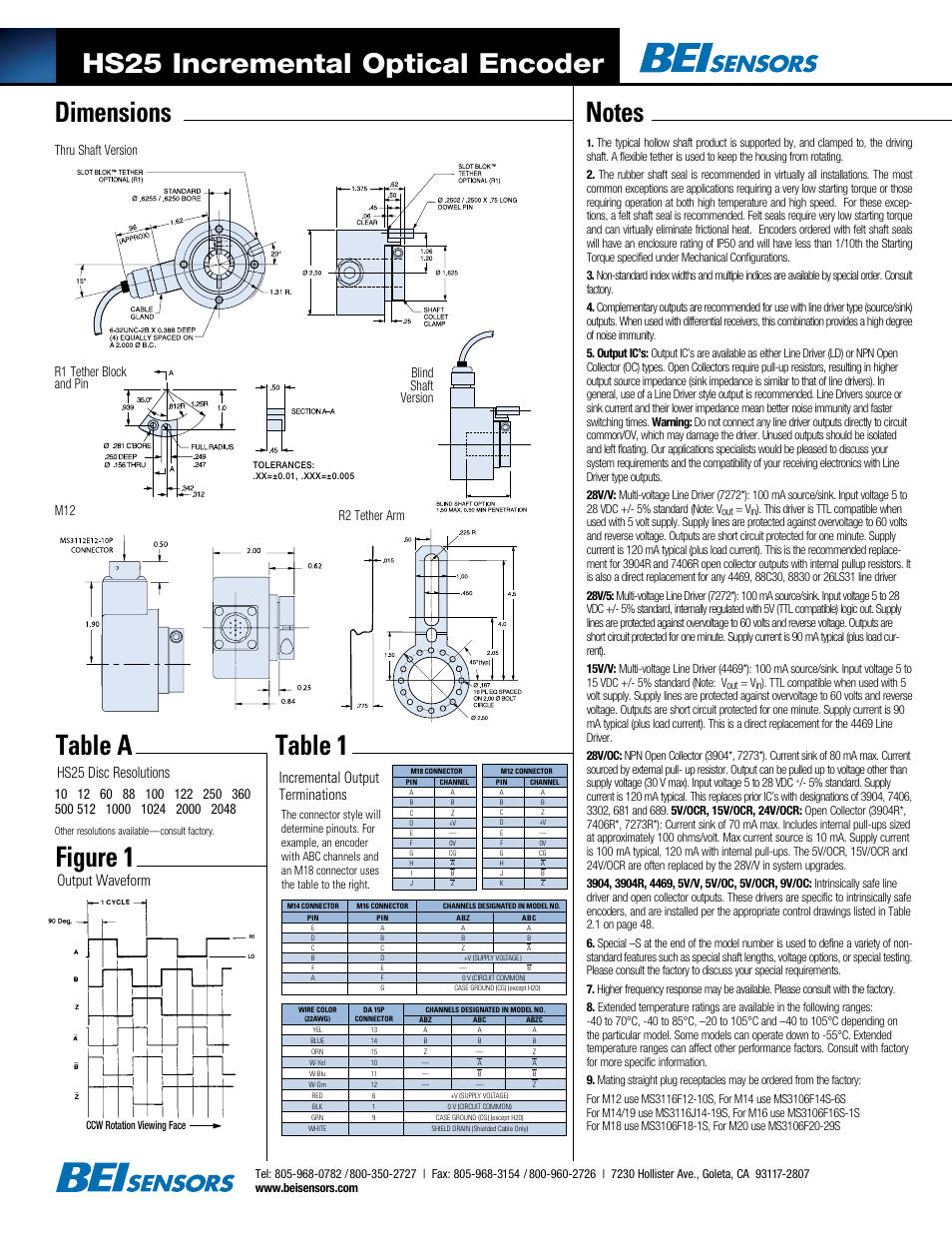

Page 2: Blind shaft version thru shaft version, R2 tether arm m12 r1 tether block and pin, Not es and tables
