ATP8700
Second Zone Connections
Second Zone Audio
Use the L and R channel ZONE 2 OUT audio jacks to connect
the A/V PROCESSOR to the analog audio inputs of an external
amplifier or other audio component in the second zone.
The “2nd Zone” section has one fixed output, one variable
output and one second zone dedicated input that is accessible
only from the “2nd Zone”. The “2nd Zone” has limited access
to which input source may be selected: the dedicated “2nd
Zone” input along with all signal connected to analog audio
and composite video inputs.
Second Zone Video
Composite Connect the composite video input from the
display to the second composite (yellow) VIDEO MONITOR
OUT jack on the rear of the A/V PROCESSOR.

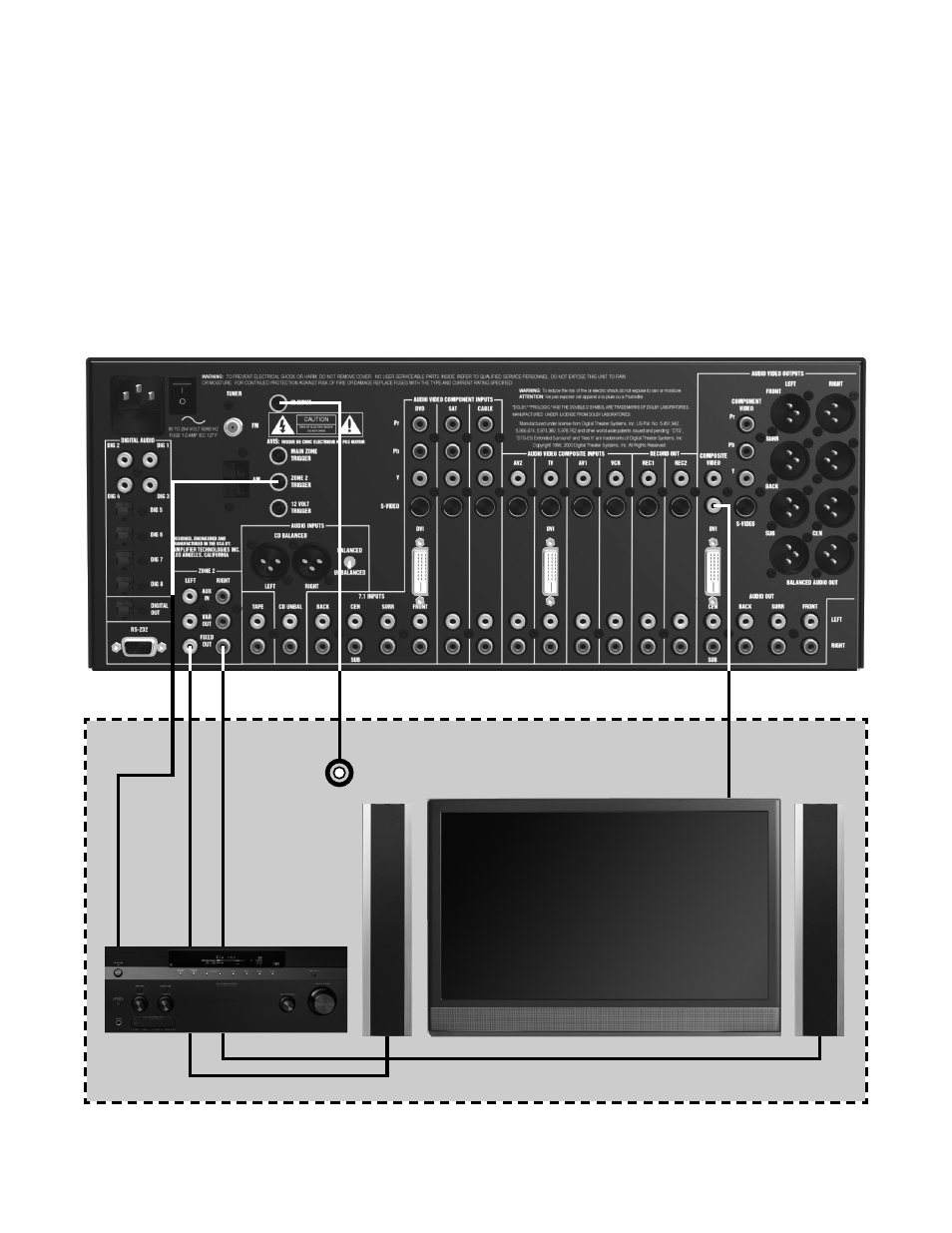

Connecting Your A/V Processor to Audio/Video Equipment in a Second Zone
Page 20
Second Zone
Optional
IR Sensor
To Composite
Video Input
To Any Analog
Audio Inputs Trigger
Out to Speakers
