Setting up the Octo Value
WORKING WITH THE OCTO VALUE

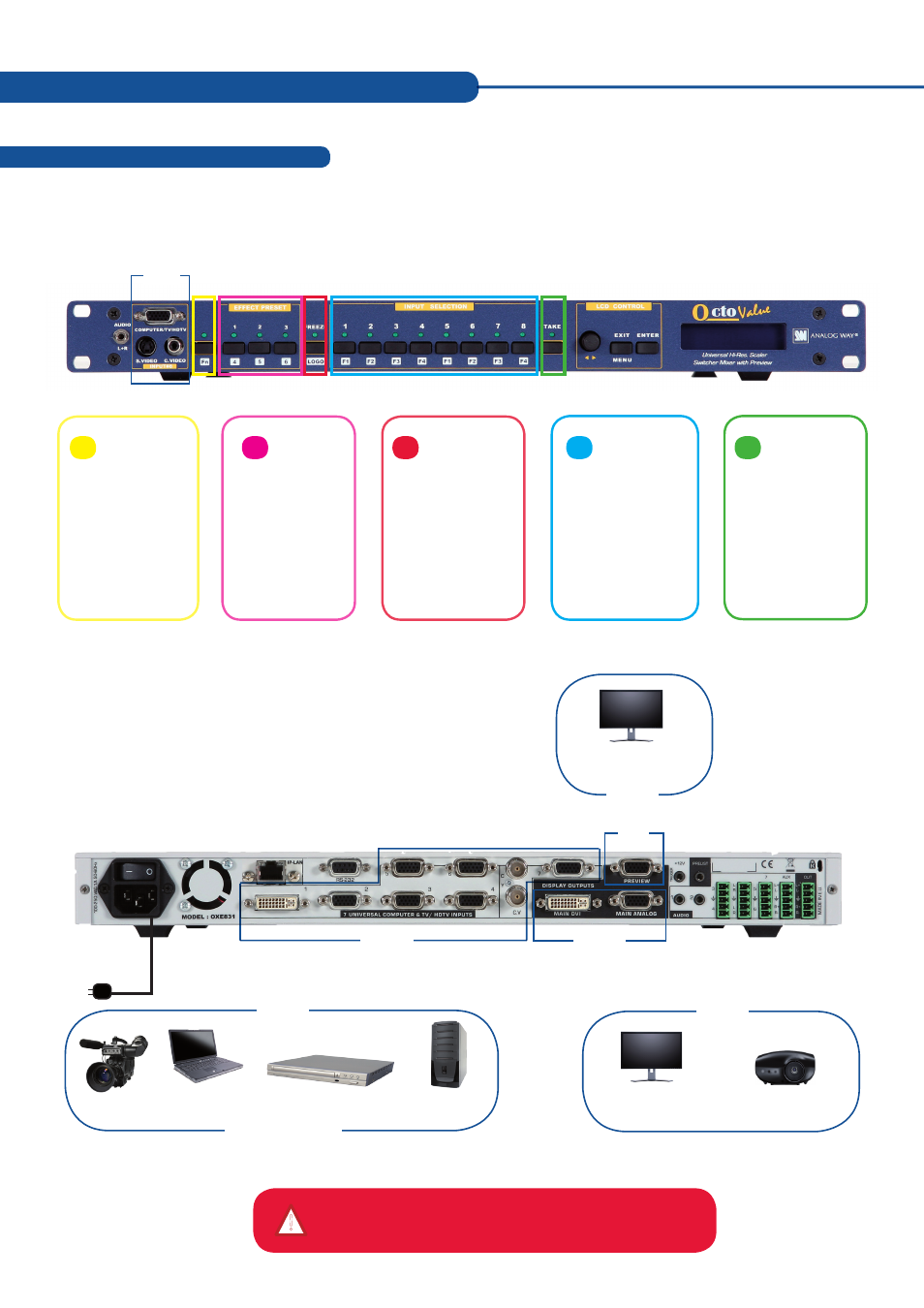

The following setup is an example of a typical Octo Value configuration for an event or roadshow, but can of course be
modified according to your specific needs :
Turn OFF all of your equipment before connecting.
Selection of the six
EFFECT PRESET.
Effect preset #4, #5,
#6 can be used by
first pressing Fn.
Freeze the main out-
put (the blinking LED
indicates the Freeze is
active).
LOGO display can be
used by first pressing
Fn.
- Selection of the 8 input
sources: #1 to #8.
- Selection of the
four frames: F1 to F4
(see NOTE).
Allows to display the
pre-selected source
onto the Main output
with the selected effect.
Secondary function
selection button.
Take Freeze/logo Effect Preset Fn Input selection
CAMERA COMPUTER NOTEBOOK VCR / DVD PLAYER
INPUT SOURCES
MAIN DISPLAY
PREVIEW DISPLAY
MAIN PROJECTOR
RS-232 communication port
on a DB9 female connector or
TCP/IP on RJ45 connector
❶
❷ ❸
❹
❸ ❷
❹
❷
!
