Pulse LE - Ref. PLS200

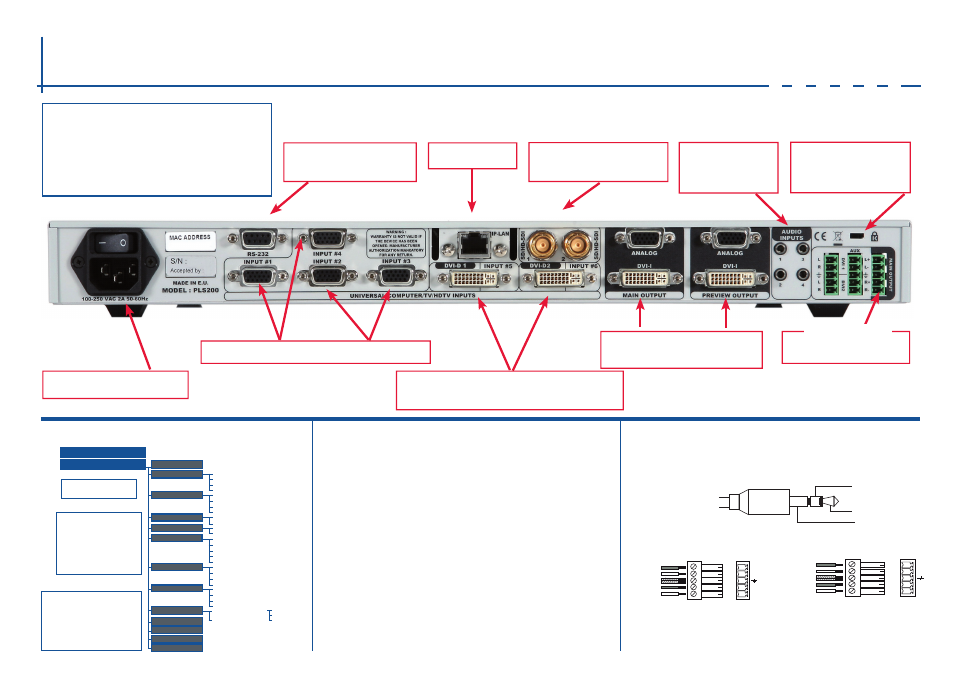

Rear Panel Description
RS-232 communication port
on a DB9 female connector
Power supply: IEC/EN/UL/CSA
60950-1, internal, autoswitchable
Universal Analog Computer TV/HDTV inputs #1 to #4
3G-SD/HD-SDI inputs #1 & #2:
female BNC
DVI connectors: DVI-D inputs #1 and #2 on the DVI-I
digital pins, and Universal Analog inputs #5 & #6 on
the DVI-I analog pins. Use the included break-in cable
Outputs #1 & #2: female HD15,
DVI-I (simultaneous analog and
digital outputs)
Main Audio Output (balanced)
IP-LAN connector 3.5mm Jack Stereo
Connector input
(unbalanced)
A U D I o I N P U T / o U T P U T C o N N E C T I o N S
MCo male connectors
Inputs #1 to #4: Unbalanced connection
Inputs DVI1 & DVI2: Unbalanced connection
Main Output: Balanced connection
Input (AUX): Balanced connection
L DVI 1
R DVI1
L DVI 2
R DVI 2
UNBALANCED
Left DVI 1
Left DVI 2
Right DVI 1
Right DVI 2
GROUND(S)
4
L+
L-
R+
R-
BALANCED
L+
R+
L-
R-
GROUND(S)
H o M E M E N U
The Home Menu is the system’s top level menu, from which all others menus can be
accessed. To access a menu, press the [MENU] button. To navigate in the Home
Menu, please use the knob. To confirm, please use the [ENTER] button. You can also
return to the Home Menu by pressing the [EXIT] button.
- INPUT: configure the 10 individual input types and resolutions
- MAIN oUT: set format and rate of Main output
- PREVIEW oUT: set format and rate of Preview output
- PRESET: store and use presets
- IMAGE: change source image settings of an input
- KEyING/TITLING: access keying and titling controls and parameters for the
selected layer
- LAyER: adjust Layer size, position, border transparency or Transition
- AUDIo: access all audio input and output parameters
- CoNTRoL: access device software information, LAN settings, reset factory settings,
amongst other user oriented functions (see next page)
- VIRTUAL T-Bar: access the Virtual T-Bar
H o W To A D J U S T A S o U R C E ?
W o R K I N G W I T H P L S 2 0 0
The features of PLS200 can be controlled by the external
remote control as:
- Orchestra - Ref. ORC50
- Axion2 - Ref. ARC200
- Remote Control Software - Ref. RCS (supplied)
- Triple Remote Control Keypad - Ref. TRK-800
- Remote Control Keypad - Ref. RK-300
AUDIO OUTPUT
Right
Left
Ground
IMAGE (A3)
HOME MENU (extract)
Auto Centering (R1)
Blanking Adjust (R2)
Cropping (R2)
Optimize (R1)
Under/Over (R3)
Aspect IN
Aspect OUT
Colorimetry
Advanced (R2)
2:2 Pulldown (R7)
3:2 Pulldown (R8)
Reset settings
Force 4:3 (R9)
H position
H position
V position
V position
H size
H size
Phase
Underscan
Native
LetterBox_2_35
Centered
Contrast
Red Level (R5) Component Level (R2)
Pillar Box
1_1
Hue (R6)
Blue Level (R5) Motion Correct. (R11) *
V size...
V size...
H Total
Overscan
LetterBox_1_78
Full screen
Brightness
Anamorphic
Cropped
Color
Green Level (R5)
(A3) displayed when an
input is active
(R1) Analog Computer Input
(R2) Analog Input
(R3) Video Input
(R4) EDTV/HDTV Input
(R5) RGB or YUV or YC or CV
(R6) NTSC Input
(R7) Interlaced 50 Hz
(R8) Interlaced 60 Hz
(R9) SDTV
The Menu allows to improve the thres-
hold of the comb filter.
0% means no adjustments and 100%
is the max. The setting is manual with
a visual correction.
The result is the removal of the alia-
sing in the moving picture.
* Motion Correction
MCO Male connector for
input. DVI #1 & #2 and AUX
