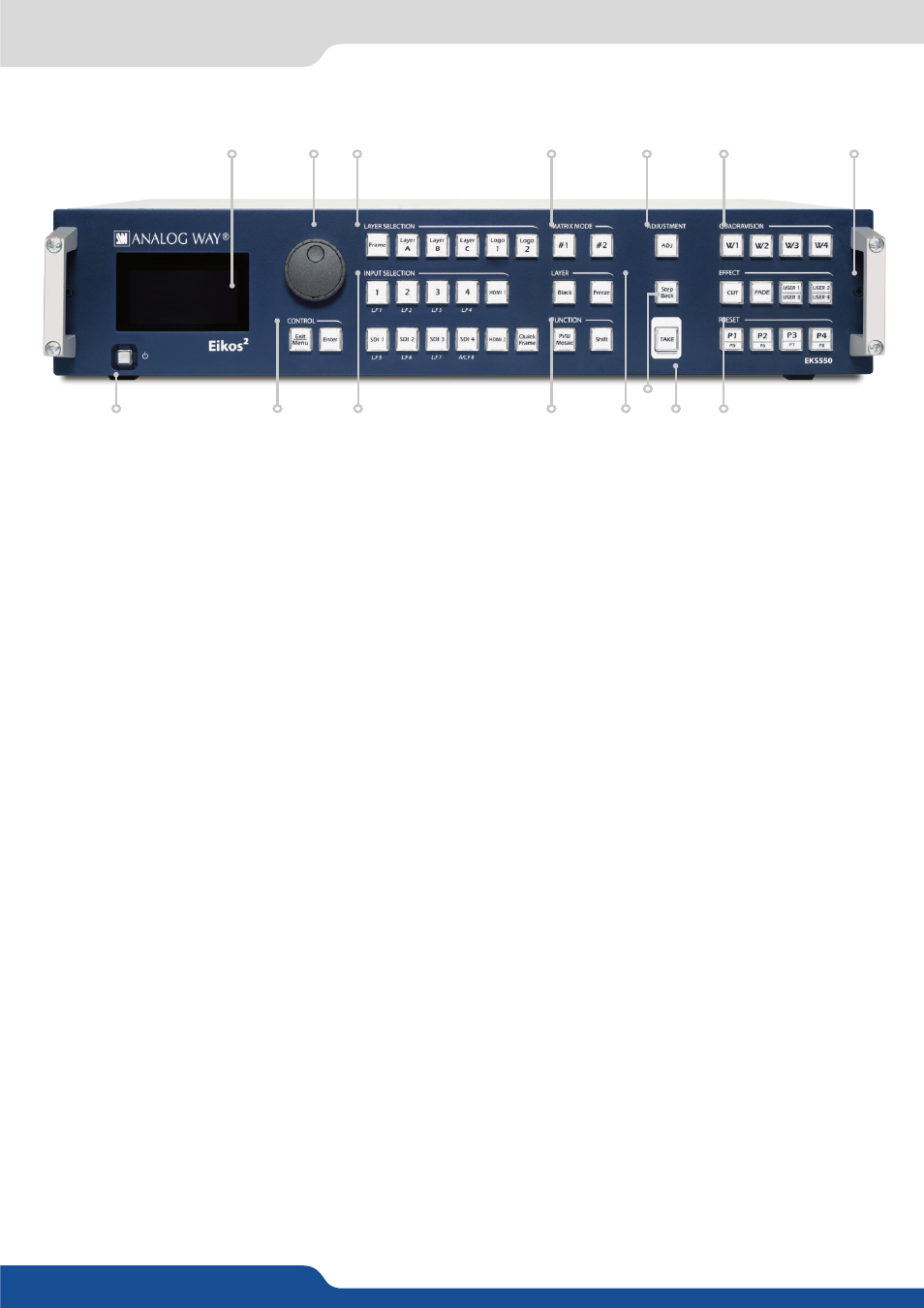

5.1.2 Front panel
5.1.2 Front panel
1
2
3
4
5
6
15
11
9
12
10
13
14
8
7
1.
Front panel display:
4-line VFD
2. Menu scroll knob
3. Layer selection:
- Frame: un-scaled layer for still frames
- Layer A/B/C: scaled positionable layers for live sources
- Logo 1/2: un-scaled, positionable layer for still logos
4.
Matrix mode:
#1 to #2: select the output #1 or #2, a layer and a source, then press TAKE
5.
Adjustment:
adjust layer or logo position, size active layer, zoom active layer
6.
Quadravision:
W1 to W4: 4 layers with a choice of 8 customized templates
7.
Effect:
- Cut: select Cut as the current transition type
- Fade: select Fade as the current transition type
- User 1 to 4: select as a customized transition
8.
On/Off - Stand-by:
hold for 3 seconds for stand-by mode
9.
Control:
Exit/menu: Home menu or back one level - Enter: validate the menu or command
10.
Input selection:
- 1 to 4: access source 1 to 4, display frame/logo 1 to 4
- HDMI 1/2: access HDMI 1 or HDMI 2
- SDI 1 to SDI 4: access SDI 1 to SDI 4, display frame/logo 5 to 8
- Quick Frame: allows to quickly display a foreground frame
11.
Function:
Preview: display Mosaic Preview - Shift: secondary function selection button
12.
Layer:
- Black: clear the layer
- Freeze: freeze/unfreeze the input selected in the currently selected layer
13.
Step Back:
recall the last preset into your Preview monitor
14.
TAKE:
transition the pre-selected sources onto the Program output with the selected effects
15.
Preset:
P1 to P8: stores and recalls 8 presets available
