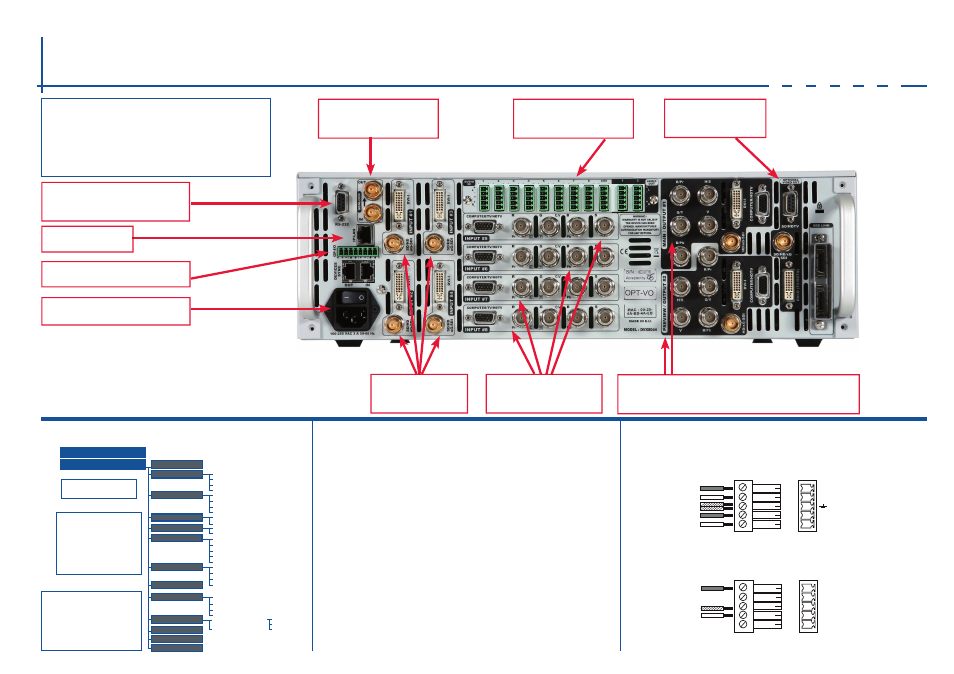

Di-VentiX II - Ref. DVX8044
Rear Panel Description
RS-232 communication port on
a DB9 female connector
Power supply: IEC/EN/UL/CSA
60950-1, internal, autoswitchable
GP-I/O connector
Universal Analog Computer
TV/HDTV inputs #5 to #8
Optional audio in/out card
(OPT-8044A)
Genlock in/out connectors
Universal Digital and
Analog inputs #1 to #4
Outputs #1 (Main) & #2 (Preview): female HD15, DVI-I
(simultaneous analog and digital outputs), SDI, 5 BNC de-
pending on the output format
IP-LAN connector
Optional video out
card (OPT-VO-8044)
A U D I O I N P U T / O U T P U T C O N N E C T I O N S
(Optional audio board)
Balanced connection
Unbalanced connection
4
L+
L-
R+
R-
BALANCED
L+
R+
L-
R-
GROUND(S)
H O M E M E N U
The Home Menu is the system’s top level menu, from which all others menus can be
accessed. To access a menu, press the
[MENU]
button. To navigate in the Home
Menu, please use the knob. To confirm, please use the
[ENTER]
button. You can also
return to the Home Menu by pressing the
[ExIT]
button.
-
INPUT:
configure the 10 individual input types and resolutions
-
OUTPUT:
configure the 2 outputs in terms of resolution and rates
-
VIDEO OUT:
configure the video optional output (format, rate, patterns)
-
PRESET:
store and use presets
-
IMAGE:
change source image settings of an input
- LAyER:
adjust Layer size, position, border transparency or Transition
-
KEyING/TITLING:
access keying and titling controls and parameters for the selected
layer
-
LOGOS/FRAMES:
store (record), and manage layers and frames. To display a frame
or logo, use the frame or logo layer (see next page)
-
AUDIO:
access all audio input and output parameters
- SOFTEDGE:
access to softedge adjustments, only in Softedge Mode
- CONTROL:
access device software information, LAN settings, reset factory settings,
amongst other user oriented functions (see next page)
H O W TO A D J U S T A S O U R C E ?
W O R K I N G W I T H D V X 8 0 4 4
The features of DVx8044 can be controlled by the external
remote control as:
- Orchestra - Ref. ORC50
- Axion2 - Ref. ARC200
- Remote Control Software - Ref. RCS (supplied)
- Remote Keypad with T-Bar - Ref. RKD8044
(A3)
HOME MENU (extract)
Auto Centering
(R1)
Blanking Adjust
(R2)
Input zoom
Optimize
(R1)
Under/Over
(R3)
Aspect IN
Aspect OUT
Colorimetry
Advanced
(R2)
2:2 Pulldown
(R7)
3:2 Pulldown
(R8)
Reset Default
Force 4:3
(R9)
H position
H start
V position
H End
H size
V start
Phase
Underscan
Native
LetterBox_2_35
Centered
Contrast
Red Level
(R5)
Component Level
(R2)
Pillar Box
Cropped
Hue
(R6)
Blue Level
(R5)
Motion Correct.
*
V size...
V Ene...
H Total
Overscan
LetterBox_1_78
1_1
Brightness
Anamorphic
Full screen
Color
Green Level
(R5)
(A3) displayed when an
input is active
(R1) Analog Computer Input
(R2) Analog Input
(R3) Video Input
(R4) EDTV/HDTV Input
(R5) RGB or YUV or YC or CV
(R6) NTSC Input
(R7) Interlaced 50 Hz
(R8) Interlaced 60 Hz
(R9) SDTV input
The Menu allows to improve the thres-
hold of the comb filter.
0% means no adjustments and 100%
is the max. The setting is manual with
a visual correction.
The result is the removal of the alia-
sing in the moving picture.
* Motion Correction
L
GROUND
R
UNBALANCED
LEFT
RIGHT
GROUND
