Chapter 3 89
Removing the Main Board
1. See “Removing the Battery Pack” on page 64.
2. See “Removing the SD dummy card” on page 64.
3. See “Removing the ExpressCard dummy card” on page 65.
4. See “Removing the Lower Cover” on page 65.
5. See “Removing the DIMM” on page 66.
6. See “Removing the WLAN Board Modules” on page 67.
7. See “Removing the Hard Disk Drive Module” on page 68.
8. See “Removing the Keyboard” on page 71.
9. See “Removing the Middle Cover” on page 72.
10. See “Removing the LCD Module” on page 74.
11. See “Separating the Upper Case from the Lower Case” on page 78.

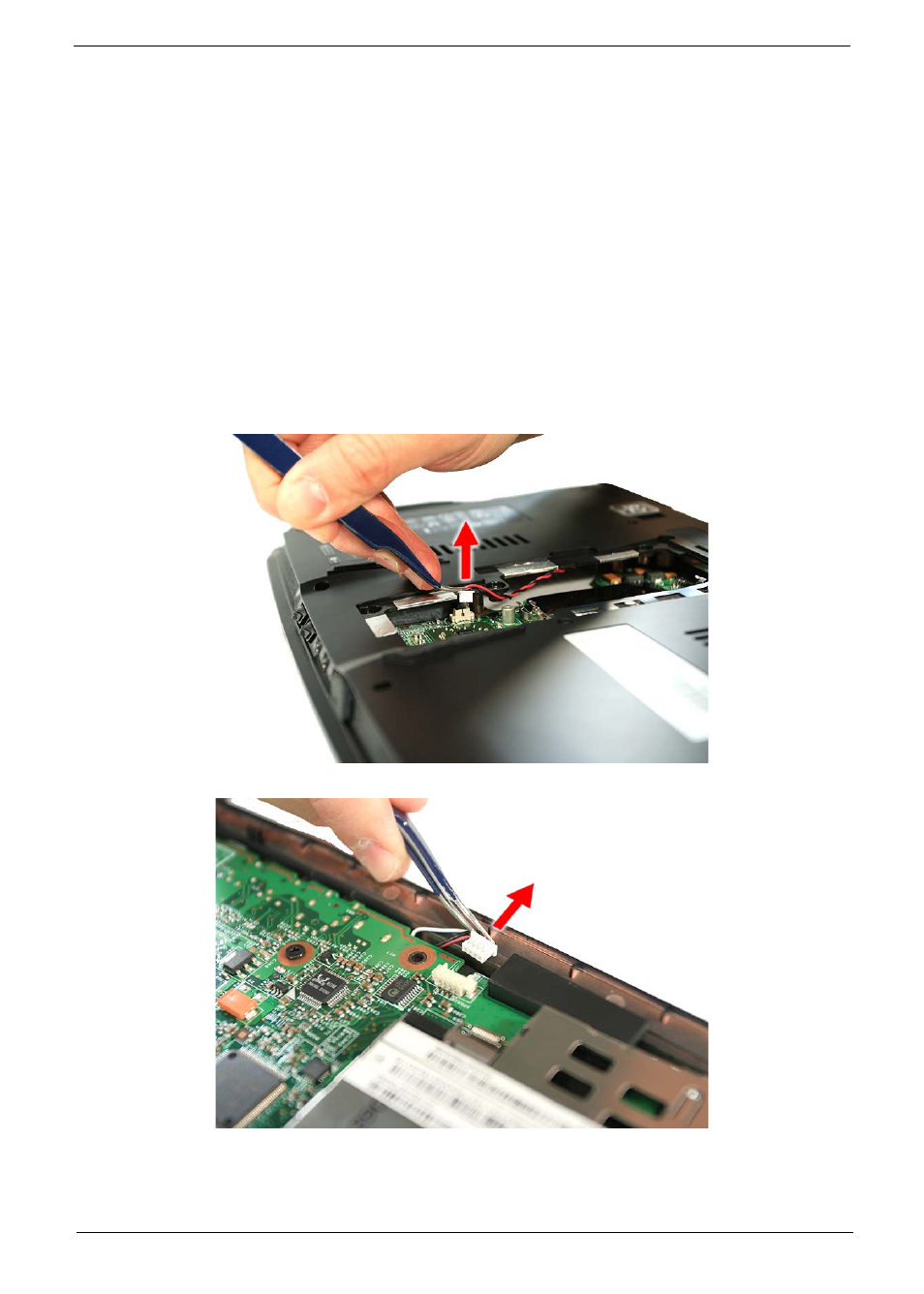

12. Disconnect the RTC battery cable from RTC1 on the main board.
13. Disconnect the speaker cable from the SPKR1 on the main board.
