68

Chapter 3

4.

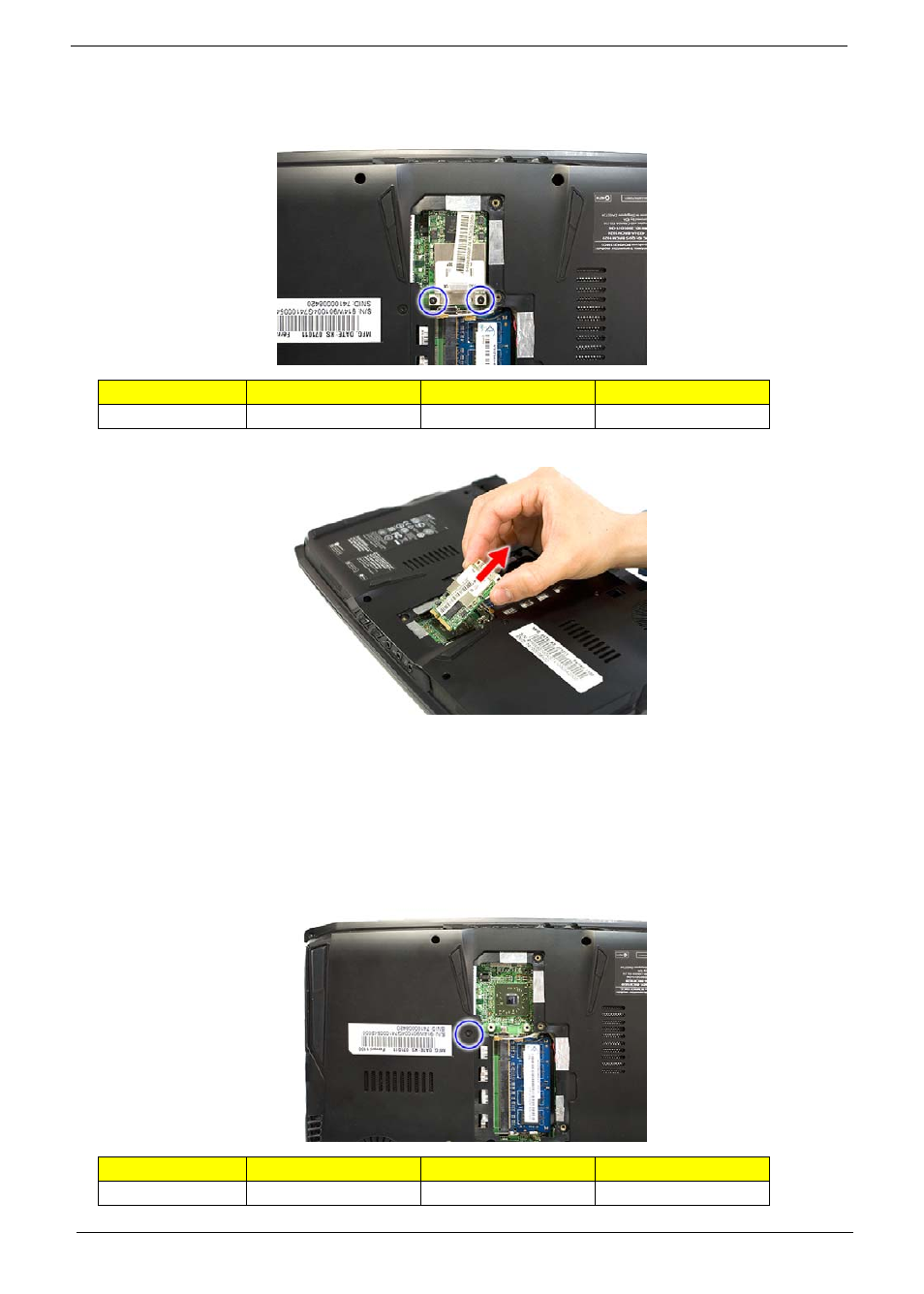

Move the antenna away from the WLAN board and remove the two screws (F) on the WLAN board to
release the WLAN board.

5.

Detach the WLAN board from the WLAN socket.

NOTE: When attaching the antenna back to the WLAN board, make sure the cable are arranged properly.

Removing the Hard Disk Drive Module

1.

See “Removing the Battery Pack” on page 64.

2.

See “Removing the Lower Cover” on page 65.

3.

Remove the one screw (F) securing the hard disk drive module.

Step

Size (Quantity)

Color

Torque

1~2

M2 x L4 (2)

Black

1.6 kgf-cm

Step

Size (Quantity)

Color

Torque

1

M2 x L4 (1)

Black

1.6 kgf-cm
