Lcd module disassembly process, Lcd module disassembly flowchart, Lcd module disassembly – Acer 1200 User Manual
Page 109
Chapter 3
99
LCD Module Disassembly Process

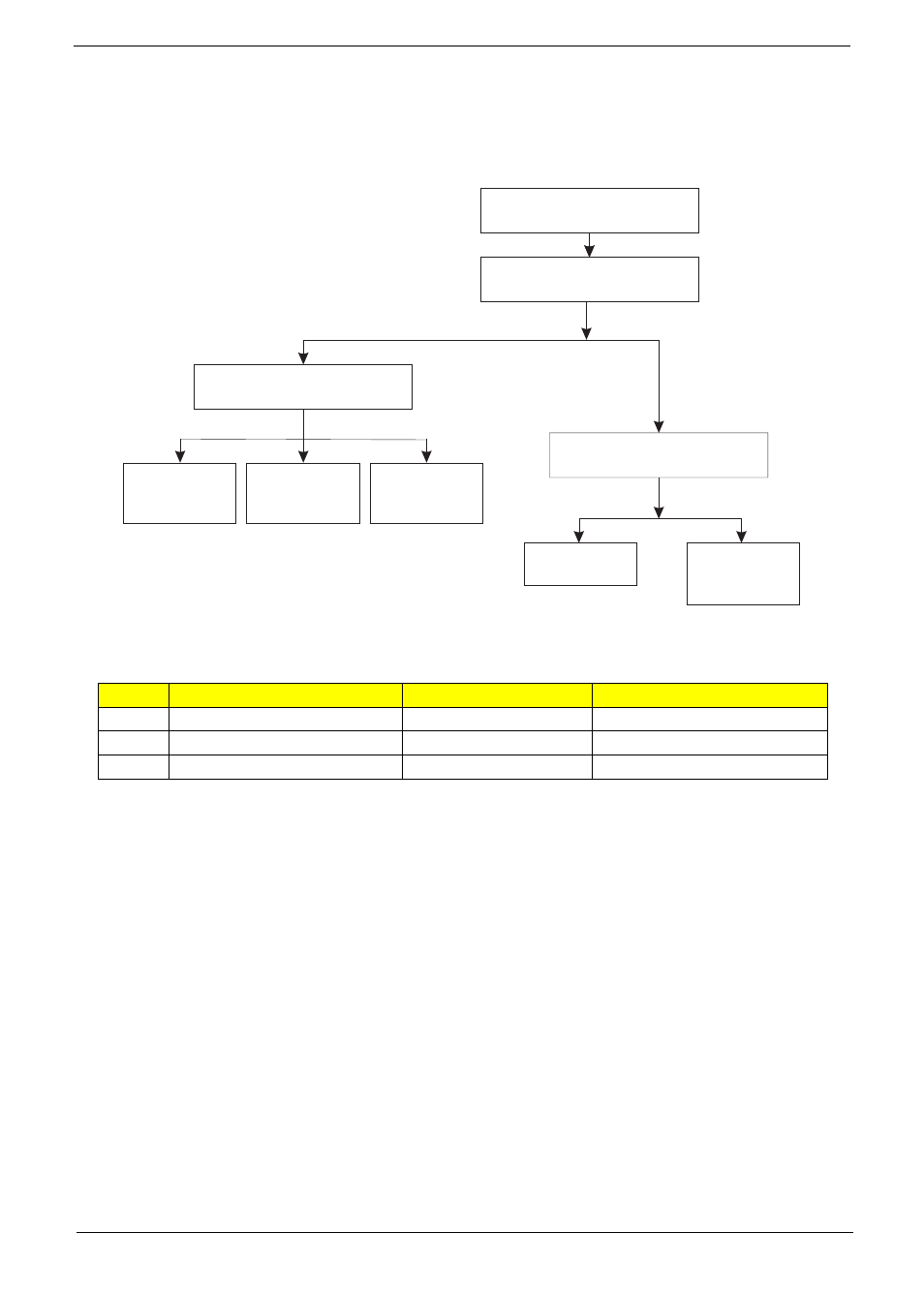

LCD Module Disassembly Flowchart
Screw List
Item
Screw
Color
Part No.
H
M2 x L4
Black
86.00G58.725
I
M2 x L4
Silver
86.00G92.524
J
M2 x L3
Silver
86.00C07.220
LCD MODULE
LCD BEZEL
Hx6
LCD ASSEMBLY
LEFT LCD
BRACKET
Jx2
RIGHT LCD
BRACKET
Jx2
LCD FPC
CABLE
LCD BACK PANEL
ANTENNAS
LCD MODULE DISASSEMBLY
Ix6
VGA
CAMERA
