Chapter 1

7

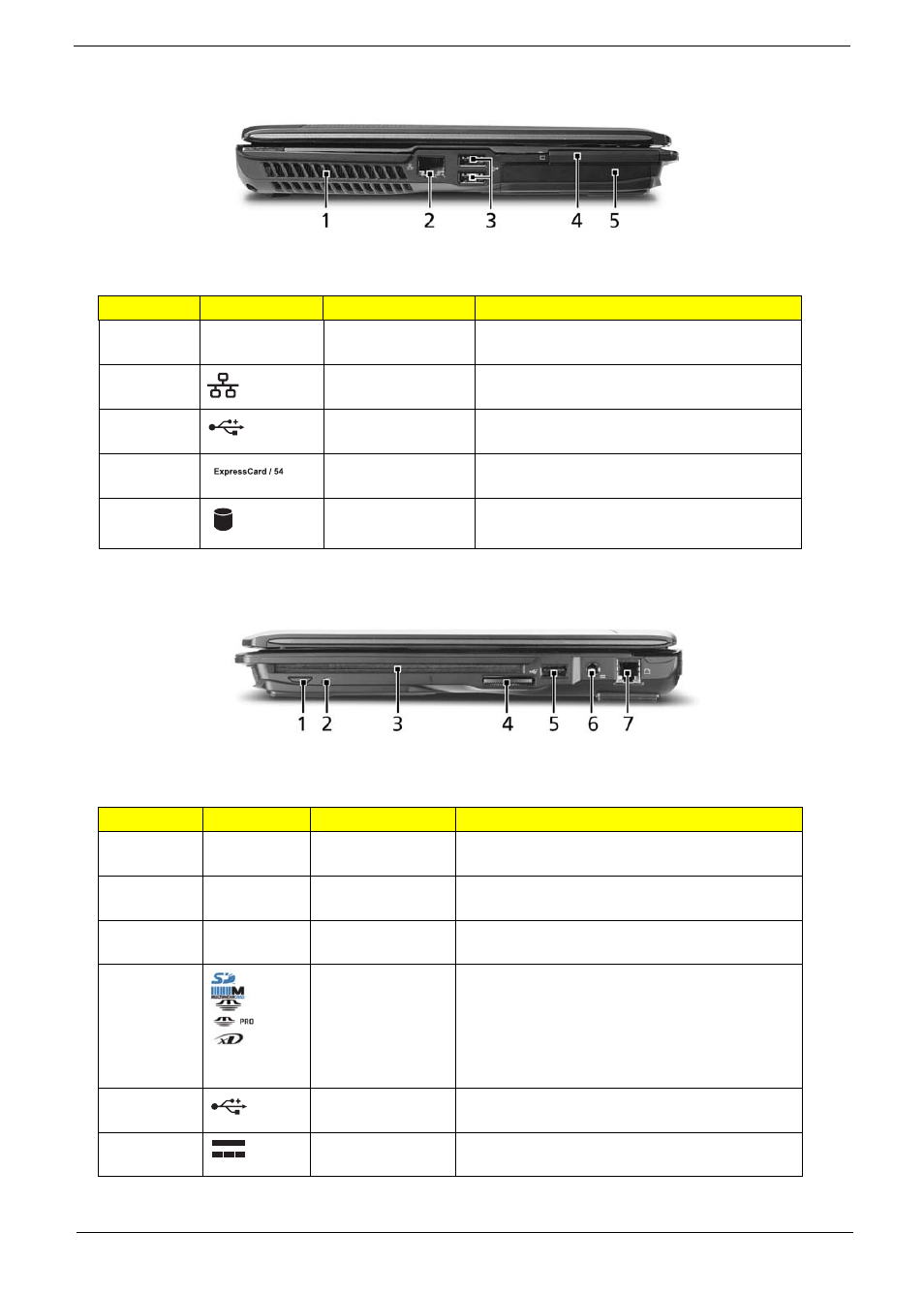

Left View

Right View

#

Icon

Item

Description

1

Ventilation slots

Enable the computer to stay cool, even after
prolonged use.

2

Ethernet (RJ-45)
port

Connects to an Ethernet 10/100-based
network.

3

2 USB 2.0 ports

Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).

4

ExpressCard/54
slot

Accepts one ExpressCard/54 module.

5

Hard disk bay

Houses the computer’s hard disk (secured
with screws)

Icon

Item

Description

1

Slot-load optical
drive eject button

Ejects the optical disk from the drive.

2

Optical disk
access indicator

Lights up when the optical drive is active.

3

Slot-load optical
drive

Internal optical drive; accepts CDs or DVDs.

4

5-in-1 card reader

Accepts Memory Stick (MS), Memory Stick PRO
(MS PRO), MultiMediaCard (MMC), Secure
Digital (SD) and xD-Picture Card (xD)
(manufacturing option).
Note: Only one card can operate at any given
time.

5

USB 2.0 port

Connect to USB 2.0 devices (e.g., USB mouse,
USB camera).

6

DC-in jack

Connects to an AC adapter.
