Contemporary Research 9 ICE-HE Ethernet Head End
Connecting to ICE-HE Web Server
Once you‘ve established an Ethernet connection to the ICE-HE, enter http://192.168.1.251 to connect
to the unit‘s onboard Web server. You should see the ICE-HE home page in your browser. Your PC‘s IP
address must be in the same group as the ICE-HE. For example, when the HE is set to 192.168.1.251,
your IP address must be set to 192.168.1.x.
View or Change Ethernet Settings Via the ICE-HE Web Server

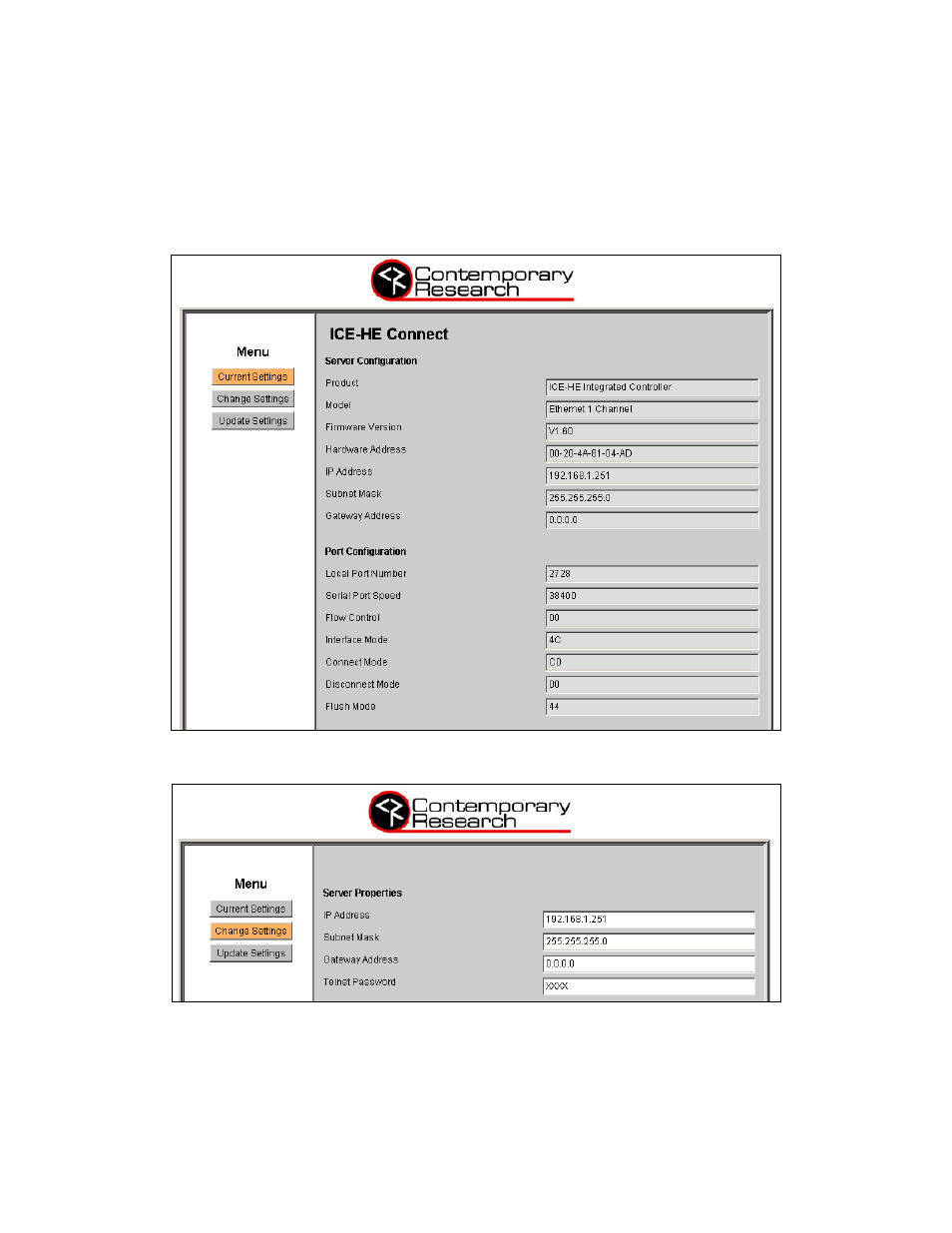

1. When you see the ICE-HE home page, click on the ICE-HE IP Setup Tool link to see the ICE-HE
Connect page:
2. To change the IP settings, click on the Change Settings button on the left.
3. Enter new settings
4. Mark new settings before saving
5. There is a setting for password protection, but that feature is not presently implemented
6. Click on Update Settings to enter new settings
