Installation Instructions

TS318SU/TS318TU/TS325TU

15

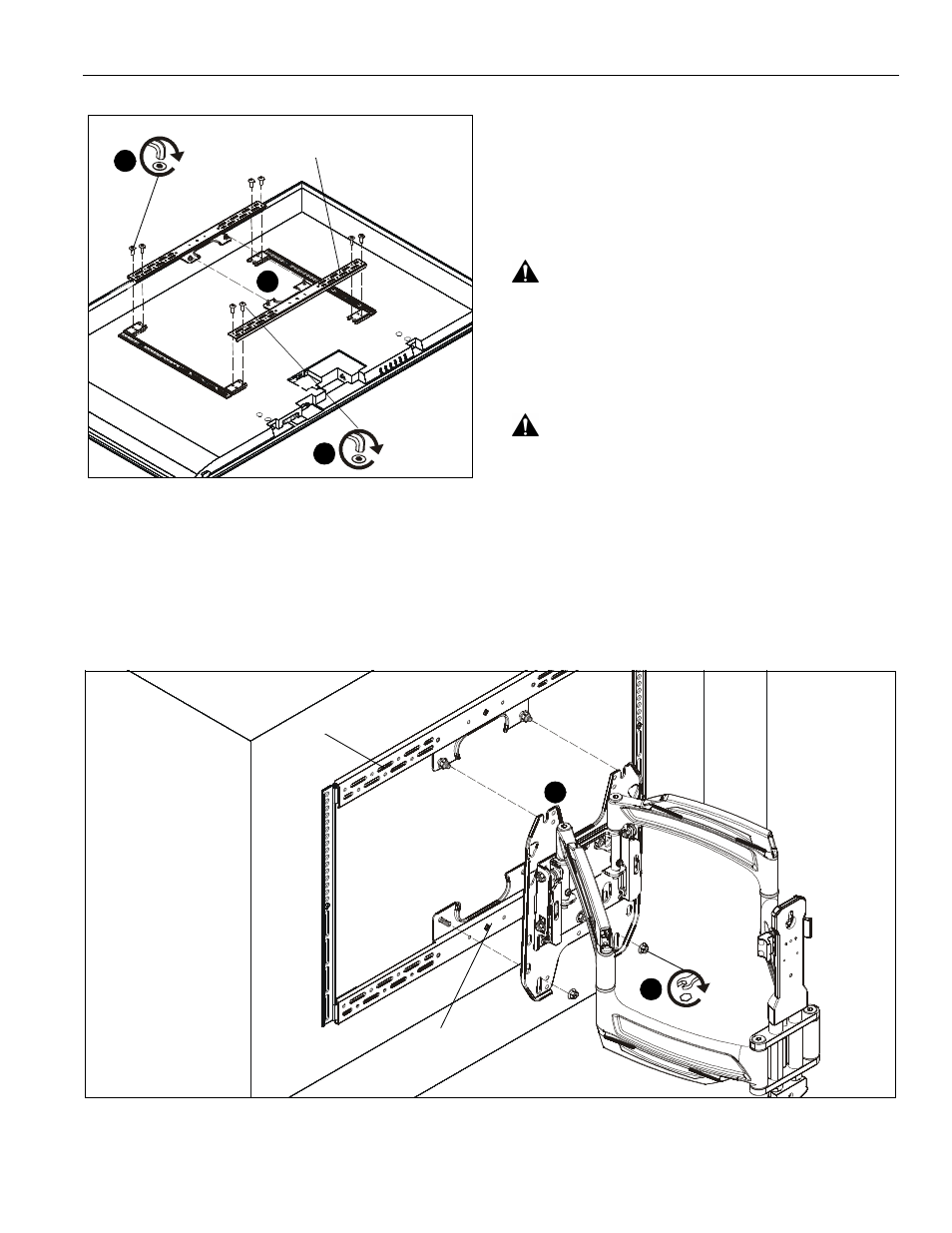

Figure 22

8.

Connect top interface support (R) to uprights (P and Q)
using four #10-24 x 1/2" button head cap screws (W). (See
Figure 22)

NOTE:

If possible install screws diagonally across from each

other in order to provide maximum support in Steps 8
and 9.

9.

Connect bottom interface support (S) to uprights (P and Q)
using four #10-24 x 1/2" button head cap screws (W). (See
Figure 22)

10. When connecting bottom interface support to uprights,

make sure that it is aligned vertically with top interface
support. (See Figure 22)

Install Display to Wall Plate

Using Interface Bracket

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached does not exceed 75 lbs (34 kg).
Use with products heavier than the maximum weight
indicated may result in collapse of the mount and its
accessories causing possible injury.

WARNING:

Display may be very heavy! Ensure display

can be safely lifted and maneuvered as required to install on
wall plate. Failure to take adequate precautions can result in
serious personal injury or damage to equipment!

1.

Hang interface bracket and display to faceplate by placing
two mounting buttons on top interface support (R) over two
teardrop grooves on top of faceplate. (See Figure 23)

2.

Secure interface bracket and display to faceplate by
installing two 1/4-20" flange nuts (X) onto screws on lower
interface support (S). (See Figure 23)

(W) x 4

8

(W) x 4

9

10

(S)

Figure 23

1

2

(X) x 2

(R)

(S)
