VCM
Installation Instructions
6
Pitch (Vertical Elevation) ((Siehe Abb. 6)
7.
Loosen two outside bolts on each end of the VCM mount.
8.
Tilt projector to desired direction.
9.
Securely tighten two outside bolts on each end of VCM
mount.

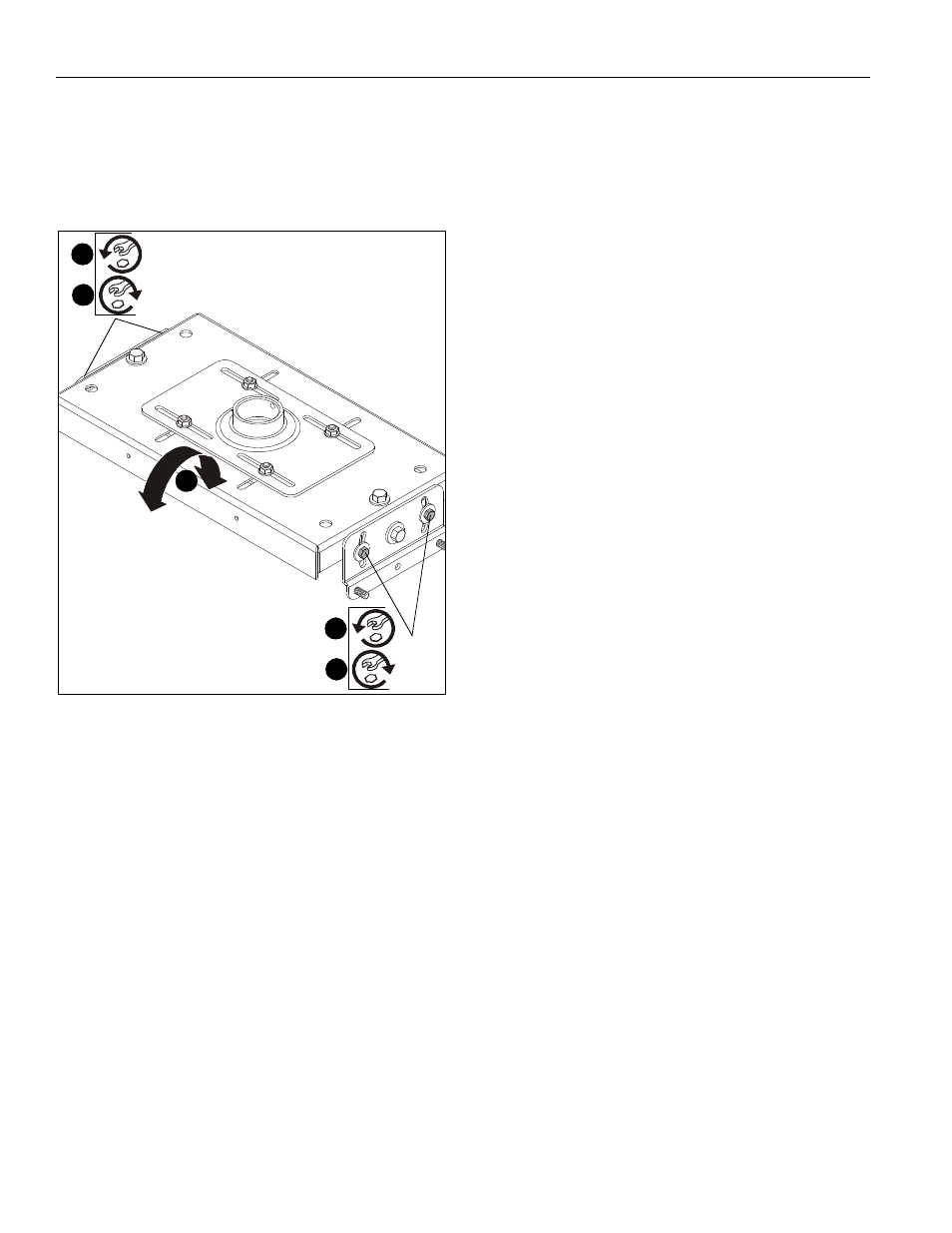

Figure 6
x 2
7
9
8
x 2
7
9
(Interface bracket
and projector not
shown)
