Installation Instructions VCM
5

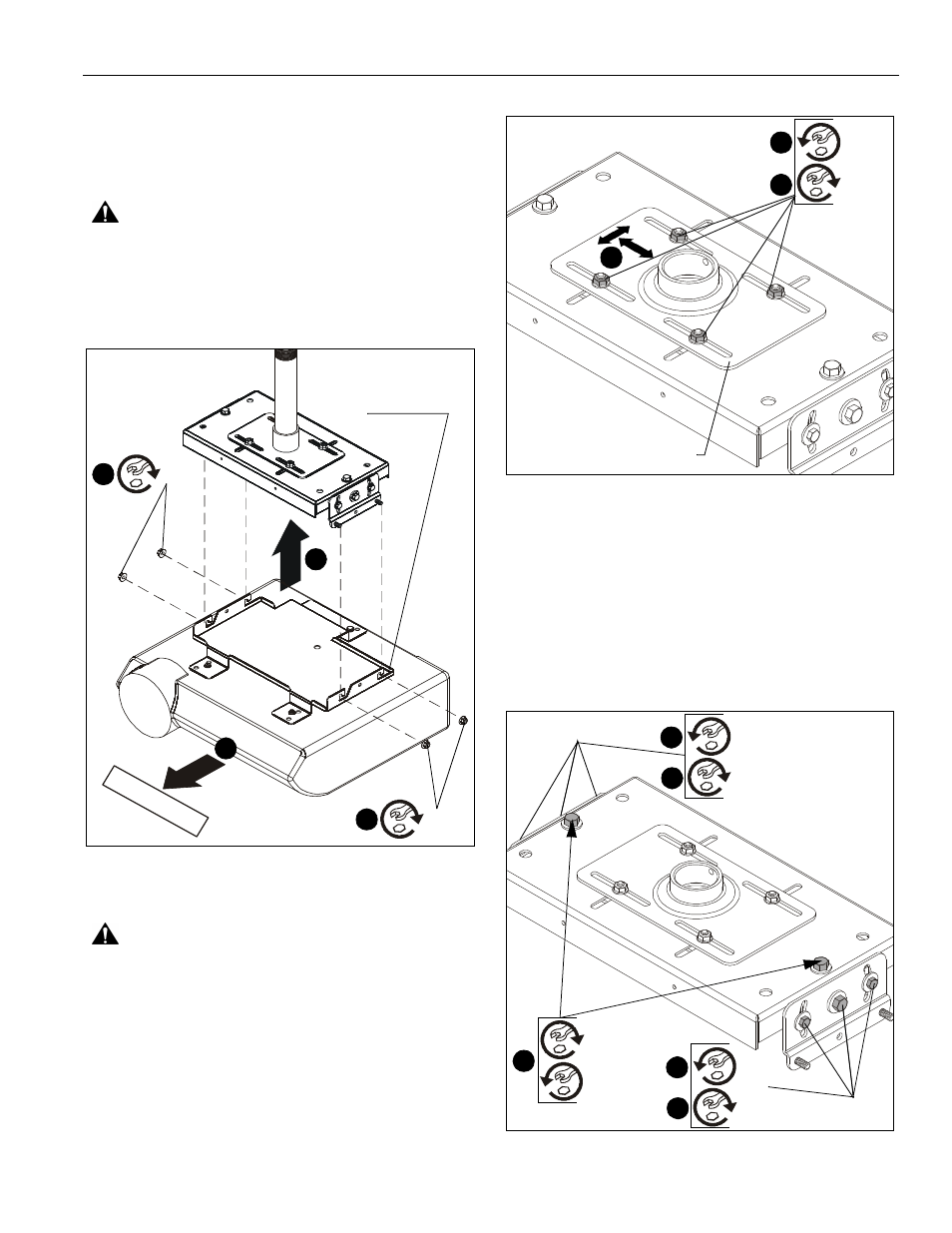

Install Projector with Attached Interface Bracket
1. Orient projector with attached interface bracket so that it is
square to the screen. ((Siehe Abb. 3)
2. Lift the projector and install it to the four studs extending
from the VCM housing. ((Siehe Abb. 3)
WARNING: IMPROPER INSTALLATION CAN LEAD TO
PROJECTOR FALLING RESULTING IN SERIOUS
PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Ensure
that the VCM housing is seated in slots on HB bracket!
3. Tighten the four 5/16" flange nuts. ((Siehe Abb. 3)
Figure 3
Adjustments
WARNING: MOUNTING HARDWARE IS TO BE
LOOSENED ONLY ENOUGH TO ALLOW FOR
NECESSARY MOVEMENT. Over-loosening or removal of
mounting hardware may result in personal injury or serious
damage to equipment!
Horizontal Adjustments ((Siehe Abb. 4)
1. Loosen, but do NOT remove, the four nuts holding the top
slide bracket on the VCM mount.
2. Adjust VCM mount up to 1-1/2" in any direction.
3. Tighten the nuts loosened (in Step 1) on the top slide
bracket.
Figure 4
Roll (Horizontal Tilt) ((Siehe Abb. 5)
4. Loosen three bolts on each end of the VCM mount.
5. Turn adjustment bolts (one at each end of VCM mount top)
as required.
• Turn CLOCKWISE to raise
• Turn COUNTERCLOCKWISE to lower
6. Securely tighten three bolts on each end of VCM mount.
Figure 5
SC
RE
EN
3
2
1
x 2
3 x 2
Example Only
(Interface bracket varies
dependent on projector
model)
2
1
3
x 4
Top slide
bracket
(Interface bracket
and projector not
shown)
x 3
4
6
x 3
4
6
5 x 2
RAISE
LOWER
(Interface bracket
and projector not
shown)
