I 0215 - 6 GB

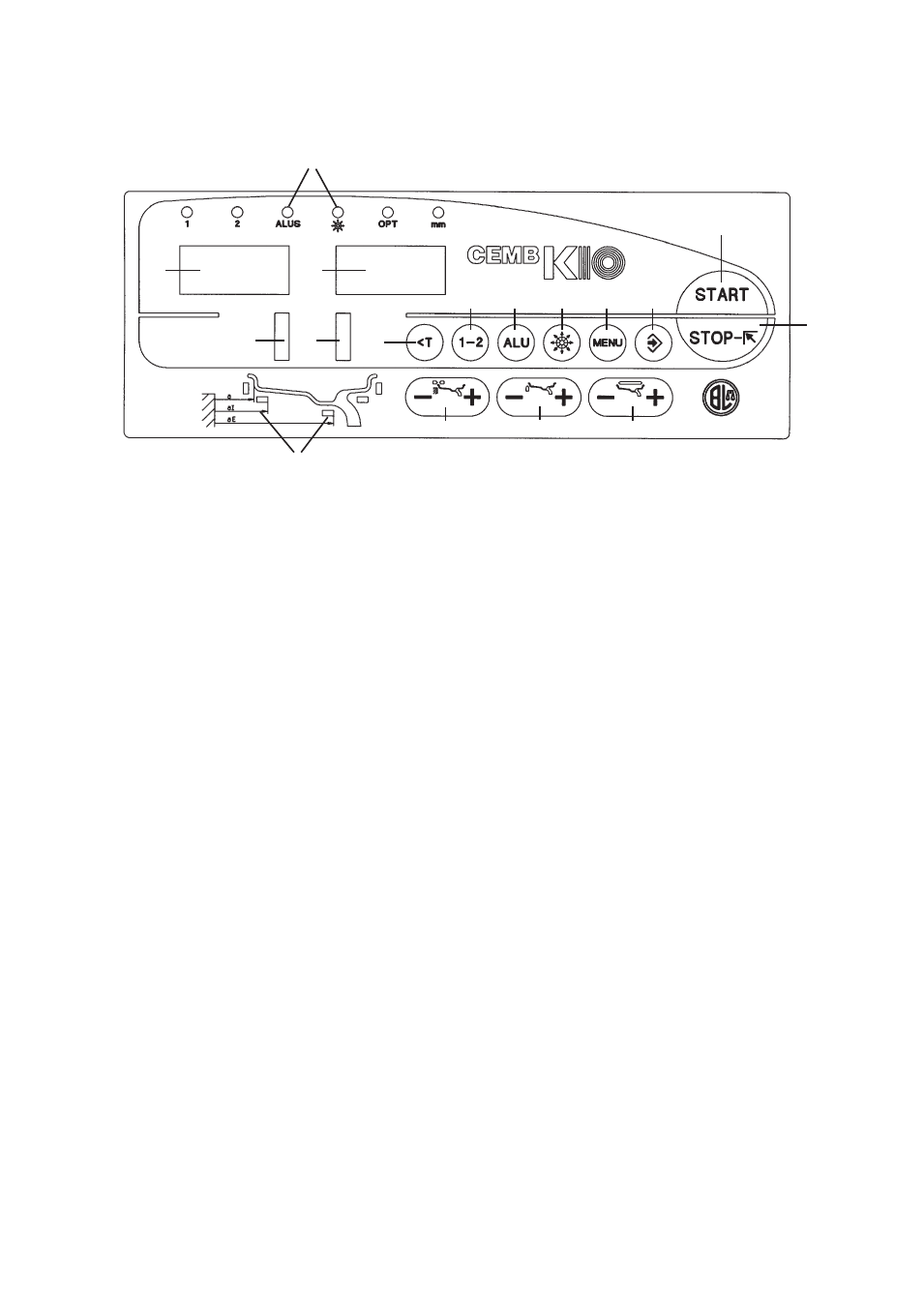

4.2 - CONTROL PANEL AND DISPLAY
Fig. 4
1-2 Digital readouts, AMOUNT OF UNBALANCE,
inside/outside
3-4 Digital readouts, POSITION OF UNBALANCE,
inside/outside
5 Indicators, correction mode selected
6 Indicators, selection made
7 Push button, unbalance reading < 5 g (25 oz)
8 Push button, operator selection
9 Correction mode selection pushbutton
10 Push button, SPLIT (unbalance resolution)
11 Push button, FUNCTIONS MENU
12 Menu selection confirmation pushbutton
13 Push button, cycle start
14 Push button, emergency/home
15 Push buttons, manual DISTANCE setting
16 Push buttons, manual DIAMETER setting
17 Push buttons, manual WIDTH setting
Note: - Press buttons only with your fingers. Never use the counterweight pincers or other pointed objects.
- When the beep signal is enabled (see FUNCTION MENU MANAGEMENT ), pressing of any push
button is accompanied by a “Beep”.
