6 - SET UP
6.1 - SELF-DIAGNOSTICS

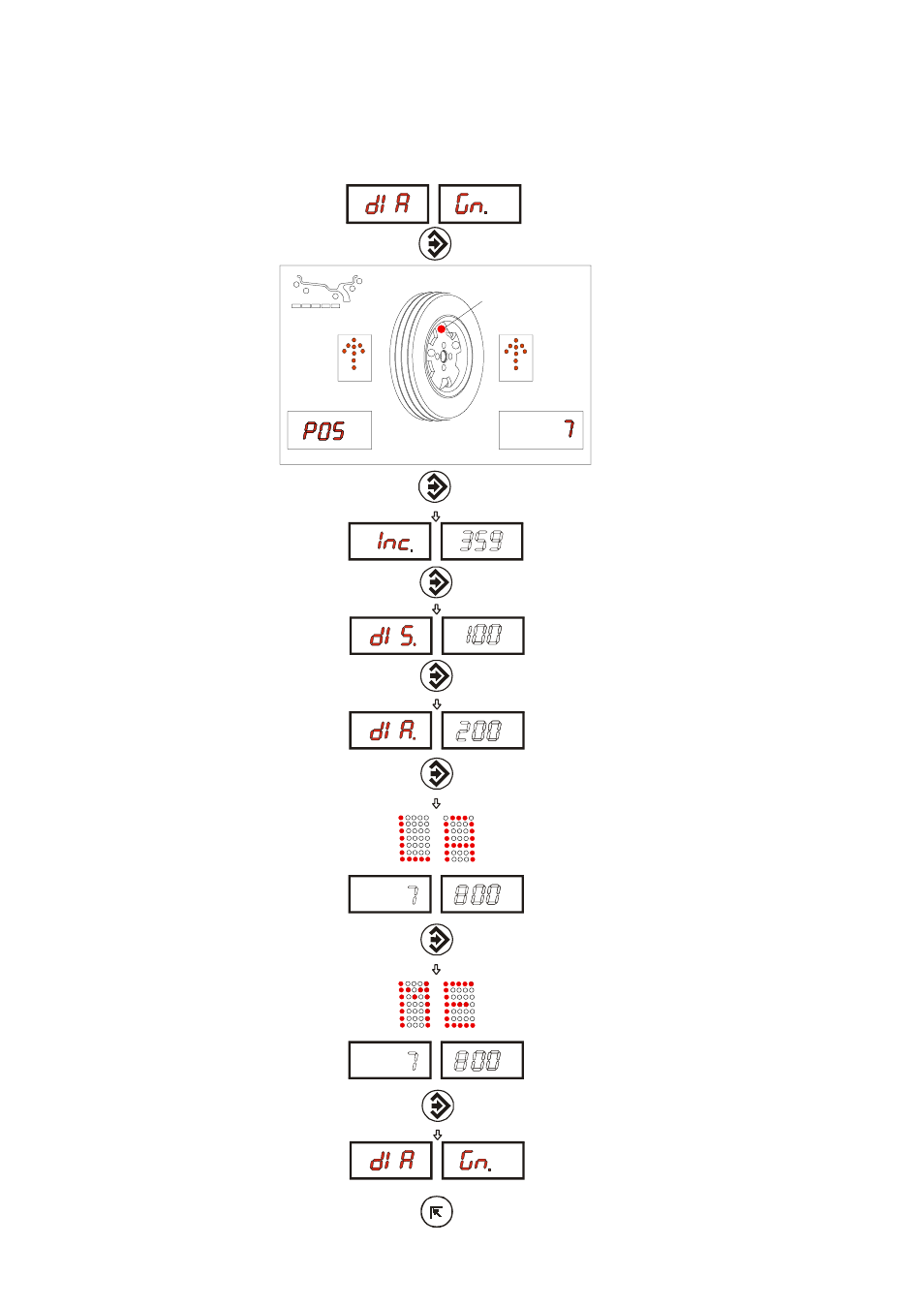

DISPLAY TEST
All displays, readouts and LED’s should light up
- Displays values of rim DISTANCE
sensor
- Displays values of DIAMETER
sensor
- Displys values of WIDTH sensor
(optional)
END OF SELF-DIAGNOSTICS
CANCELS SELF-DIAGNOSTICS
IN ANY PHASE
The RH display indicates the
current position of the wheel, with
numbers from 0 to 127
When the wheel is turned in the
unbalance measurement rotation
direction, the down arrows must
appear.
The central LED for the wheel (1)
must come on ONLY ONCE per
rotation at position 0.
- Test parameter
- Displays eccentricity measurement
sensor values (RUN OUT - option)
