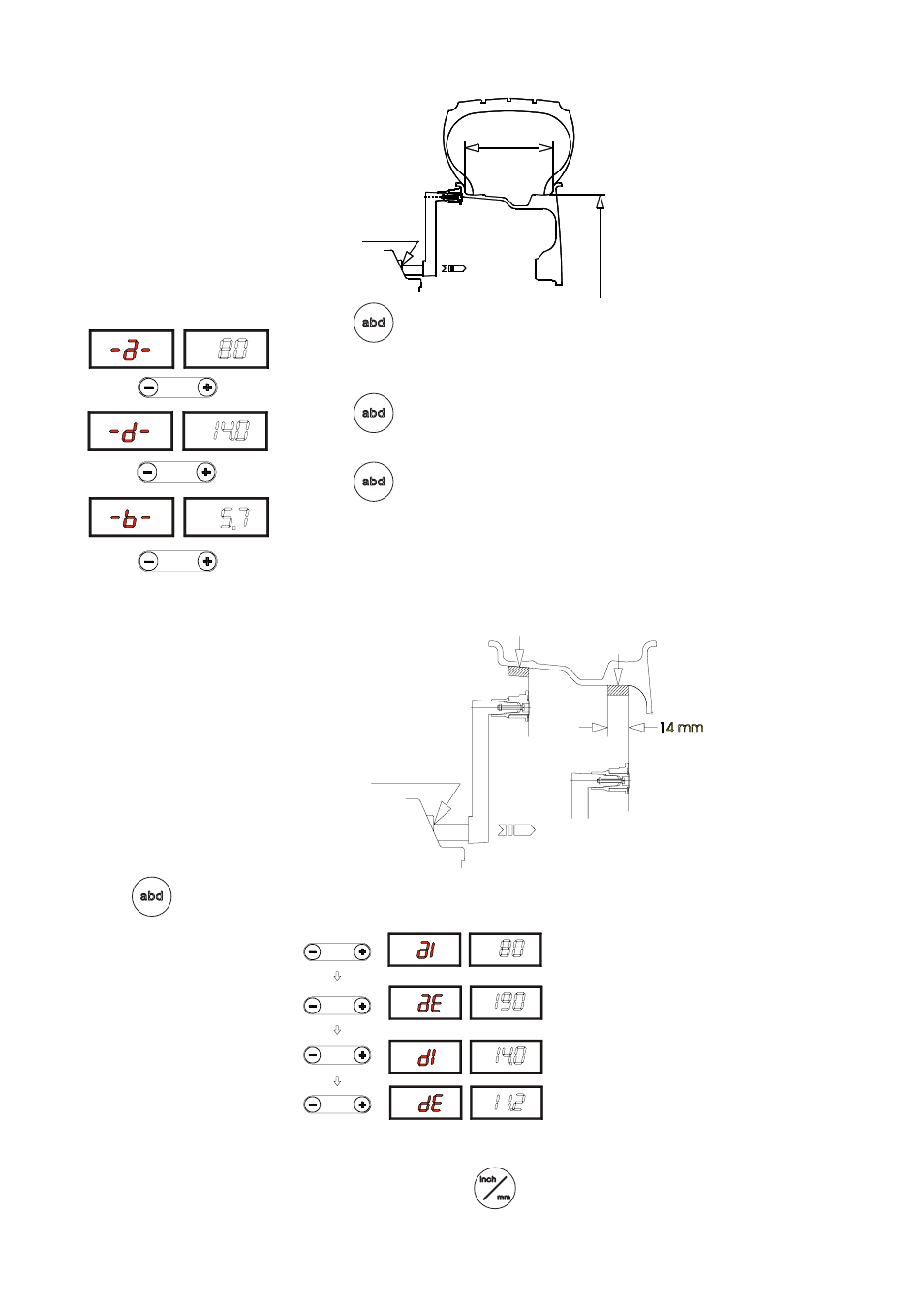

5.2.2 - MANUAL PRESETTING
- Standard wheels
Fig. 11
- Press to read -a- on the display
- Preset distance “a” of the inside of the wheel from the machine (in mm).
- Press to select -d-
- Preset the nominal diameter “d” indicated on the tyre.
- Press to select -b-
- Preset the nominal width which is normally stamped on the rim; if not,
measure dimension “b” with the calibre gauge (supplied as standard).
- Wheel ALU-S
- Measure the dimensions as shown in the
following diagram.
Fig. 12
PRESETTING:
Press to select the measurement to set
N.B.: If dE is not preset, default value dE = 0.8 dl
During setting-up of values -b- -d- -dI- -dE- press button to switch measurement from inches to mm
(on machine start-up, the dimensions are in INCHES).
