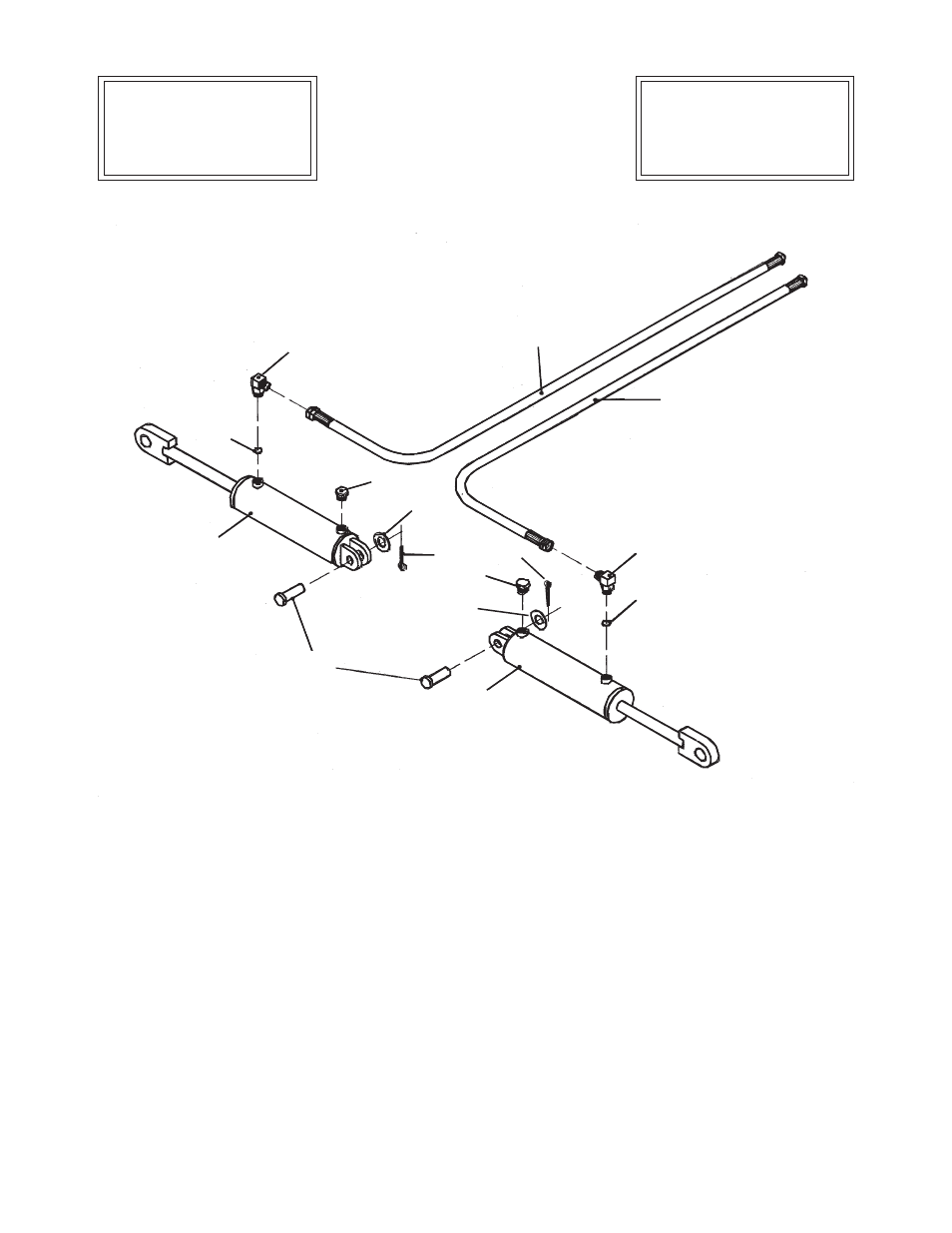

HYD SCHEMATIC
WING LIFT CYL.
ST15 / ST10
Nov. 2003
to
Current
ST15-C31200790311
to
ST15-Current
ITEM
PART NO.
QTY.
DESCRIPTION
1
02980472
2
Cylinder 3 x 12
2
02978615
2
Breather, filter
3
02978616
2
Elbow
4
02978617
2
Hose assembly
5
02978618
2
Restrictor
6
02978527
2
Clevis pin
7
00755153
2
Cotter pin,
8
15B1600
2
Flat washer
1
2
3
4
5
6
7
8
1
2
3
5
4
7
8
