SLIP CLUTCH
Cat IV (540 RPM)
ST15 / ST10
Jan. 2002
to
Current
ST15-C31200557203
to
ST15-Current
Iten Part No. Qty. Description
02978704 - Clutch Asy, Center or Wing 540 RPM
1 02978694 1 Bolt & nut
2 02978719 8 Spring
3 02978720 1 Flanged yoke
4 02978721 1 Bushing
5 00754202 2 Lining ring
6 02978723 1 Flange hub, 1 3/8x21
7 02978724 1 Inner plate
8 02978725 1 Pressure plate
9 02978726 8 Bolt & nut

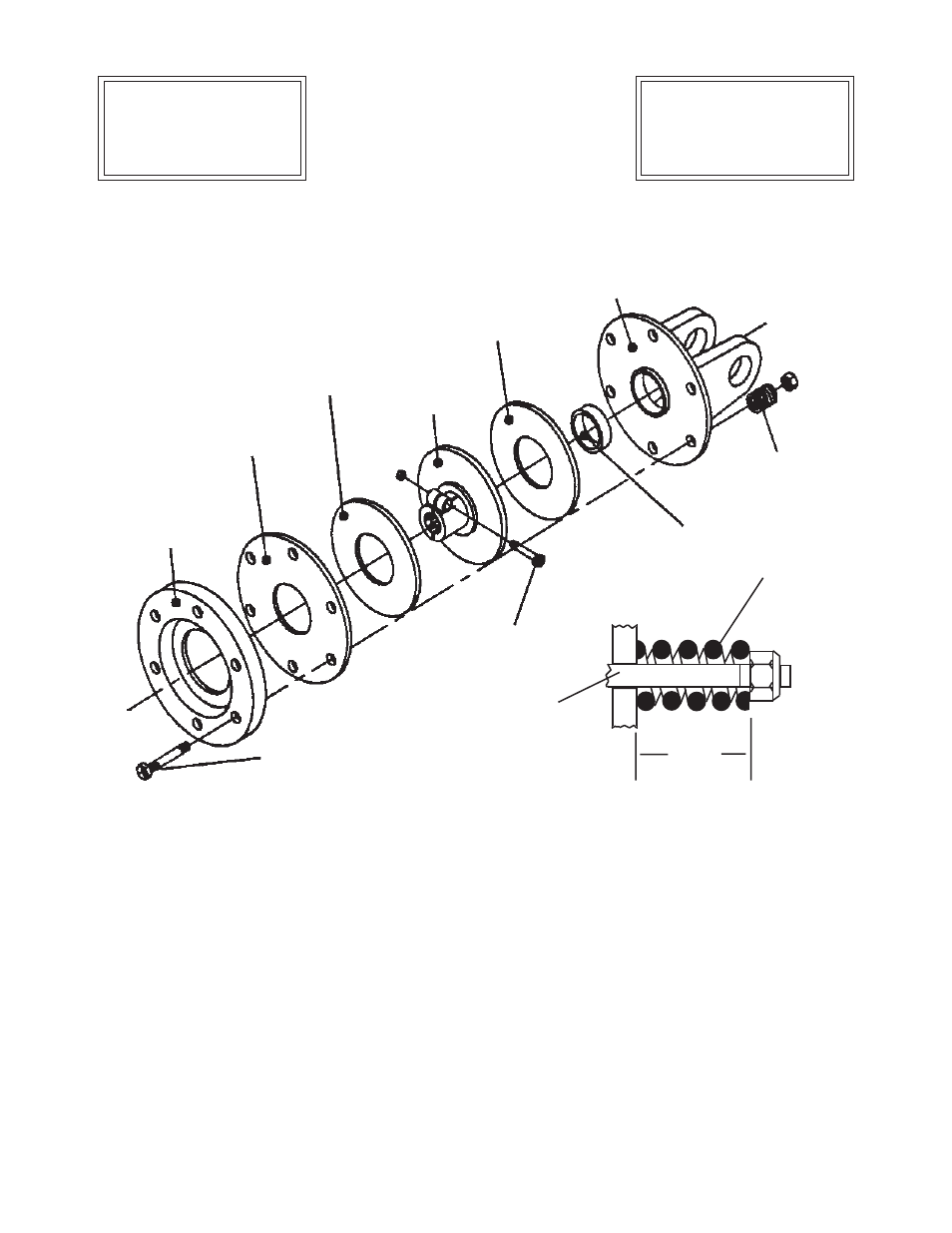

NOTE: To adjust this Slip Clutch tighten Bolts, (item 9) untill Springs, (item 2) are a
compressed length of 1-1/4" as shown in drawing above. When tightening use an
alternating pattern in a cris-cross pattern.
8
7
5
6
10
3
9
1
4
2
1-1/4"
1234
1234
1234
1234
1234
1234
1234
1234
1234
1234
1234
1234
1234
123
123
123
123
123
123
123
123
123
2
9
