Alamo ST15 - Manual (Page 51)

51 ST15 (Archive Book) 01/04
© 2004 Alamo Group Inc.

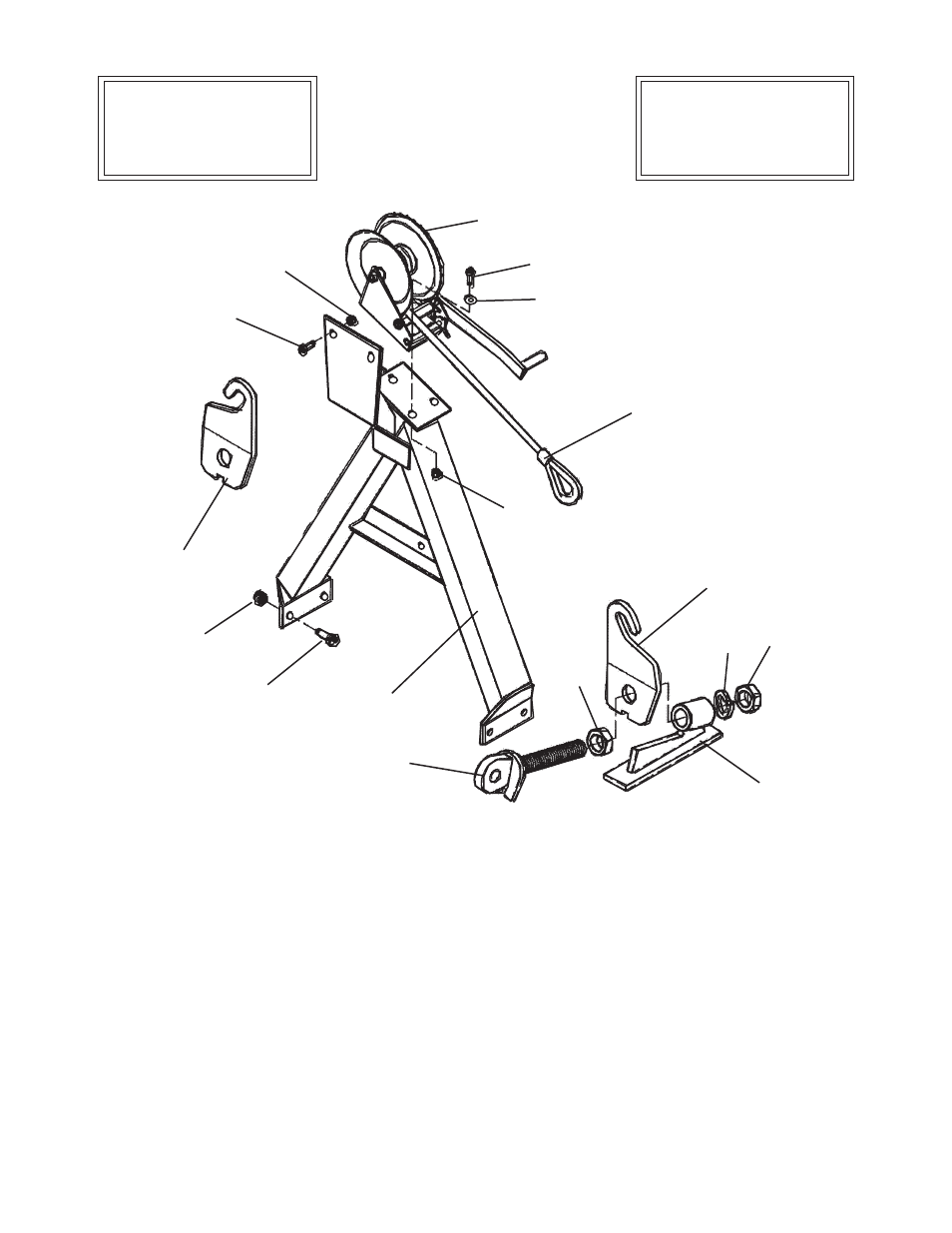

WINCH & STAND
ST15 / ST10
Jan. 2002
to
Current
ST15-C31200557203
to
ST15-Current
Item Part N0. Qty Description
02978897 -- Winch & Stand Kit (Optional)
1 02978933 1 Winch, 1600 lb., 5.1:1 ratio
2 00753642 3 Bolt
3 15B600 3 Flat Washer
4 02978934 1 Cable
5 00015800 5 Lock Nut
6 02978935 1 Winch Lift Stand
7 02978936 1 Winch Lift Lug, Right
8 02978937 1 Winch Lift Lug, Left
9 02776600 4 Bolt
10 00001800 4 Lock Nut
11 10180500 2 Bolt
NOTE: Items 12 through 15 are not included in Winch Kit # 02978897, they are already on the Wing
Section of mower as part of Wing Axle. See Deck Components Section for these parts
1
2
3
4
5
6
7
8
5
9
10
11
12
13
14
15
14
