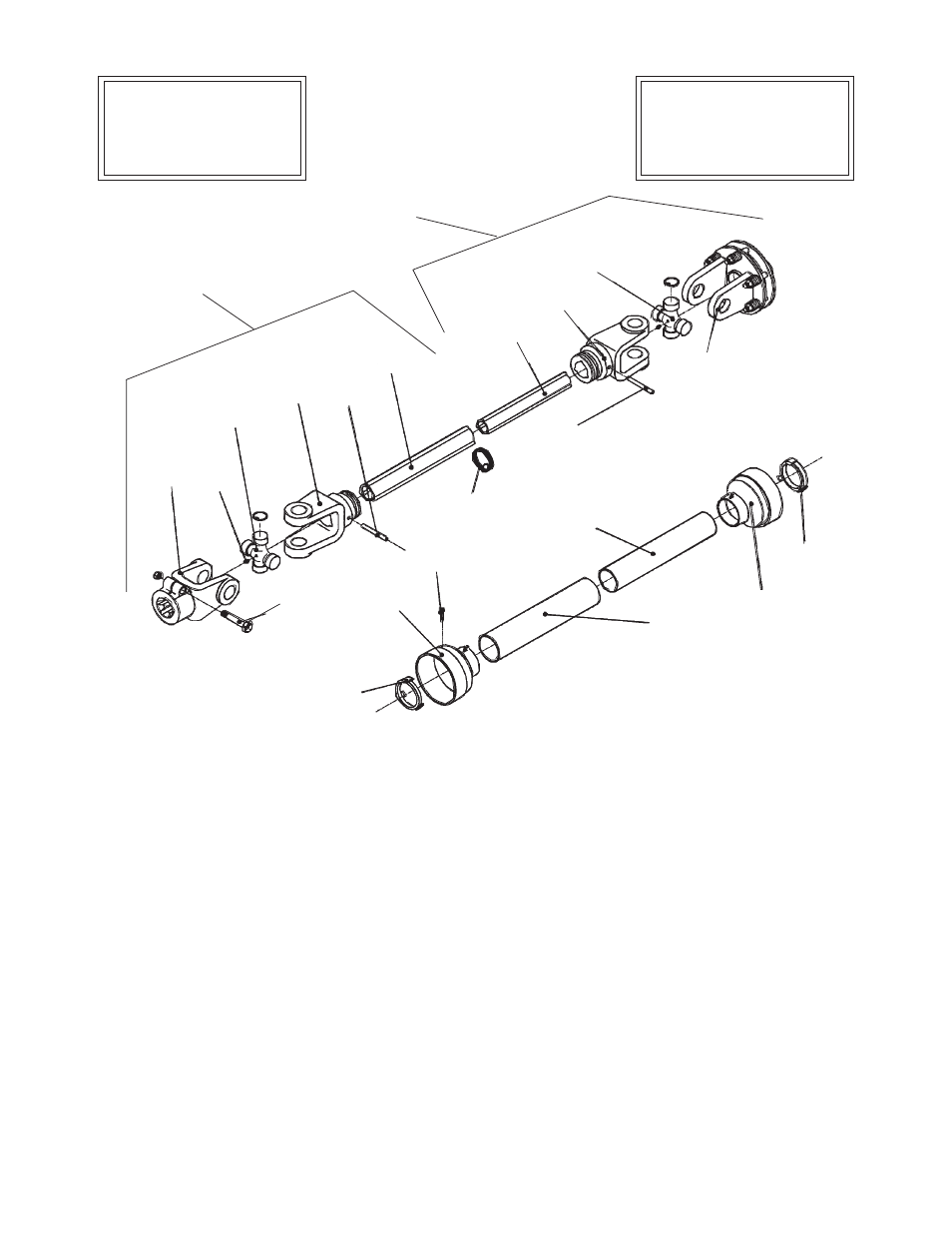

WING DRIVELINE
Cat IV (540 or 1000)
ST15 / ST10
Jan. 2002
to
Current
ST15-C31200557203
to
ST15-Current
Item
Part No.
Qty. Description
02978693
1
Driveline Asy. Wing
1.
02978705
1
Driveline Half Asy.
Clamp Yoke End
2.
02978706
1
Driveline Half Asy,
Clutch End
3
02978694
4
Bolt & Nut
4
02978695
1
Cllamp Yoke
5
02978696
2
Universal Joint
6
02978697
1
Yoke, Outer
7
02978698
1
Roll pin
8
02978699
1
Shield Support
9
02978700
1
Tube, Outer
10
02978701
1
Tube, Inner
Item
Part No.
Qty. Description
11
02978702
1
Roll Pin
12
02978703
1
Yoke, Inner
13
02978667
1
Grease Fitting
14
02978704
1
Clutch Asy
15
02978663
2
Grease Fitting
16
02978707
1
Retaining Collar
17
02978708
1
Outer Cone
18
02978709
6
Bolt
19
02978710
1
Shield Asy, Outer
20
02978711
1
Shield Asy, Inner
21
02978712
1
Clutch Cone
22
02678713
1
Retaining Collar
2
15
5
6
7
9
10
12
5
16
17
18
20
19
21
22
1
4
3
8
11
14
