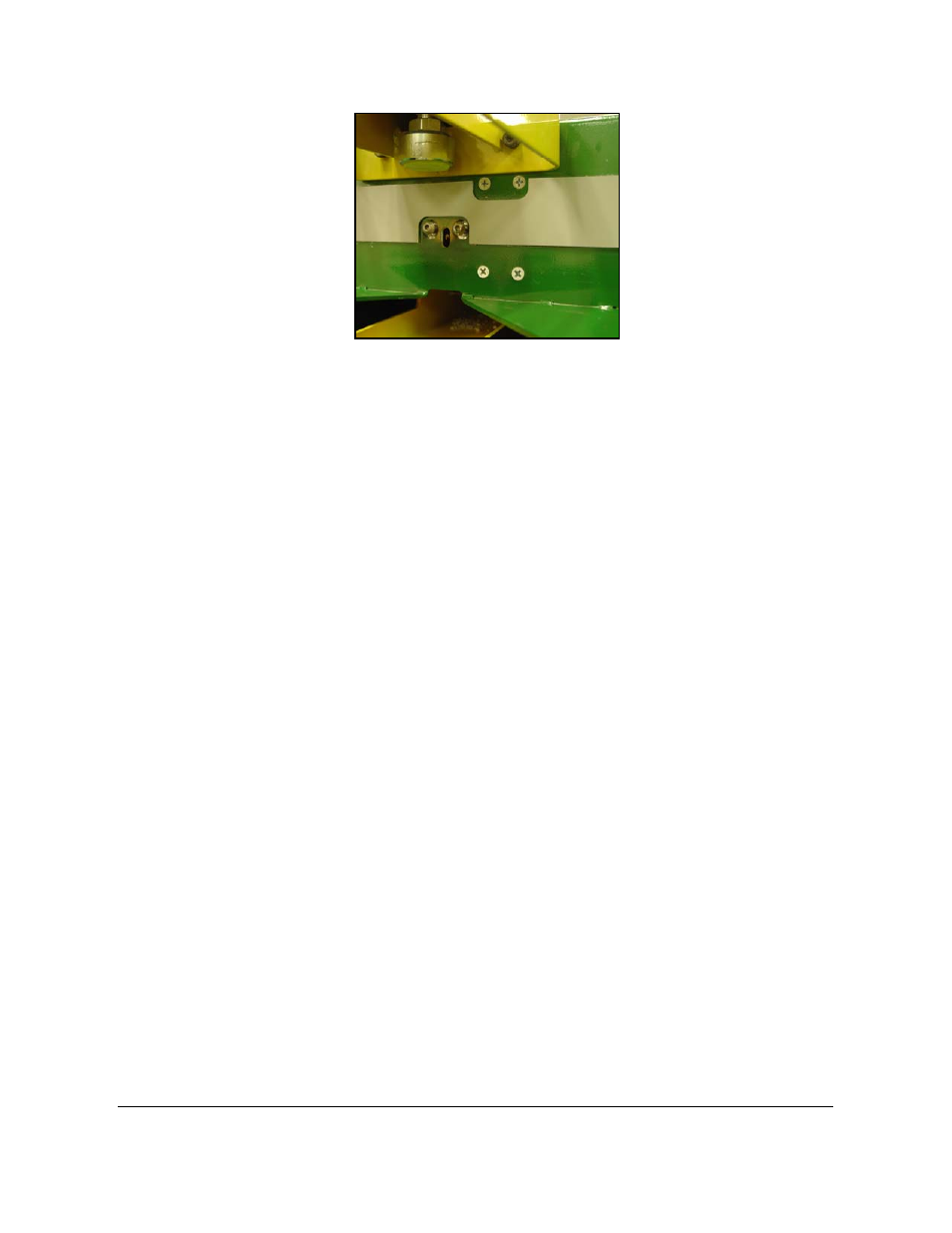

Fig 29
• Turn on the power to the machine and make a test pocket.
• If the drill still stalls in the pocket, loosen and remove the screws that secure the magnet and
the reed switch to the machine case.
• Make sure that the side of the magnet housing with the notch in it is facing away from the
reed switch. This ensures that the magnet is as far from the reed switch as possible.
• If there is no notch in the housing, then detach it from the machine and visually inspect it.
Make sure that the magnet is turned so that it is farthest from the reed switch.
• If possible, use a small file or drill bit to slot the mounting holes on the plastic housings, and
then reinstall the magnet and the reed switch.
• If the drill still stalls in the pocket test with a continuity tester as described in Section 7.2
Safety Switch (page 33). If no continuity registers, a new switch assembly will be needed.
