Warning:
Do not introduce lubricants, oils, or solvents into the pneumatic system. Irreparable
damage to pneumatic seals and components may occur. Using lubricants in the pneu-
matics of your TSM-21 may void your Warranty!
• Inspect the T-Knobs and the U-Bolt on the carriage (Fig 3), making sure that the motors are
secure and tight.

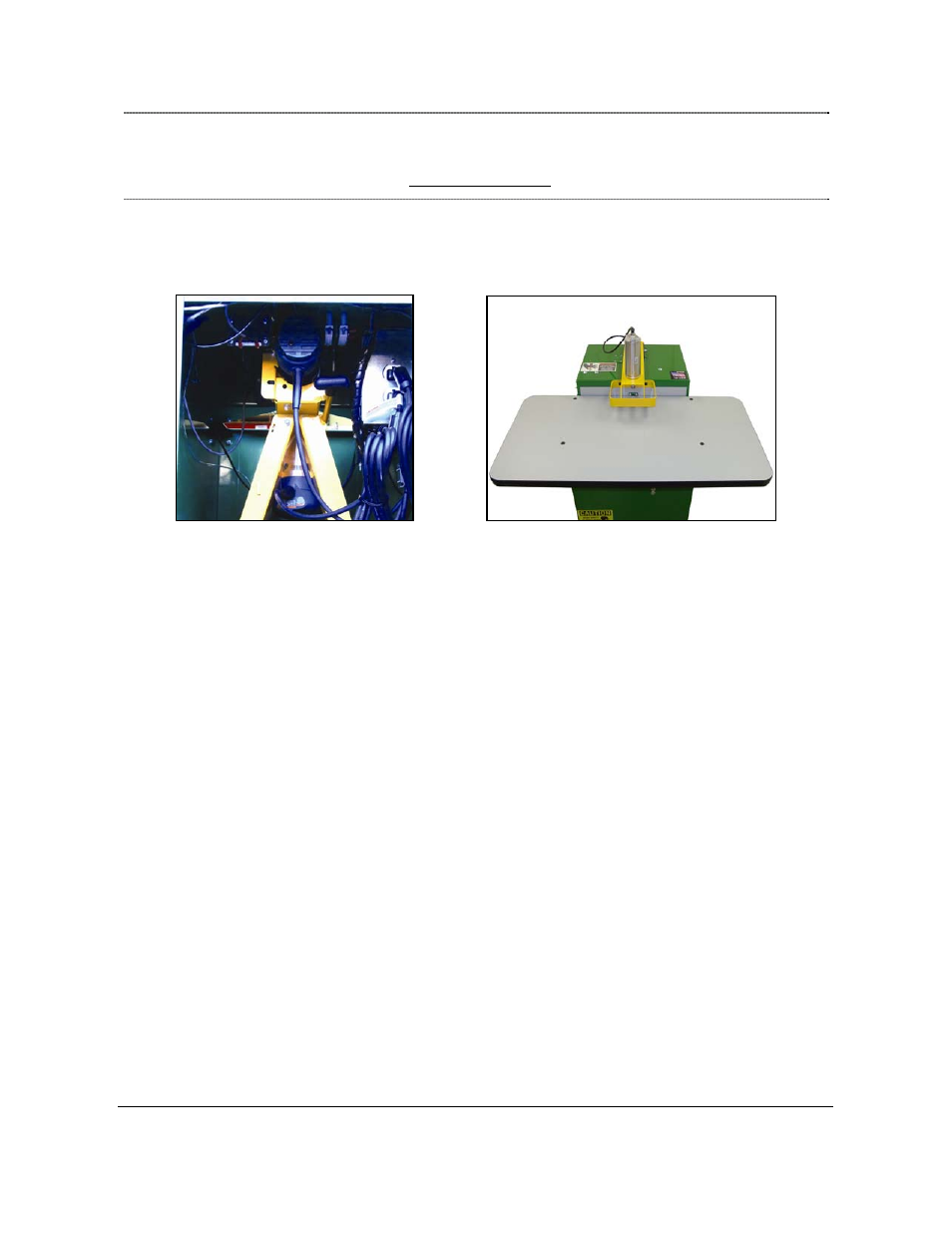

Fig 3 Fig 4
• Using the wrenches located inside the rear of the machine make sure the router bit and the
drill bit are secure in the respective collets.
• Install the Work Top with the 4 flat head bolts and nylock nuts supplied. (Fig 4)
• From the rear of the machine rock the carriage fully forward and backward, by hand,
mimicking its working motion. Make sure that nothing is blocking the motion of the carriage
or the cutting bits.
• Plug the machine into a grounded 115VAC, 20-amp outlet.
