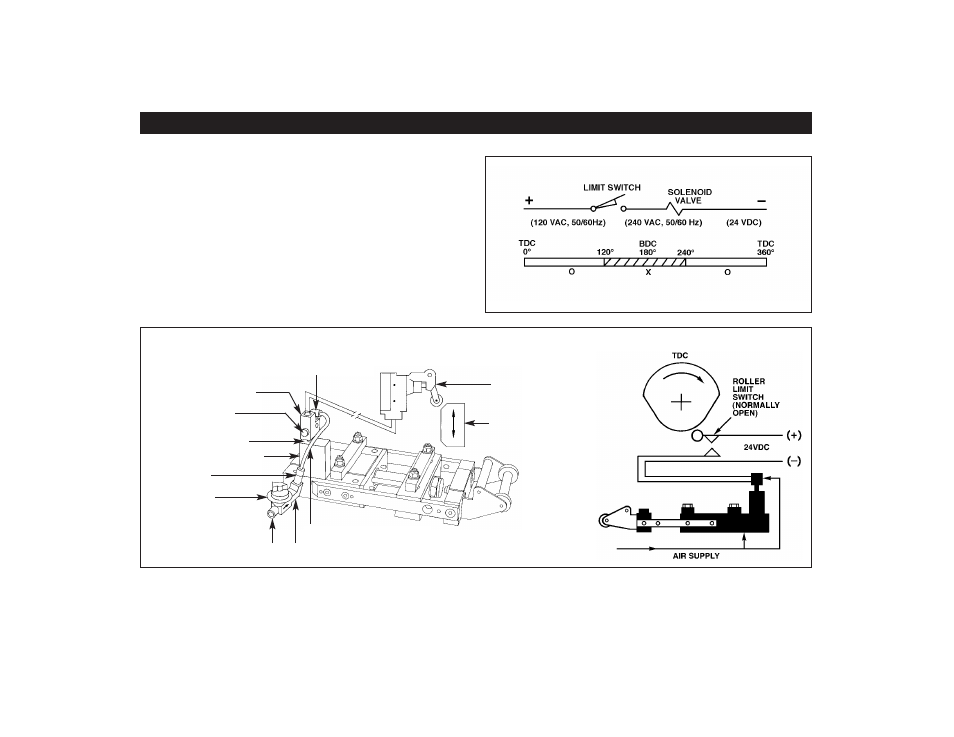

CONTROLLING THE FEED

REMOTE ELECTRIC ACTUATION

To control the timing of the Feed Slide motion
electrically, install the 3-Way Solenoid Valve on top
of the P.O.V. and wire into a Limit Switch. Mounting
a Linear Cam on the Press Ram Slide or installing a
Rotary Cam on the crankshaft are two ways to
electrically control the Feed Cycle.

Many new presses today are equipped with electronic
Programmable Controllers and/or electronic Rotary
Limit Switches. Specify 24 VDC for Solenoid Valve.

LINEAR CAM OPERATION

ROTARY CAM OPERATION

ELBOW CONNECTOR TO TEE AT SUPPLY PORT NO. 1

3-WAY SOLENOID VALVE

MANUAL OVERRIDE

HEX NIPPLE TO VALVE

PISTON OPERATED VALVE

CONNECTION

3-WAY ON/OFF
SELECTOR VALVE
RECOMMENDED

ROLLER LIMIT SWITCH

LINEAR CAM/BRACKET

TEE FITTING AT AIR INLET

1/4” (6MM) POLYFLO TUBING

AIR SUPPLY
