Document No: 9100-127-1112-99 REV B
Issued: April 03, 2009
Sheet 2 of 2
OBSTRUCTION / VISUAL SIGNAL LIGHT
SINGLE and DUAL FIXTURES
INSTALLATION INSTRUCTIONS and PARTS LIST
1501 Route 34 South, Farmingdale, NJ 07727 USA Tel: [+1] 732-919-3119 Fax: [+1] 732-751-5778 www.dialight.com
REV ECO NO DRN CHD APP CM DATE
A ----- AV MES KJZ JB 8/22/2008
B 09040206 ALV KH RA JB 4/13/2009

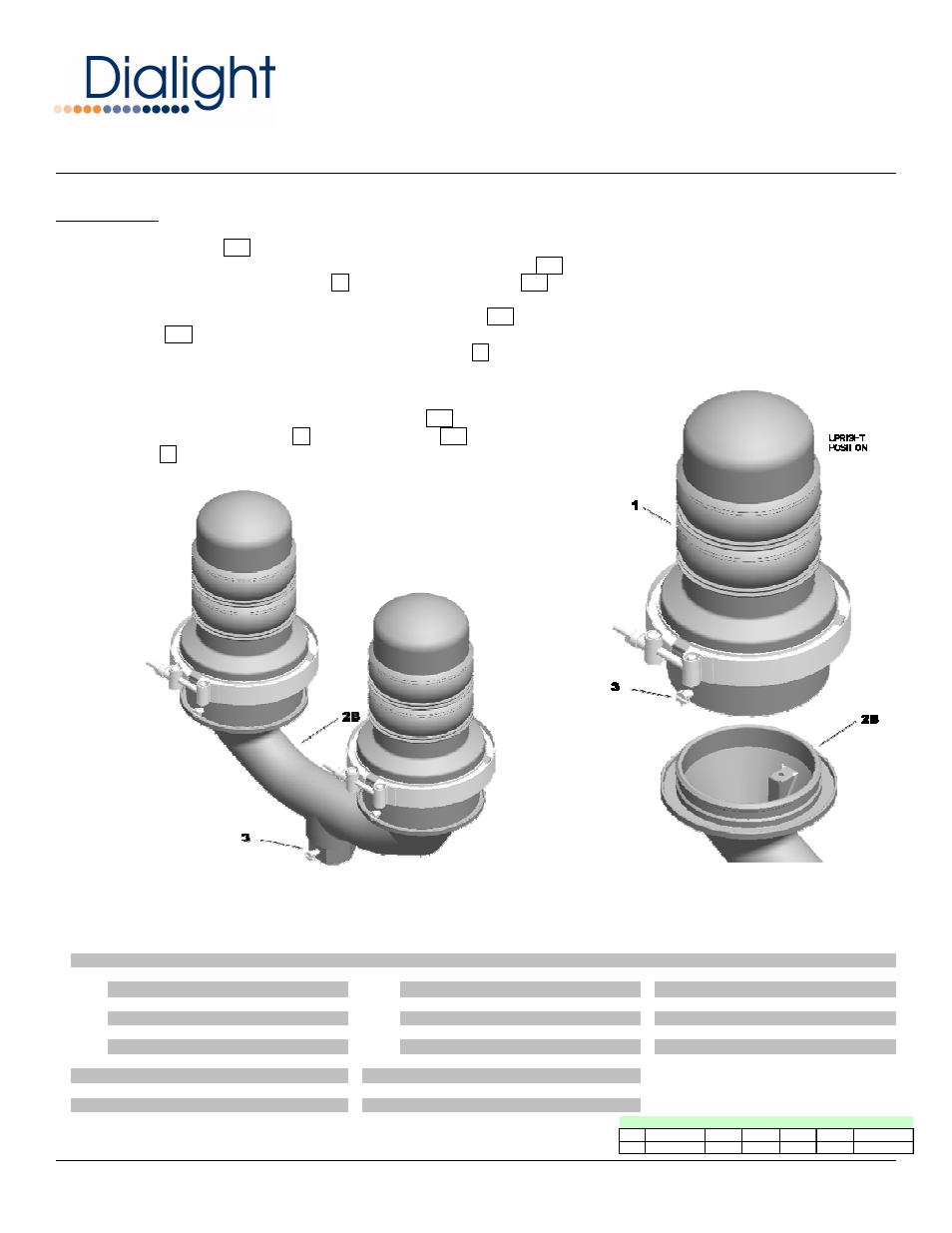

DUAL FIXTURE INSTALLATION STEPS:
•
The dual housing 2B has a 1” NPT [3/4" bushing] end to be assembled to conduit.
o Use a 1-1/2” wrench to attach and tighten the dual housing 2B to the conduit
o Tighten the holding screw 3 to secure the dual housing 2B in position.
o Remove reducing bushing if threading into 1” NPT conduit
•
Feed the supply wires through the conduit and dual housing 2B leaving approx 6” of wire for termination inside the dual
housing 2B .
•
Electrically connect the supply wires to the light assembly 1 wires
o Connect the light assembly wire (with voltage label) to the Hot AC or Positive [+] line
o Connect the light assembly wire [without label] to the Neutral AC or Negative [-] line
o Connect the grounding wire [from green screw] to the Ground line
•
Tuck the connected wires inside the dual housing. 2B .
•
Position each light assembly 1 on the dual housing 2B and use the holding
•
screws 3 to secure the light assembly in place
•
Restore power and verify operation
Please refer to product data sheet for electrical parameters if required
U.S. Patent 6,425,678
Item P art No. Descrip tion Item Part No. Description P art No. Descr iption
860 -1x01 Light A ss'y 12 0V 860- 3x03 L ight A ss'y 12V , Low W att 860-4 000 Glass Lens Rep lace [Red]
860 -1x02 Light A ss'y 24 0V 860- 4x02 L ight A ss'y 240 V, 50 cd 860-4 001 Glass Lens Rep lace [Clear]
860 -1x03 Light A ss'y 12 V 860- 5x02 L ight A ss'y 240 V, 10 cd 860-4 002 Glass Lens Rep lace [G reen]
860 -1x04 Light A ss'y 48 V 860- 6x01 L ight A ss'y 120 V, Canada 860-4 003 Glass Lens Rep lace [Y ellow]
860 -1x05 Light A ss'y 24 V 860- 7x02 L ight A ss'y 240 V, A ustralia 860-4 004 Glass Lens Rep lace [B lue]
860 -1x06 Light A ss'y 10 -27V 860- 8x04 L ight A ss'y 48V , Sweden
2 A 8 60-10 00 Single W ire Hou sin g 3 -- - 1 /4- 20 x 1 /2 Holding Scr ew
2 B 8 60-20 00 Dual W ire Housing 4 -- - 1 " NPT Plug
5 -- - 1 " to 3/4" Bushin g
Replace the X with color letter required … B =Blu e G=Green R=Red W = Wh ite Y= Yellow
1 1
PA RTS LIS T
Replaced glass lens wil l void warranties
